- Rigid chassis
- WhichTractor size: High-power
- Not independently tested
- 1978–1984
- 1,255 built
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

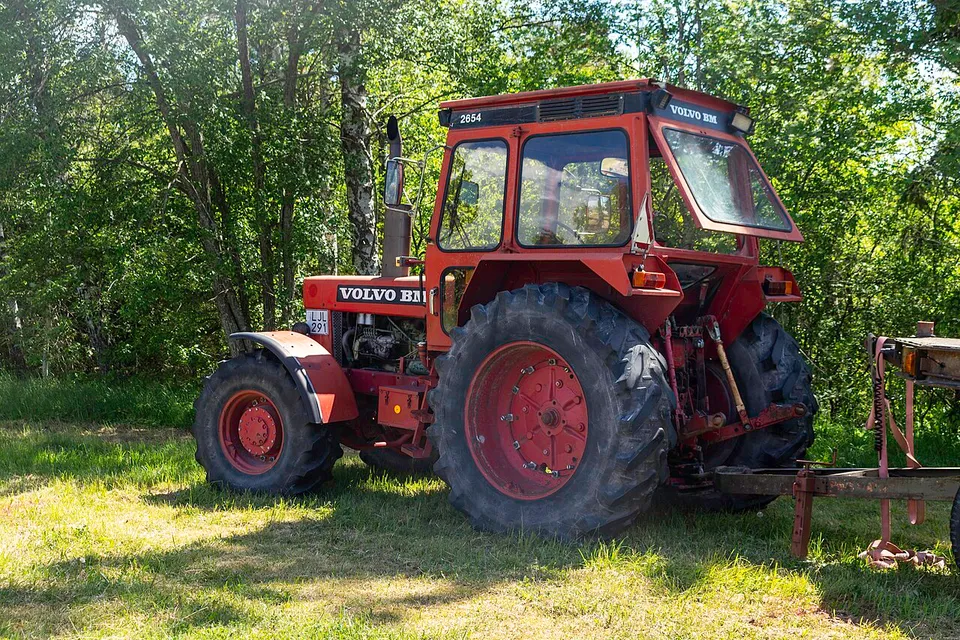

VOLVO-BM 2654 Full specifications
VOLVO-BM TD 60 six-cylinder diesel. The manufacturer claimed 138 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
138 hp
103 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Bolinder-Munktell T 2654”, claimed
- Weight
- 16,535 lb
- 3-point lift
- 7,496 lb
- Hyd. flow
- 12.4 gpm
- Top speed
- 18.6 mph
VOLVO-BM 2654 specs: key facts
The VOLVO-BM 2654 was built from 1978 to 1984.
The VOLVO-BM 2654 has a claimed engine power (gross or net not stated) of 103 kW (138 hp); it has no measured PTO figure.
The VOLVO-BM 2654 is four-wheel drive (4WD).
The VOLVO-BM 2654 has a VOLVO-BM TD 60 engine, a 6-cylinder 5.48 L diesel unit.Source 1
The VOLVO-BM 2654 weighs 7,500 kg (16,535 lb) unladen.
The VOLVO-BM 2654 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the VOLVO-BM 2654 lifts 3,400 kg (7,496 lb) at the lower-link ends.
The hydraulic pump of the VOLVO-BM 2654 delivers 47.0 L/min (12.4 gpm).
Source · Traktorenlexikon, “Bolinder-Munktell T 2654”
How much horsepower does a 2654 have?
The only figure for the 2654 is 138 hp (103 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Bolinder-Munktell T 2654”
What engine is in a 2654?
A 2654 has a VOLVO-BM TD 60, a 6-cylinder 5.48 L diesel engine.
| Make & model | VOLVO-BM TD 60 |
|---|---|
| Cylinders | 6, liquid-cooledSource 2 |
| Displacement | 334.6 ci · 5.48 L |
| Max torque | 358 lb·ft · 485 N·m @ 1,600 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Bolinder-Munktell T 2650”
How much will a 2654 lift, and what is its hydraulic flow?
A 2654 lifts 7,496 lb (3,400 kg) at the lower-link ends.
| Pump flow | 12.4 gpm · 47.0 L/min |
|---|---|
| Lift at ends | 7,496 lb · 3,400 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 2,050 engine rpmEngages under load |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Bolinder-Munktell T 2654”
What transmission does a 2654 have?
Transmission specifications for the 2654 are below.
| Clutch | Pedal-operated dry multi-disc clutch |
|---|---|
| Brakes | Pedal-operated wet disc brakes acting on differential side shafts |
| Steering | Hydrostatic DANFOSS steering, type: ORBITROL |
| Top speed | 18.6 mph · 30 km/h |
Source · Traktorenlexikon, “Bolinder-Munktell T 2654”
How much does a 2654 weigh?
A 2654 weighs 16,535 lb (7,500 kg) unladen.
| Unladen weight | 16,535 lb · 7,500 kg |
|---|---|
| Wheelbase | 112.6 in · 2,860 mm |
| Length | 183.1 in · 4,650 mm |
| Width | 91.7 in · 2,330 mm |
| Height | 120.1 in · 3,050 mm |
| Ground clearance | 13.8 in · 350 mm |
| Front track | 68.5 in · 1,740 mm |
| Rear track | 70.9 in · 1,800 mm |
| Turning radius, braked | 16.7 ft · 5.10 m |
Source · Traktorenlexikon, “Bolinder-Munktell T 2654”
Which tractors compare with a 2654?
Within 10% of its 128 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- VOLVO-BM 2650128 hp PTO, claimed · 1978–1984Side by side with the 2654 →
- VOLVO-BM T 2650128 hp PTO, claimed · 1978–1984Side by side with the 2654 →
- VOLVO-BM T 2654128 hp PTO, claimed · 1978–1984Side by side with the 2654 →
- OLIVER 2155128.1 hp PTO, claimed · 1970–1972Side by side with the 2654 →
- Ford 9600 (A)128.4 hp PTO, claimed · 1972–1976Side by side with the 2654 →
- VOLVO-BM-VALMET Volvo 2005128.5 hp PTO, claimed · 1985–1987Side by side with the 2654 →
Everything else people ask
Is a 2654 two-wheel drive or four-wheel drive?
The VOLVO-BM 2654 is four-wheel drive (4WD).
What PTO does a 2654 have?
A 2654 has a independent 540/1000 rpm rear PTO on a 1 3/8"- 6 splines shaft.
Where this page comes from
Compiled from Traktorenlexikon, “Bolinder-Munktell T 2650”; and Traktorenlexikon, “Bolinder-Munktell T 2654”.
