- WhichTractor size: Utility
- No lab test on file
- 1969–1974
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

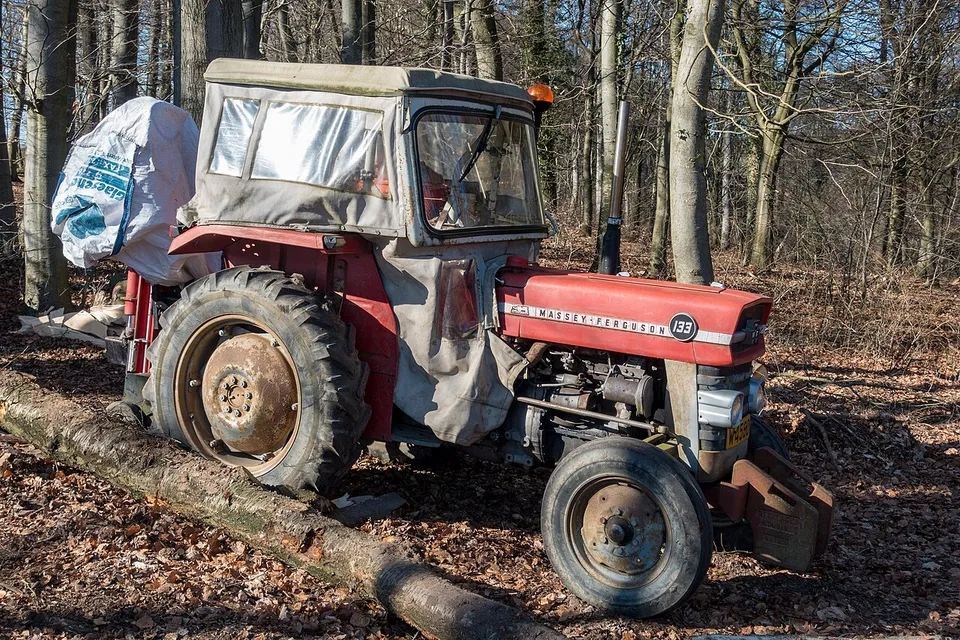

Massey Ferguson 133 specs: hp, weight, years
Perkins A 3.144 three-cylinder diesel. The manufacturer claimed 34.6 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
34.6 hp
25.8 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Massey Ferguson MF 133”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 4,090 lb
- 3-point lift
- 2,866 lb
- Hyd. flow
- 3.9 gpm
- Top speed
- 12.4 mph
Massey Ferguson 133 specs: key facts
The Massey Ferguson 133 was built from 1969 to 1974.
The Massey Ferguson 133 has a claimed engine power (gross or net not stated) of 25.8 kW (34.6 hp); it has no measured PTO figure.
The Massey Ferguson 133 is two-wheel drive (2WD).Source 2,Source 3
The Massey Ferguson 133 has a Perkins A 3.144 engine, a 3-cylinder 2.37 L diesel unit.
The Massey Ferguson 133 weighs 1,855 kg (4,090 lb) unladen.
The Massey Ferguson 133 has an independent rear PTO running at 540 rpm.Source 2,Source 3
The three-point hitch of the Massey Ferguson 133 lifts 1,300 kg (2,866 lb) at the lower-link ends.
The hydraulic pump of the Massey Ferguson 133 delivers 14.8 L/min (3.9 gpm).
Source · Traktorenlexikon, “Massey Ferguson MF 133”
How much horsepower does a 133 have?
The only figure for the 133 is 34.6 hp (25.8 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Massey Ferguson MF 133”
What engine is in a 133?
A 133 has a Perkins A 3.144, a 3-cylinder 2.37 L diesel engine.
| Make & model | Perkins A 3.144 |
|---|---|
| Cylinders | 3, liquid-cooled |
| Displacement | 144.3 ci · 2.37 L |
| Max torque | 108 lb·ft · 146 N·m @ 1,300 rpmSource 3Sources disagree104 lb·ft · 141 N·m (Traktorenlexikon, “Massey Ferguson MF 133 SUPER”)100 lb·ft · 135 N·m (Traktorenlexikon, “Massey Ferguson MF 133”) |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Massey Ferguson MF 133”
How much will a 133 lift, and what is its hydraulic flow?
A 133 lifts 2,866 lb (1,300 kg) at the lower-link ends of its Category 1 three-point hitch.
| Pump flow | 3.9 gpm · 14.8 L/min |
|---|---|
| Pressure | 2,589 psi · 178 barSource 2Sources disagree2,489 psi · 172 bar (Traktorenlexikon, “Massey Ferguson MF 133 V/S”)2,489 psi · 172 bar (Traktorenlexikon, “Massey Ferguson MF 133”) |
| Hitch category | Category 1 |
| Lift at ends | 2,866 lb · 1,300 kg |
| Rear PTO | 540 rpm @ 1,685 engine rpm |
| PTO shaft | 29 x 34,9 x 9,7 mm |
Source · Traktorenlexikon, “Massey Ferguson MF 133”
What transmission does a 133 have?
Transmission specifications for the 133 are below.
| Clutch | Pedal operated, dry and air-cooled MF dual clutch |
|---|---|
| Steering | Mechanical recirculating ball steering |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Massey Ferguson MF 133”
How much does a 133 weigh?
A 133 weighs 4,090 lb (1,855 kg) unladen.
| Unladen weight | 4,090 lb · 1,855 kg |
|---|---|
| Maximum permissible mass | 6,614 lb · 3,000 kg |
| Wheelbase | 72.0 in · 1,830 mm |
| Length | 122.0 in · 3,100 mm |
| Width | 66.1 in · 1,680 mm |
| Height | 60.2 in · 1,530 mm |
| Ground clearance | 11.8 in · 300 mm |
| Front track | 48.0–79.9 in · 1,220–2,030 mm |
| Rear track | 48.0–76.0 in · 1,220–1,930 mm |
| Turning radius, braked | 8.7 ft · 2.67 m |
Source · Traktorenlexikon, “Massey Ferguson MF 133”
What oil does a 133 take, and how much?
A 133 engine takes 6.9 qt (6.5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 6.9 qt · 6.5 LSource: Traktorenlexikon, “Massey Ferguson MF 133” · single source, not independently verified |
| Transmission | 29.6 qt · 28 LSource: Traktorenlexikon, “Massey Ferguson MF 133” · single source, not independently verified |
| Cooling system | 10.8 qt · 10.2 LSource: Traktorenlexikon, “Massey Ferguson MF 133” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 133?
Within 10% of its 34.6 hp of claimed engine power, the same type, and first built within 15 years of it.
- Renault 351M34.6 hp engine, claimed · 1977–1981Side by side with the 133 →
- Renault D 3534.6 hp engine, claimed · 1956–1960Side by side with the 133 →
- Renault R 304634.6 hp engine, claimed · 1954–1956Side by side with the 133 →
- Fiat 400 (DT)34.5 hp engine, claimed · 1968–1974Side by side with the 133 →
- ZETOR 3511/354534.5 hp engine, claimed · 1967–1972Side by side with the 133 →
- Warchalowski WT-3834.5 hp engine, claimed · 1962–1963Side by side with the 133 →
Common questions about the Massey Ferguson 133
Is a 133 two-wheel drive or four-wheel drive?
The Massey Ferguson 133 is two-wheel drive (2WD).
What PTO does a 133 have?
A 133 has a 540 rpm rear PTO on a 29 x 34,9 x 9,7 mm shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Massey Ferguson MF 133 SUPER”; Traktorenlexikon, “Massey Ferguson MF 133 V/S”; and Traktorenlexikon, “Massey Ferguson MF 133”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Massey Ferguson MF 133 — CC BY-SA 4.0, WIKIBOOKS-TL-75605 · revision 1024878. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Massey Ferguson MF 133 SUPER — CC BY-SA 4.0, WIKIBOOKS-TL-104101 · revision 996182. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Massey Ferguson MF 133 V/S — CC BY-SA 4.0, WIKIBOOKS-TL-104256 · revision 848610. Wikibooks contributors (Traktorenlexikon). Original document
