- Rigid chassis
- WhichTractor size: Standard-size
- No lab test on file
- 1978–1990
It sits on the standard-size/high-power boundary, so either size is a fair description. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

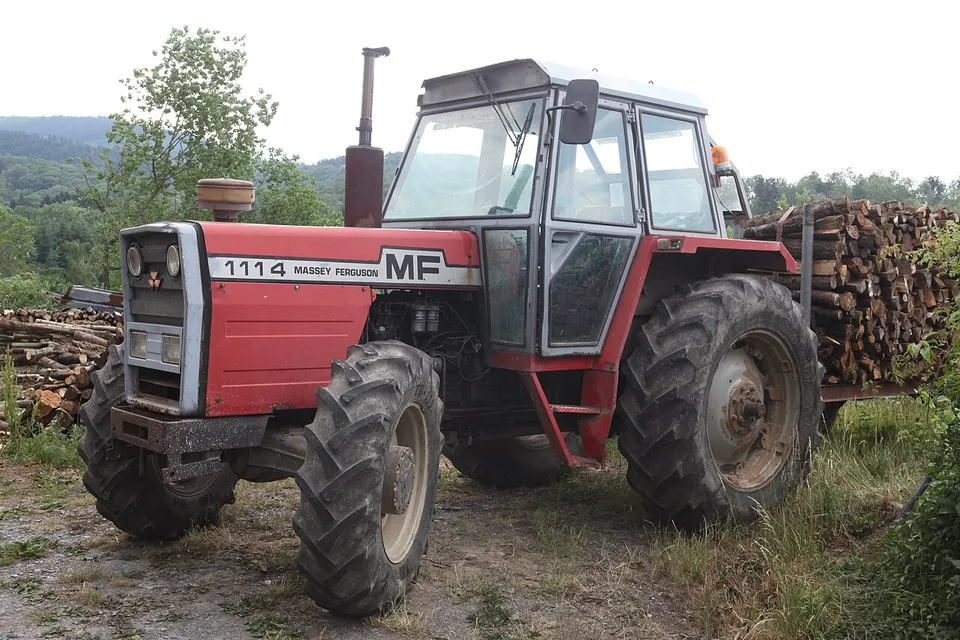

Massey Ferguson 1114 specs: hp, weight, years
Perkins A 6.354-4 six-cylinder diesel. The manufacturer claimed 109 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
109 hp
81 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Massey Ferguson MF 1114”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 10,692 lb
- 3-point lift
- 8,598 lb
- Top speed
- 15.5 mph
Massey Ferguson 1114 specs: key facts
The Massey Ferguson 1114 was built from 1978 to 1990.
The Massey Ferguson 1114 has a claimed engine power (gross or net not stated) of 81 kW (109 hp); it has no measured PTO figure.
The Massey Ferguson 1114 was offered in two-wheel-drive and four-wheel-drive versions.
The Massey Ferguson 1114 has a Perkins A 6.354-4 engine, a 6-cylinder 5.80 L diesel unit.Source 2
The Massey Ferguson 1114 weighs 4,850 kg (10,692 lb) unladen.
The Massey Ferguson 1114 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Massey Ferguson 1114 lifts 3,900 kg (8,598 lb) at the lower-link ends.
Source · Traktorenlexikon, “Massey Ferguson MF 1114”
.jpg){kind=link}
How much horsepower does an 1114 have?
The only figure for the 1114 is 109 hp (81 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Massey Ferguson MF 1114”
What engine is in an 1114?
An 1114 has a Perkins A 6.354-4, a 6-cylinder 5.80 L diesel engine.
| Make & model | Perkins A 6.354-4Source 2 |
|---|---|
| Cylinders | 6, liquid-cooledSource 2 |
| Displacement | 353.9 ci · 5.80 LSource 2 |
| Max torque | 273 lb·ft · 370 N·m @ 1,400 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Massey Ferguson MF 1114”
How much will an 1114 lift?
An 1114 lifts 8,598 lb (3,900 kg) at the lower-link ends of its Category 3 three-point hitch.
| Pressure | 2,418 psi · 166.7 bar |
|---|---|
| Hitch category | Category 3 |
| Lift at ends | 8,598 lb · 3,900 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 2,082 engine rpmEngages under load |
| PTO shaft | 1 3/4"-6 splines |
Source · Traktorenlexikon, “Massey Ferguson MF 1114”
What transmission does an 1114 have?
Transmission specifications for the 1114 are below.
| Clutch | Pedal-operated dry Luk double clutch with 330 mm diameter |
|---|---|
| Brakes | Pedal-operated wet Girling double-disc brake acting on the rear wheels |
| Steering | Hydraulic Danfoss-Orbitrol steering, type: OSP-B 100 with separate oil circuit |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Massey Ferguson MF 1114”
How much does an 1114 weigh?
An 1114 weighs 10,692 lb (4,850 kg) unladen.
| Unladen weight | 10,692 lb · 4,850 kgtwo-wheel-drive version |
|---|---|
| Wheelbase | 111.8 in · 2,840 mmtwo-wheel-drive version |
| Length | 185.0 in · 4,700 mm |
| Width | 98.4 in · 2,500 mm |
| Height | 114.2 in · 2,900 mm |
| Front track | 56.3–72.0 in · 1,430–1,830 mmtwo-wheel-drive version |
| Rear track | 72.8–90.6 in · 1,850–2,300 mm |
Source · Traktorenlexikon, “Massey Ferguson MF 1114”
What oil does an 1114 take, and how much?
An 1114 engine takes 16.9 qt (16.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 16.9 qt · 16.0 LSource: Traktorenlexikon, “Massey Ferguson MF 1114” · single source, not independently verified |
| Transmission | 89.8 qt · 85.0 LSource: Traktorenlexikon, “Massey Ferguson MF 1114” · single source, not independently verified |
| Final drives | 3.7 qt · 3.5 LSource: Traktorenlexikon, “Massey Ferguson MF 1114” · single source, not independently verified |
| Cooling system | 27.5 qt · 26.0 LSource: Traktorenlexikon, “Massey Ferguson MF 1114” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with an 1114?
Within 10% of its 111.0 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- International Harvester 1026110.7 hp PTO, claimed · 1970–1971Side by side with the 1114 →
- International Harvester Farmall 1026110.7 hp PTO, claimed · 1970–1971Side by side with the 1114 →
- Mercedes-Benz MB trac 1300110.2 hp PTO, claimed · 1976–1987Side by side with the 1114 →
- International Harvester Farmall 1066112.1 hp PTO, claimed · 1971–1976Side by side with the 1114 →
- International Harvester 3688112.4 hp PTO, claimed · 1981–1985Side by side with the 1114 →
- IMT 5130/5136112.9 hp PTO, claimed · 1982–1992Side by side with the 1114 →
Common questions about the Massey Ferguson 1114
Is an 1114 two-wheel drive or four-wheel drive?
The Massey Ferguson 1114 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does an 1114 have?
An 1114 has a independent 540/1000 rpm rear PTO on a 1 3/4"-6 splines shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Massey Ferguson MF 399”; and Traktorenlexikon, “Massey Ferguson MF 1114”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Massey Ferguson MF 1114 — CC BY-SA 4.0, WIKIBOOKS-TL-87004 · revision 992151. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Massey Ferguson MF 399 — CC BY-SA 4.0, WIKIBOOKS-TL-86702 · revision 1066509. Wikibooks contributors (Traktorenlexikon). Original document
