- Rigid chassis
- WhichTractor size: Standard-size
- No lab test on file
- 1964–1970
- 10 built
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

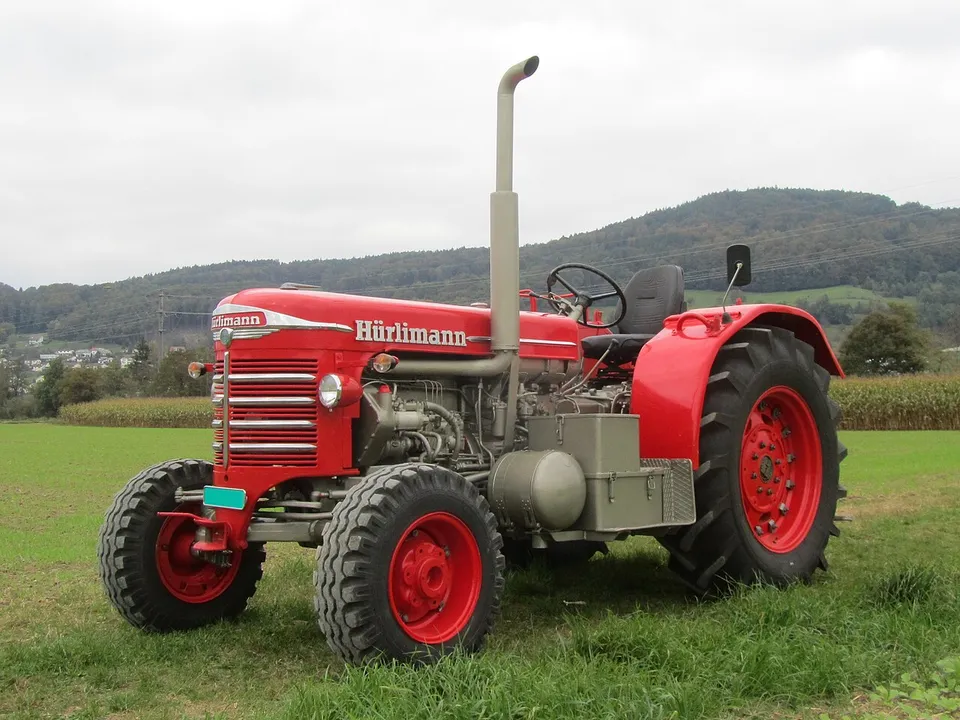

Hürlimann D 800 specs: hp, weight, years
Hürlimann D-800 four-cylinder diesel. The manufacturer claimed 92.7 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
92.7 hp
69.1 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Hürlimann D 800”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 11,574 lb
- 3-point lift
- 5,512 lb
- Top speed
- 12.4 mph
Hürlimann D 800 specs: key facts
The Hürlimann D 800 was built from 1964 to 1970.
The Hürlimann D 800 has a claimed engine power (gross or net not stated) of 69.1 kW (92.7 hp); it has no measured PTO figure.
The Hürlimann D 800 is two-wheel drive (2WD).
The Hürlimann D 800 has a Hürlimann D-800 engine, a 4-cylinder 6.12 L diesel unit.
The Hürlimann D 800 weighs 5,250 kg (11,574 lb) unladen.
The Hürlimann D 800 has a live rear PTO running at 540 rpm.
The three-point hitch of the Hürlimann D 800 lifts 2,500 kg (5,512 lb) at the lower-link ends.
Source · Traktorenlexikon, “Hürlimann D 800”
How does the D 800 compare with its class?
- Limitation:
A three-point lift at the lower links of 2,500 kg is low for its class — 35% below the median of 3,867 kg across the 266 machines within 10% of its power that hold this figure.
- Worth knowing:
An unladen mass of 5,250 kg is high for its class — 34% above the median of 3,915 kg across the 365 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 365 comparable records. How we work this out
How much horsepower does a D 800 have?
The only figure for the D 800 is 92.7 hp (69.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Hürlimann D 800”
What engine is in a D 800?
A D 800 has a Hürlimann D-800, a 4-cylinder 6.12 L diesel engine.
| Make & model | Hürlimann D-800 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 373.7 ci · 6.12 L |
| Max torque | 271 lb·ft · 368 N·m |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Hürlimann D 800”
How much will a D 800 lift?
A D 800 lifts 5,512 lb (2,500 kg) at the lower-link ends of its Category 2 three-point hitch.
| Hitch category | Category 2 |
|---|---|
| Lift at ends | 5,512 lb · 2,500 kg |
| Rear PTO | Live, engine-driven, 540 rpm |
| PTO shaft | 1 3/4"- 6 splines |
Source · Traktorenlexikon, “Hürlimann D 800”
What transmission does a D 800 have?
Transmission specifications for the D 800 are below.
| Clutch | Pedal operated dry Huerlimann double clutch |
|---|---|
| Brakes | Pedal operated combined internal shoe brake acting on the rear wheels |
| Steering | Hydraulic ZF spindle steering |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Hürlimann D 800”
How much does a D 800 weigh?
A D 800 weighs 11,574 lb (5,250 kg) unladen.
| Unladen weight | 11,574 lb · 5,250 kg |
|---|---|
| Wheelbase | 104.3 in · 2,650 mm |
| Length | 164.6 in · 4,180 mm |
| Width | 81.9 in · 2,080 mm |
| Height | 75.6 in · 1,920 mm |
| Front track | 63.8 in · 1,620 mmWikibooks gives one track for both axles |
| Rear track | 63.8 in · 1,620 mmWikibooks gives one track for both axles |
Source · Traktorenlexikon, “Hürlimann D 800”
What oil does a D 800 take, and how much?
Fluid capacities for the D 800 are below.
| System | Capacity |
|---|---|
| Cooling system | 30.1 qt · 28.5 LSource: Traktorenlexikon, “Hürlimann D 800” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a D 800?
Within 10% of its 89 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Fiat 1000 Super (DT)91 hp PTO, claimed · 1976–1979Side by side with the D 800 →
- Fiat 1000 Super (TD)90.7 hp PTO, claimed · 1976–1979Side by side with the D 800 →
- SOMECA 1000 Super (TD)90.7 hp PTO, claimed · 1976–1979Side by side with the D 800 →
- SOMECA 980 (TD)91.1 hp PTO, claimed · 1979–1983Side by side with the D 800 →
- Fendt 611 LS/LSA91.9 hp PTO, claimed · 1977–1985Side by side with the D 800 →
- Hürlimann D-310 Turbo (A)85.6 hp PTO, claimed · 1975Side by side with the D 800 →
Common questions about the Hürlimann D 800
Is a D 800 two-wheel drive or four-wheel drive?
The Hürlimann D 800 is two-wheel drive (2WD).
What PTO does a D 800 have?
A D 800 has a live 540 rpm rear PTO on a 1 3/4"- 6 splines shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Hürlimann D 800”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Hürlimann D 800 — CC BY-SA 4.0, WIKIBOOKS-TL-86785 · revision 1079037. Wikibooks contributors (Traktorenlexikon). Original document
