- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- from 2012
It sits on the utility/standard-size boundary, so either size is a fair description. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is
Fendt 313 Vario specs: hp, weight, years
- Weight
- 9,811 lb
- Top speed
- 24.9 mph
Fendt 313 Vario specs: key facts

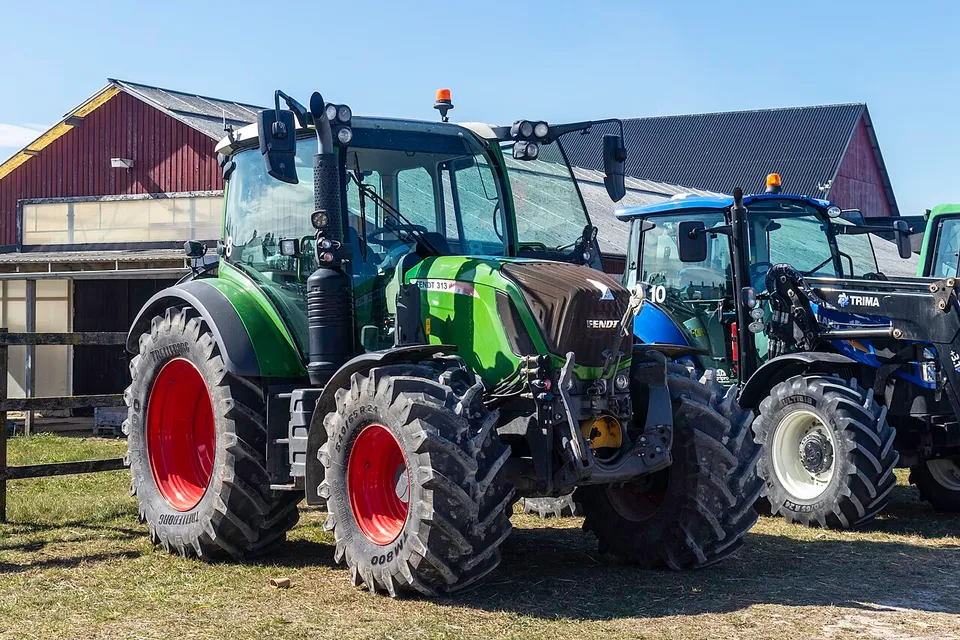

The Fendt 313 Vario was first built in 2012.
The Fendt 313 Vario is four-wheel drive (4WD).
The Fendt 313 Vario weighs 4,450 kg (9,811 lb) unladen.
Source · Traktorenlexikon, “Fendt 313 Vario”
How much horsepower does a 313 Vario have?
No sourced power figure for the 313 Vario is on record yet.
How much will a 313 Vario lift?
Hydraulic and PTO specifications for the 313 Vario are below.
| System | Load sensing |
|---|---|
| PTO shaft | 1 3/8"-6 splines |
Source · Traktorenlexikon, “Fendt 313 Vario”
What transmission does a 313 Vario have?
Transmission specifications for the 313 Vario are below.
| Brakes | Wet, integrated annular piston brake on the rear wheels |
|---|---|
| Steering | Hydrostatic steering |
| Top speed | 24.9 mph · 40 km/h |
Source · Traktorenlexikon, “Fendt 313 Vario”
How much does a 313 Vario weigh?
A 313 Vario weighs 9,811 lb (4,450 kg) unladen.
| Unladen weight | 9,811 lb · 4,450 kg |
|---|---|
| Maximum permissible mass | 18,739 lb · 8,500 kg |
| Wheelbase | 95.3 in · 2,420 mm |
| Length | 163.4 in · 4,150 mm |
| Width | 93.9 in · 2,385 mm |
| Height | 110.2 in · 2,800 mm |
| Ground clearance | 20.1 in · 510 mm |
| Front track | 71.7 in · 1,820 mm |
| Rear track | 70.9 in · 1,800 mm |
| Turning radius, braked | 12.8 ft · 3.90 m |
Source · Traktorenlexikon, “Fendt 313 Vario”
What oil does a 313 Vario take, and how much?
A 313 Vario engine takes 11.6 qt (11 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.6 qt · 11 LSource: Traktorenlexikon, “Fendt 313 Vario” · single source, not independently verified |
| Transmission | 37.0 qt · 35 LSource: Traktorenlexikon, “Fendt 313 Vario” · single source, not independently verified |
| Hydraulic | 63.4 qt · 60 LSource: Traktorenlexikon, “Fendt 313 Vario” · single source, not independently verified |
| Cooling system | 21.1 qt · 20 LSource: Traktorenlexikon, “Fendt 313 Vario” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 313 Vario?
Within 10% of its 116.9 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Case-IH MXU 125116.1 hp PTO, measured · 2003–2006Side by side with the 313 Vario →
- John Deere 7510115.1 hp PTO, measured · 1999–2002Side by side with the 313 Vario →
- Deutz-Fahr Agrotron K 610119 hp PTO, claimed · 2008–2013Side by side with the 313 Vario →
- Case-IH MXU 110114.4 hp PTO, measured · 2004–2006Side by side with the 313 Vario →
- Deutz-Fahr Agrotron 135 MK3120.2 hp PTO, claimed · 2000–2003Side by side with the 313 Vario →
- Deutz-Fahr Agrotron 135120.2 hp PTO, claimed · 1997–2000Side by side with the 313 Vario →
Common questions about the Fendt 313 Vario
Is a 313 Vario two-wheel drive or four-wheel drive?
The Fendt 313 Vario is four-wheel drive (4WD).
Sources and how this page was built
Compiled from Traktorenlexikon, “Fendt 313 Vario”.
