- Vehicle type: unspecified
- WhichTractor size: Standard-size
- No lab test on file
- 1932–1936
- 1,465 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

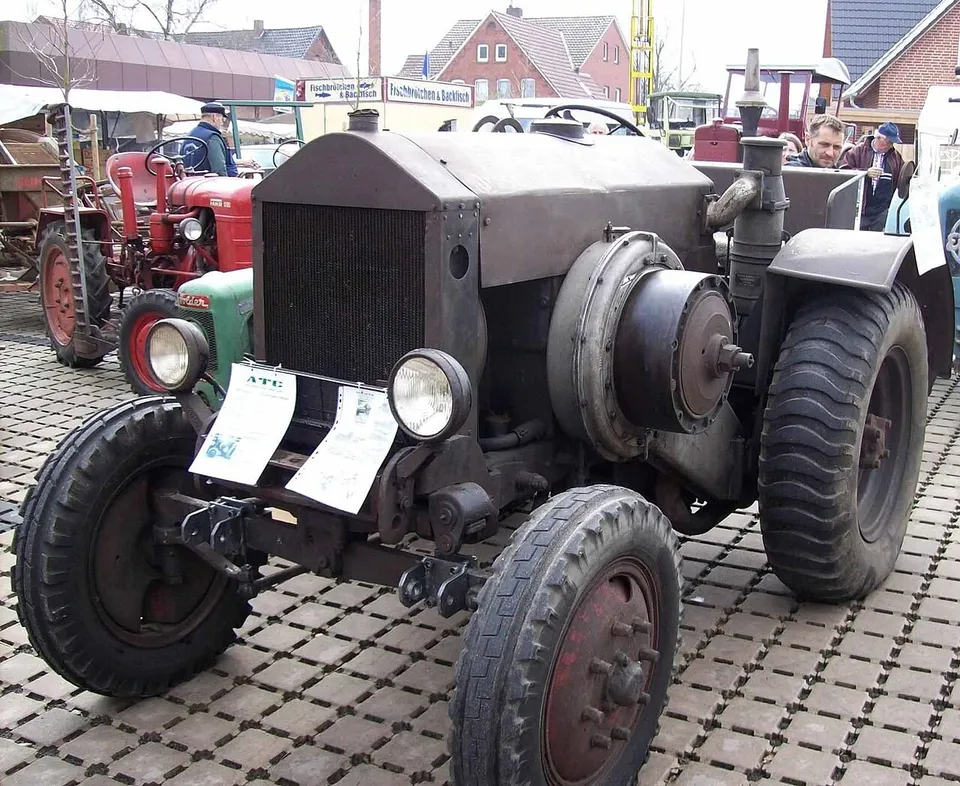

Deutz MTZ 320 specs: hp, weight, years
The manufacturer claimed 35.4 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
35.4 hp
26.4 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz MTZ 320”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 8,863 lb
- Top speed
- 11.3 mph
Deutz MTZ 320 specs: key facts
The Deutz MTZ 320 was built from 1932 to 1936.
The Deutz MTZ 320 has a claimed engine power (gross or net not stated) of 26.4 kW (35.4 hp); it has no measured PTO figure.
The Deutz MTZ 320 is two-wheel drive (2WD).
The Deutz MTZ 320 weighs 4,020 kg (8,863 lb) unladen.
Source · Traktorenlexikon, “Deutz MTZ 320”
How does the Deutz MTZ 320 compare with its class?
- Limitation:
Three forward gears is low for its class — 50% below the median of 6 across the 159 machines within 10% of its power that hold this figure.
- Worth knowing:
An unladen mass of 4,020 kg is high for its class — 133% above the median of 1,723 kg across the 159 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 159 comparable records. How we work this out
How much horsepower does a Deutz MTZ 320 have?
The only figure for the Deutz MTZ 320 is 35.4 hp (26.4 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz MTZ 320”
What transmission does a Deutz MTZ 320 have?
Transmission specifications for the Deutz MTZ 320 are below.
| Steering | Mechanical worm steering in conjunction with worm segment |
|---|---|
| Top speed | 11.3 mph · 18.2 km/h |
Source · Traktorenlexikon, “Deutz MTZ 320”
How much does a Deutz MTZ 320 weigh?
A Deutz MTZ 320 weighs 8,863 lb (4,020 kg) unladen.
| Unladen weight | 8,863 lb · 4,020 kg |
|---|---|
| Wheelbase | 70.1 in · 1,780 mm |
| Length | 116.1 in · 2,950 mm |
| Width | 72.4 in · 1,840 mm |
| Height | 74.8 in · 1,900 mm |
| Ground clearance | 13.8 in · 350 mm |
| Front track | 57.9 in · 1,470 mm |
| Rear track | 59.8 in · 1,520 mm |
Source · Traktorenlexikon, “Deutz MTZ 320”
Which tractors compare with a Deutz MTZ 320?
Within 10% of its 35.4 hp of claimed engine power, the same type, and first built within 15 years of it.
- Hanomag RD 3635.4 hp engine, claimed · 1931–1936Side by side with the Deutz MTZ 320 →
- Hürlimann D 10035.5 hp engine, claimed · 1946–1954Side by side with the Deutz MTZ 320 →
- John Deere Model G35.9 hp engine, claimed · 1937–1953Side by side with the Deutz MTZ 320 →
- MASSEY-HARRIS 20236.5 hp engine, claimed · 1940–1942Side by side with the Deutz MTZ 320 →
- Lanz FMD37.3 hp engine, claimed · 1921–1925Side by side with the Deutz MTZ 320 →
- J.I. Case Modell-DC33.0 hp engine, claimed · 1939–1953Side by side with the Deutz MTZ 320 →
Common questions about the Deutz MTZ 320
Is a Deutz MTZ 320 two-wheel drive or four-wheel drive?
The Deutz MTZ 320 is two-wheel drive (2WD).
Sources and how this page was built
Compiled from Traktorenlexikon, “Deutz MTZ 320”.
