- Rigid chassis
- WhichTractor size: Standard-size
- Not independently tested
- 1968–1970
- 4,500 built
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

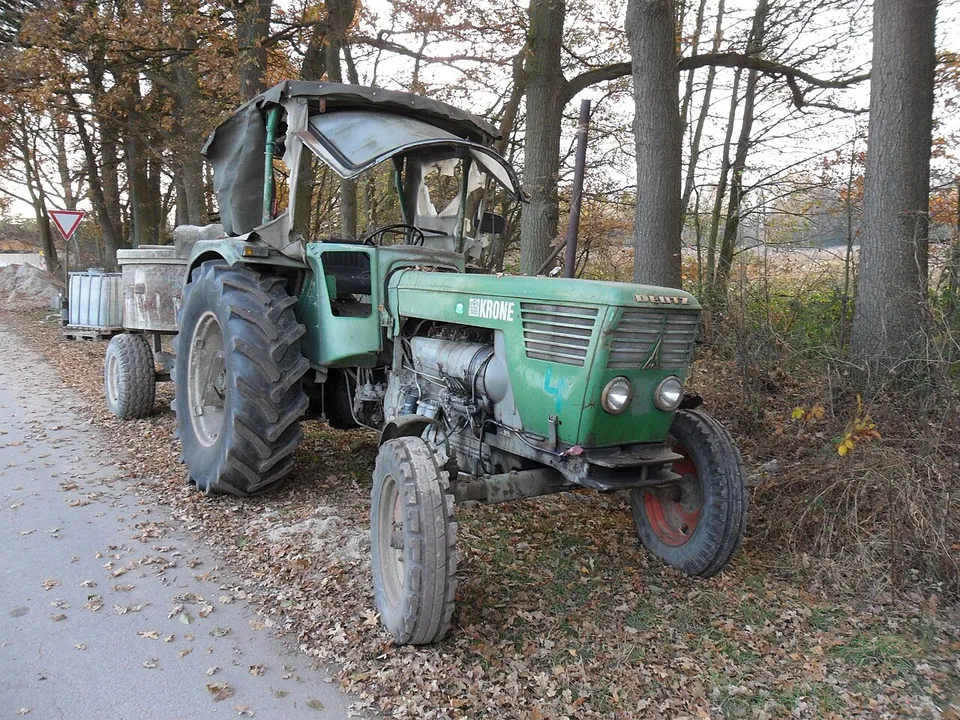

Deutz D 7506 Full specifications
KHD F6L 912 six-cylinder diesel. The manufacturer claimed 74 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
74 hp
55 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz D 7506”, claimed
- Weight
- 6,956 lb
- 3-point lift
- 4,630 lb
- Hyd. flow
- 6.0 gpm
- Top speed
- 18.6 mph
Deutz D 7506 specs: key facts
The Deutz D 7506 was built from 1968 to 1970.
The Deutz D 7506 has a claimed engine power (gross or net not stated) of 55 kW (74 hp); it has no measured PTO figure.
The Deutz D 7506 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
The Deutz D 7506 has a KHD F6L 912 engine, a 6-cylinder 5.65 L diesel unit.Source 2
The Deutz D 7506 weighs 3,155 kg (6,956 lb) unladen.
The Deutz D 7506 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Deutz D 7506 lifts 2,100 kg (4,630 lb) at the lower-link ends.
The hydraulic pump of the Deutz D 7506 delivers 22.8 L/min (6.0 gpm).
Source · Traktorenlexikon, “Deutz D 7506”
How much horsepower does a D 7506 have?
The only figure for the D 7506 is 74 hp (55 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz D 7506”
What engine is in a D 7506?
A D 7506 has a KHD F6L 912, a 6-cylinder 5.65 L diesel engine.
| Make & model | KHD F6L 912Source 2 |
|---|---|
| Cylinders | 6, air-cooledSource 2 |
| Displacement | 344.9 ci · 5.65 LSource 2 |
| Max torque | 214 lb·ft · 290 N·m @ 1,205 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Deutz D 7506”
How much will a D 7506 lift, and what is its hydraulic flow?
A D 7506 lifts 4,630 lb (2,100 kg) at the lower-link ends.
| Pump flow | 6.0 gpm · 22.8 L/min |
|---|---|
| Pressure | 2,538 psi · 175 bar |
| Lift at ends | 4,630 lb · 2,100 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm |
| PTO shaft | 29 x 34,9 x 8,7 mm (Form-A) |
Source · Traktorenlexikon, “Deutz D 7506”
What transmission does a D 7506 have?
Transmission specifications for the D 7506 are below.
| Clutch | Two-stage pedal operated dry Walterscheid double clutch |
|---|---|
| Steering | Mechanical ZF Gemmer steering |
| Top speed | 18.6 mph · 30 km/h |
Source · Traktorenlexikon, “Deutz D 7506”
How much does a D 7506 weigh?
A D 7506 weighs 6,956 lb (3,155 kg) unladen.
| Unladen weight | 6,956 lb · 3,155 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 12,787 lb · 5,800 kg |
| Maximum front axle load | 4,211 lb · 1,910 kg |
| Maximum rear axle load | 9,259 lb · 4,200 kg |
| Wheelbase | 100.4 in · 2,550 mm |
| Length | 161.0 in · 4,090 mm |
| Width | 78.1 in · 1,985 mmtwo-wheel-drive version |
| Height | 70.9 in · 1,800 mmtwo-wheel-drive version |
| Ground clearance | 20.5 in · 520 mmtwo-wheel-drive version |
| Front track | 55.9–75.6 in · 1,420–1,920 mmtwo-wheel-drive version |
| Rear track | 59.8–71.7 in · 1,520–1,820 mmtwo-wheel-drive version |
| Turning radius, braked | 13.5 ft · 4.10 m |
Source · Traktorenlexikon, “Deutz D 7506”
Which tractors compare with a D 7506?
Within 10% of its 70.4 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- Renault 851 (S)70.4 hp PTO, claimed · 1974–1989Side by side with the D 7506 →
- Renault 851-4 (S)70.4 hp PTO, claimed · 1974–1989Side by side with the D 7506 →
- Leyland 28270.8 hp PTO, claimed · 1979–1981Side by side with the D 7506 →
- Massey Ferguson MF 178 (A)71.3 hp PTO, claimed · 1968–1971Side by side with the D 7506 →
- Massey Ferguson MF 194 (A)71.5 hp PTO, claimed · 1980–1983Side by side with the D 7506 →
- Lamborghini R-485 (DT)71.8 hp PTO, claimed · 1971–1973Side by side with the D 7506 →
Everything else people ask
Is a D 7506 two-wheel drive or four-wheel drive?
The Deutz D 7506 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
What PTO does a D 7506 have?
A D 7506 has a independent 540/1000 rpm rear PTO on a 29 x 34,9 x 8,7 mm (Form-A) shaft.
