- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1971–1976
- 16,004 built
WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

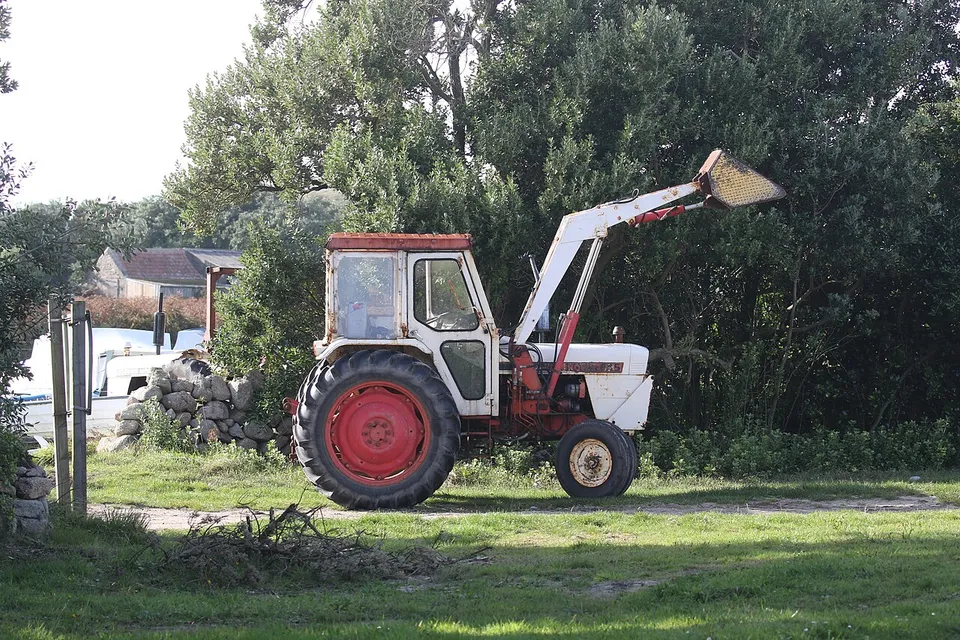

David Brown 995 specs: hp, weight, years
DAVID BROWN AD 4/55051 four-cylinder diesel. The manufacturer claimed 61.2 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
61.2 hp
45.6 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “David Brown 995”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 5,754 lb
- Hyd. flow
- 7.4 gpm
- Top speed
- 15.5 mph
David Brown 995 specs: key facts
The David Brown 995 was built from 1971 to 1976.
The David Brown 995 has a claimed engine power (gross or net not stated) of 45.6 kW (61.2 hp); it has no measured PTO figure.
The David Brown 995 is two-wheel drive (2WD).
The David Brown 995 has a DAVID BROWN AD 4/55051 engine, a 4-cylinder 3.59 L diesel unit.Source 2
The David Brown 995 weighs 2,610 kg (5,754 lb) unladen.
The David Brown 995 has a rear PTO running at 540 rpm.
The hydraulic pump of the David Brown 995 delivers 28.2 L/min (7.4 gpm).
Source · Traktorenlexikon, “David Brown 995”
How much horsepower does a 995 have?
The only figure for the 995 is 61.2 hp (45.6 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “David Brown 995”
What engine is in a 995?
A 995 has a DAVID BROWN AD 4/55051, a 4-cylinder 3.59 L diesel engine.
| Make & model | DAVID BROWN AD 4/55051Source 2 |
|---|---|
| Cylinders | 4, liquid-cooledSource 2 |
| Displacement | 219.3 ci · 3.59 LSource 2 |
| Max torque | 160 lb·ft · 217 N·m @ 1,400 rpm |
| Injection | Direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “David Brown 995”
How much will a 995 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the 995 are below.
| Pump flow | 7.4 gpm · 28.2 L/min |
|---|---|
| Rear PTO | transmission-driven, 540 rpm @ 1,828 engine rpm |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “David Brown 995”
What transmission does a 995 have?
Transmission specifications for the 995 are below.
| Clutch | Pedal operated dry single disc clutch |
|---|---|
| Steering | Mechanical recirculating ball steering |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “David Brown 995”
How much does a 995 weigh?
A 995 weighs 5,754 lb (2,610 kg) unladen.
| Unladen weight | 5,754 lb · 2,610 kg |
|---|---|
| Wheelbase | 82.0 in · 2,083 mm |
| Length | 130.0 in · 3,302 mm |
| Width | 67.0 in · 1,702 mm |
| Height | 99.0 in · 2,515 mm |
| Ground clearance | 20.9 in · 530 mm |
| Front track | 52.0–72.0 in · 1,321–1,829 mm |
| Rear track | 52.0–76.0 in · 1,321–1,930 mm |
| Turning radius, braked | 10.8 ft · 3.28 m |
Source · Traktorenlexikon, “David Brown 995”
What oil does a 995 take, and how much?
A 995 engine takes 7.8 qt (7.39 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 7.8 qt · 7.39 LSource: Traktorenlexikon, “David Brown 995” · single source, not independently verified |
| Transmission | 28.5 qt · 27.0 LSource: Traktorenlexikon, “David Brown 995” · single source, not independently verified |
| Final drives | 2.4 qt · 2.27 LSource: Traktorenlexikon, “David Brown 995” · single source, not independently verified |
| Cooling system | 14.4 qt · 13.6 LSource: Traktorenlexikon, “David Brown 995” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 995?
Within 10% of its 51.9 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- David Brown 996 (A)51.9 hp PTO, claimed · 1971–1976Side by side with the 995 →
- Massey Ferguson 56552.0 hp PTO, claimed · 1976–1982Side by side with the 995 →
- Massey Ferguson 26551.7 hp PTO, claimed · 1975–1985Side by side with the 995 →
- IMT 577 (DV)52.1 hp PTO, claimed · 1981–1993Side by side with the 995 →
- Deutz D 600552.2 hp PTO, claimed · 1966–1967Side by side with the 995 →
- Leyland 26252.3 hp PTO, claimed · 1975–1980Side by side with the 995 →
Common questions about the David Brown 995
Is a 995 two-wheel drive or four-wheel drive?
The David Brown 995 is two-wheel drive (2WD).
What PTO does a 995 have?
A 995 has a 540 rpm rear PTO on a 1 3/8"- 6 splines shaft.
What serial numbers does a 995 carry?
The source prints serial numbers 920001 to 936004 for the type 995/1. It does not say whether that is the tractor’s or the engine’s number, and we never work out a year from a serial number.
Sources and how this page was built
Compiled from Traktorenlexikon, “David Brown 995”; and Traktorenlexikon, “David Brown 996”.
