- Rigid chassis
- WhichTractor size: Utility
- Lab tested ×1
- 1998–2000
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

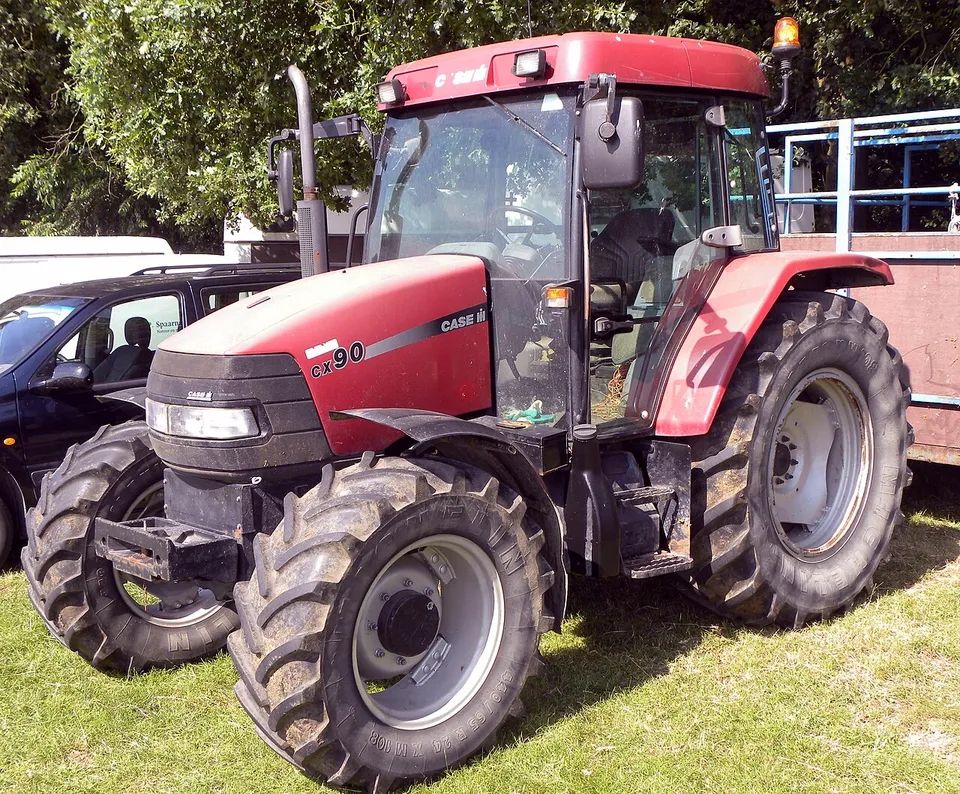

Case-IH CX 90 specs: hp, weight, years
PERKINS-FASTRAM 1004-40 Turbo-HR four-cylinder diesel or Perkins 1004-4T HR. The manufacturer claimed 88.8 horsepower. The only laboratory test on record is of one version: OECD Test 1898 measured 81.1 hp at the PTO of the CX 90 (4 WD). Compared at the engine's rated speed, where the brochure figure is quoted, the shaft gave 79.7 hp — 10.3% below the claim.
Engine power, claimed · gross or net not stated
88.8 hp
66.2 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Case-IH CX90”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 8,168 lb
- 3-point lift
- 6,552 lb
- Hyd. flow
- 17.0 gpm
- Top speed
- 18.6–24.9 mph
Case-IH CX 90 specs: key facts
The Case-IH CX 90 was built from 1998 to 2000.
Only one version of the Case-IH CX 90 has a laboratory test on record: the CX 90 (4 WD) produced 60.5 kW (81.1 hp) at the PTO, measured on OECD Test 1898.Source 2
The Case-IH CX 90 has a claimed engine power (gross or net not stated) of 66.2 kW (88.8 hp); it has no measured PTO figure.
The Case-IH CX 90 is four-wheel drive (4WD).Source 2
The Case-IH CX 90 has a PERKINS-FASTRAM 1004-40 Turbo-HR engine, a 4-cylinder 3.99 L diesel unit.Source 3
The Case-IH CX 90 weighs 3,705 kg (8,168 lb) unladen.
The Case-IH CX 90 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Case-IH CX 90 lifts 2,972 kg (6,552 lb) at the lower-link ends.
The hydraulic pump of the Case-IH CX 90 delivers 64.3 L/min (17.0 gpm).
Source · Traktorenlexikon, “Case-IH CX90”
How does the CX 90 compare with its class?
- Limitation:
Eight forward gears is low for its class — 33% below the median of 12 across the 360 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 366 comparable records. How we work this out
How much horsepower does a CX 90 have?
The only laboratory test on record is of one version. OECD Test 1898 measured 81.1 hp at the PTO of the CX 90 (4 WD). For the CX 90 as a whole the figure is the 88.8 hp claimed for the engine, which is not power at the shaft.
Sources · Traktorenlexikon, “Case-IH CX90”; OECD test report 1898, 2000
What engine is in a CX 90?
A CX 90 has a PERKINS-FASTRAM 1004-40 Turbo-HR, a 4-cylinder 3.99 L diesel engine. CX 90 (4 WD) tractors have a Perkins 1004-4T HR.
| Make & model | PERKINS-FASTRAM 1004-40 Turbo-HR |
|---|---|
| Cylinders | 4, liquid-cooledSource 4 |
| Displacement | 243.5 ci · 3.99 L |
| Max torque | 235 lb·ft · 319 N·m @ 1,400 rpmSource 4 |
| Electrical system | 12 VSource 4 |
Source · Traktorenlexikon, “Case-IH CX80”
How much will a CX 90 lift, and what is its hydraulic flow?
A CX 90 lifts 6,552 lb (2,972 kg) at the lower-link ends.
| Pump flow | 17.0 gpm · 64.3 L/min |
|---|---|
| Pressure | 2,698 psi · 186 bar |
| Lift at ends | 6,552 lb · 2,972 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 1,994 engine rpmEngages under load |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Case-IH CX90”
What transmission does a CX 90 have?
Transmission specifications for the CX 90 are below.
| Clutch | Pedal-operated, dry single-plate clutch |
|---|---|
| Brakes | Pedal-operated, hydraulic wet CASE-IH full disc brake acting on differential half-shafts |
| Steering | Hydrostatic Danfoss steering |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Case-IH CX90”
How much does a CX 90 weigh?
A CX 90 weighs 8,168 lb (3,705 kg) unladen.
| Unladen weight | 8,168 lb · 3,705 kg |
|---|---|
| Maximum permissible mass | 13,228 lb · 6,000 kg |
| Wheelbase | 92.8 in · 2,356 mm |
| Length | 156.7 in · 3,980 mm |
| Width | 84.6 in · 2,150 mm |
| Height | 99.2 in · 2,520 mm |
| Ground clearance | 13.0 in · 330 mm |
| Front track | 53.7–76.0 in · 1,364–1,930 mm |
| Rear track | 55.9–75.7 in · 1,420–1,922 mm |
| Turning radius, braked | 14.7 ft · 4.48 m |
Source · Traktorenlexikon, “Case-IH CX90”
What oil does a CX 90 take, and how much?
A CX 90 engine takes 9.3 qt (8.8 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 9.3 qt · 8.8 LSource: Traktorenlexikon, “Case-IH CX90” · single source, not independently verified |
| Transmission & hydraulic | 39.1 qt · 37.0 LSource: Traktorenlexikon, “Case-IH CX90” · single source, not independently verified |
| Front axle | 5.8 qt · 5.5 LSource: Traktorenlexikon, “Case-IH CX90” · single source, not independently verified |
| Cooling system | 18.5 qt · 17.5 LSource: Traktorenlexikon, “Case-IH CX90” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
How much fuel does a CX 90 burn per hour?
Measured on OECD Test 1898 (tested as the CX 90 (4 WD)), at each condition the laboratory recorded.
Cost per hour = fuel used per hour × your fuel price (per litre, or per US gallon for the gal/h figure).
| Test condition | Fuel per hour |
|---|---|
| Maximum PTO powerPTO 60.5 kW (81.1 hp) at 1,000 rpm | 18.00 L/h 4.76 gal/h |
| Rated engine speedPTO 59.4 kW (79.7 hp) at 1,100 rpm | 18.81 L/h 4.97 gal/h |
| Standard PTO speedPTO 60.5 kW (81.1 hp) at 999 rpm | 18.01 L/h 4.76 gal/h |
| 75% load, 50% load | Not on record for this test |
Source · OECD Test 1898
Which tractors compare with a CX 90?
Within 10% of its 88.8 hp of claimed engine power, the same type, and first built within 15 years of it.
- Case-IH MX 90C88.8 hp engine, claimed · 1998–2000Side by side with the CX 90 →
- Fiat TS 100 (DT)88.8 hp engine, claimed · 1997–2003Side by side with the CX 90 →
- New Holland TS 100 (A)88.8 hp engine, claimed · 1997–2003Side by side with the CX 90 →
- VALMET 6350 HiTech88.8 hp engine, claimed · 1999–2006Side by side with the CX 90 →
- VALMET 90088.8 hp engine, claimed · 1997–2002Side by side with the CX 90 →
- Massey Ferguson 6140 (A)88.8 hp engine, claimed · 1995–1999Side by side with the CX 90 →
Common questions about the Case-IH CX 90
Is a CX 90 two-wheel drive or four-wheel drive?
The Case-IH CX 90 is four-wheel drive (4WD).
What PTO does a CX 90 have?
A CX 90 has a independent 540/1000 rpm rear PTO on a 1 3/8"- 6 splines shaft.
