  • Articulated
  • WhichTractor size: High-power
  • Not independently tested
  • 1990–1995

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Case-IH 9270 Full specifications

CUMMINS NTA-855 A six-cylinder diesel. The manufacturer claimed 330.4 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

330.4 hp

246.4 kW as stated by the source

Not independently tested

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Case-IH 9270”, claimed

Weight
34,042 lb
3-point lift
24,011 lb
Hyd. flow
30.3 gpm
Top speed
18.6 mph

Case-IH 9270 specs: key facts

  • The Case-IH 9270 was built from 1990 to 1995.

  • The Case-IH 9270 has a claimed engine power (gross or net not stated) of 246.4 kW (330.4 hp); it has no measured PTO figure.

  • The Case-IH 9270 is four-wheel drive (4WD).

  • The Case-IH 9270 has a CUMMINS NTA-855 A engine, a 6-cylinder 10.02 L diesel unit.

  • The Case-IH 9270 weighs 15,441 kg (34,042 lb) unladen.

  • The Case-IH 9270 has a rear PTO running at 1000 rpm.

  • The three-point hitch of the Case-IH 9270 lifts 10,891 kg (24,011 lb) at the lower-link ends.

  • The hydraulic pump of the Case-IH 9270 delivers 114.7 L/min (30.3 gpm).

Source · Traktorenlexikon, “Case-IH 9270”

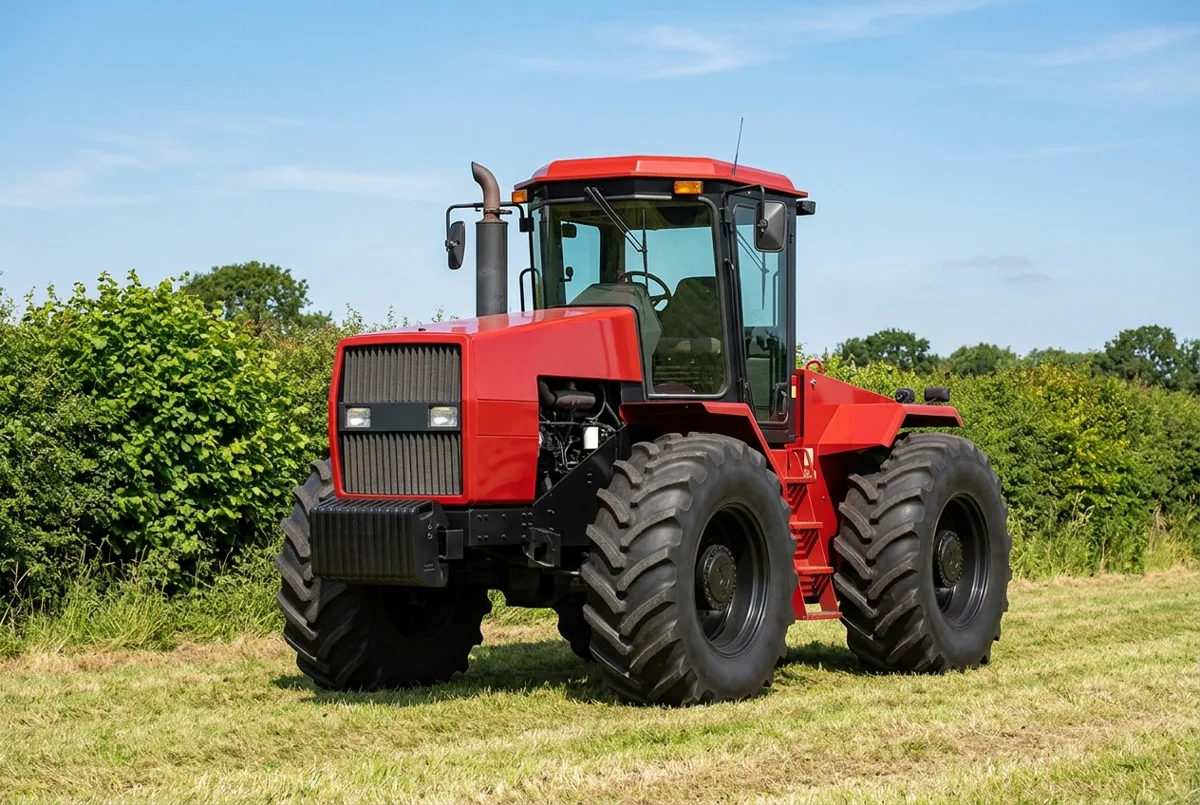

Illustration, not a photograph: Case-IH 9270, drawn from the specification record
Illustration — not a photograph

How much horsepower does a 9270 have?

The only figure for the 9270 is 330.4 hp (246.4 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
330.4 hp

Source · Traktorenlexikon, “Case-IH 9270”

What engine is in a 9270?

A 9270 has a CUMMINS NTA-855 A, a 6-cylinder 10.02 L diesel engine.

Engine — 9270 engine specifications
Make & modelCUMMINS NTA-855 A
Cylinders6, liquid-cooled
Displacement611.2 ci · 10.02 L
Max torque1,115 lb·ft · 1,512 N·m @ 1,292 rpm
Electrical system12 V

Source · Traktorenlexikon, “Case-IH 9270”

How much will a 9270 lift, and what is its hydraulic flow?

A 9270 lifts 24,011 lb (10,891 kg) at the lower-link ends of its Category 3 three-point hitch.

Hydraulics & PTO — 9270 hydraulics and PTO specifications
Pump flow30.3 gpm · 114.7 L/min
Pressure2,553 psi · 176 bar
Hitch categoryCategory 3
Lift at ends24,011 lb · 10,891 kg
Rear PTO1000 rpm
PTO shaft1 3/4"- 20 teilig

Source · Traktorenlexikon, “Case-IH 9270”

What transmission does a 9270 have?

Transmission specifications for the 9270 are below.

Transmission — 9270 transmission specifications
ClutchOil-immersed U.V.C. multi-disc clutch
Top speed18.6 mph · 30 km/h

Source · Traktorenlexikon, “Case-IH 9270”

How much does a 9270 weigh?

A 9270 weighs 34,042 lb (15,441 kg) unladen.

Weights & dimensions — 9270 weights and dimensions
Unladen weight34,042 lb · 15,441 kg
Wheelbase144.8 in · 3,678 mm
Length297.0 in · 7,544 mm
Width157.7 in · 4,005 mm
Height143.0 in · 3,632 mm
Ground clearance14.4 in · 365 mm
Front track80.0–137.0 in · 2,032–3,480 mmWikibooks gives one track for both axles
Rear track80.0–137.0 in · 2,032–3,480 mmWikibooks gives one track for both axles

Source · Traktorenlexikon, “Case-IH 9270”

Which tractors compare with a 9270?

Within 10% of its 299.0 hp at the PTO (claimed), the same type, and first built within 15 years of it.

Everything else people ask

Is a 9270 two-wheel drive or four-wheel drive?

The Case-IH 9270 is four-wheel drive (4WD).

What PTO does a 9270 have?

A 9270 has a 1000 rpm rear PTO on a 1 3/4"- 20 teilig shaft.

Where this page comes from

Compiled from Traktorenlexikon, “Case-IH 9270”.

Last verified

Not yet verified

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. Traktorenlexikon: Case-IH 9270 — CC BY-SA 4.0, WIKIBOOKS-TL-115588 · revision 1001611. Wikibooks contributors (Traktorenlexikon). Original document
