WhichTractor
  • Articulated
  • WhichTractor size: High-power
  • Not independently tested
  • 1987–1990

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Case-IH 9150 Full specifications

CUMMINS LTA-10 A six-cylinder diesel. The manufacturer claimed 276.1 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

276.1 hp

205.9 kW as stated by the source

Not independently tested

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Case-IH 9150”, claimed

Weight
25,993 lb
3-point lift
13,263 lb
Hyd. flow
29.8 gpm
Top speed
18.6 mph

Case-IH 9150 specs: key facts

  • The Case-IH 9150 was built from 1987 to 1990.

  • The Case-IH 9150 has a claimed engine power (gross or net not stated) of 205.9 kW (276.1 hp); it has no measured PTO figure.

  • The Case-IH 9150 is four-wheel drive (4WD).

  • The Case-IH 9150 has a CUMMINS LTA-10 A engine, a 6-cylinder 10.01 L diesel unit.

  • The Case-IH 9150 weighs 11,790 kg (25,993 lb) unladen.

  • The Case-IH 9150 has a rear PTO running at 1000 rpm.

  • The three-point hitch of the Case-IH 9150 lifts 6,016 kg (13,263 lb) at the lower-link ends.

  • The hydraulic pump of the Case-IH 9150 delivers 112.8 L/min (29.8 gpm).

Source · Traktorenlexikon, “Case-IH 9150”

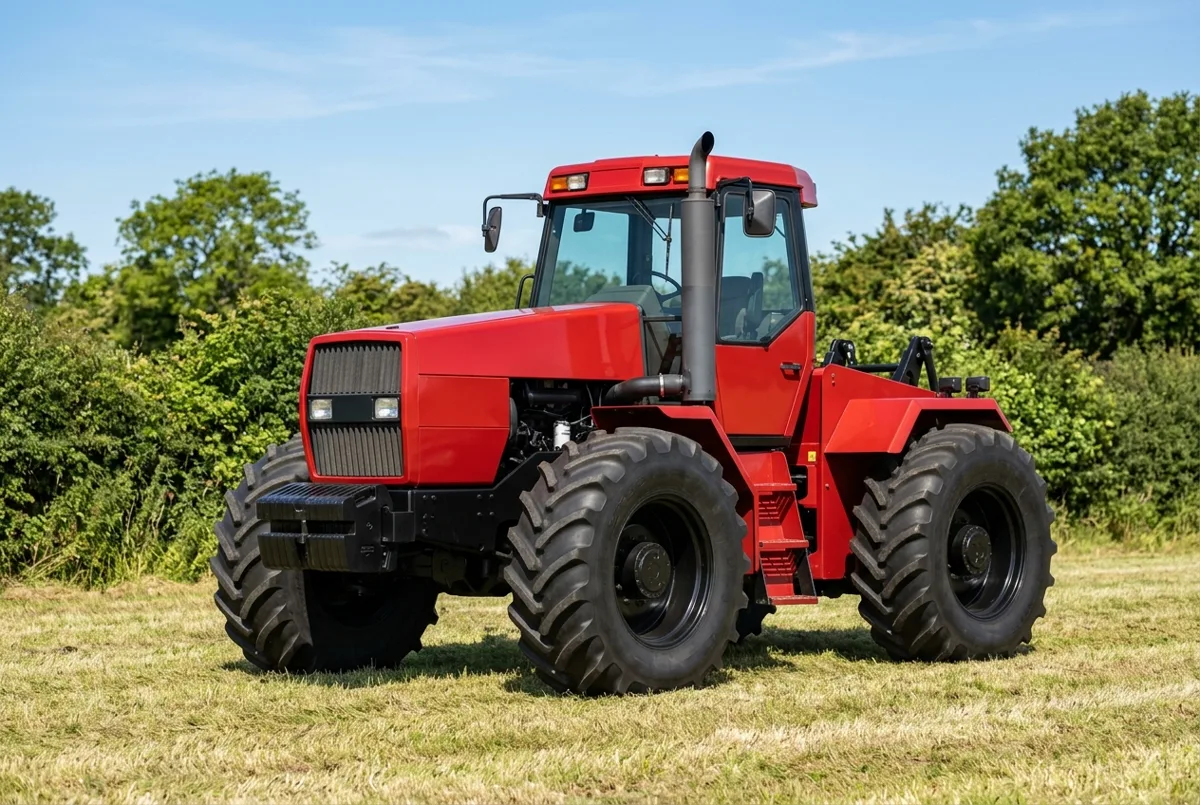

Illustration, not a photograph: Case-IH 9150, drawn from the specification record
Illustration — not a photograph

How much horsepower does a 9150 have?

The only figure for the 9150 is 276.1 hp (205.9 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
276.1 hp

Source · Traktorenlexikon, “Case-IH 9150”

What engine is in a 9150?

A 9150 has a CUMMINS LTA-10 A, a 6-cylinder 10.01 L diesel engine.

Engine — 9150 engine specifications
Make & modelCUMMINS LTA-10 A
Cylinders6, liquid-cooled
Displacement611.1 ci · 10.01 L
Max torque868 lb·ft · 1,177 N·m @ 1,300 rpm

Source · Traktorenlexikon, “Case-IH 9150”

How much will a 9150 lift, and what is its hydraulic flow?

A 9150 lifts 13,263 lb (6,016 kg) at the lower-link ends of its Category 3 three-point hitch.

Hydraulics & PTO — 9150 hydraulics and PTO specifications
Pump flow29.8 gpm · 112.8 L/min
Pressure2,306 psi · 159 bar
Hitch categoryCategory 3
Lift at ends13,263 lb · 6,016 kg
Rear PTO1000 rpm
PTO shaft1 3/4"- 20 teilig

Source · Traktorenlexikon, “Case-IH 9150”

What transmission does a 9150 have?

Transmission specifications for the 9150 are below.

Transmission — 9150 transmission specifications
ClutchOil-bathed F.T.K. multi-plate driving clutch with disc diameter
Top speed18.6 mph · 30 km/h

Source · Traktorenlexikon, “Case-IH 9150”

How much does a 9150 weigh?

A 9150 weighs 25,993 lb (11,790 kg) unladen.

Weights & dimensions — 9150 weights and dimensions
Unladen weight25,993 lb · 11,790 kg
Wheelbase130.0 in · 3,302 mm
Length276.8 in · 7,030 mm
Width119.7 in · 3,040 mm
Height145.7 in · 3,700 mm
Ground clearance17.7 in · 450 mm
Front track60.0–130.0 in · 1,524–3,302 mmWikibooks gives one track for both axles
Rear track60.0–130.0 in · 1,524–3,302 mmWikibooks gives one track for both axles
Turning radius, braked20.9 ft · 6.38 m

Source · Traktorenlexikon, “Case-IH 9150”

Which tractors compare with a 9150?

Within 10% of its 246.2 hp at the PTO (claimed), the same type, and first built within 15 years of it.

Everything else people ask

Is a 9150 two-wheel drive or four-wheel drive?

The Case-IH 9150 is four-wheel drive (4WD).

What PTO does a 9150 have?

A 9150 has a 1000 rpm rear PTO on a 1 3/4"- 20 teilig shaft.

Where this page comes from

Compiled from Traktorenlexikon, “Case-IH 9150”.

Last verified

Not yet verified

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. Traktorenlexikon: Case-IH 9150 — CC BY-SA 4.0, WIKIBOOKS-TL-115581 · revision 1001609. Wikibooks contributors (Traktorenlexikon). Original document
