- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1972–1977
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

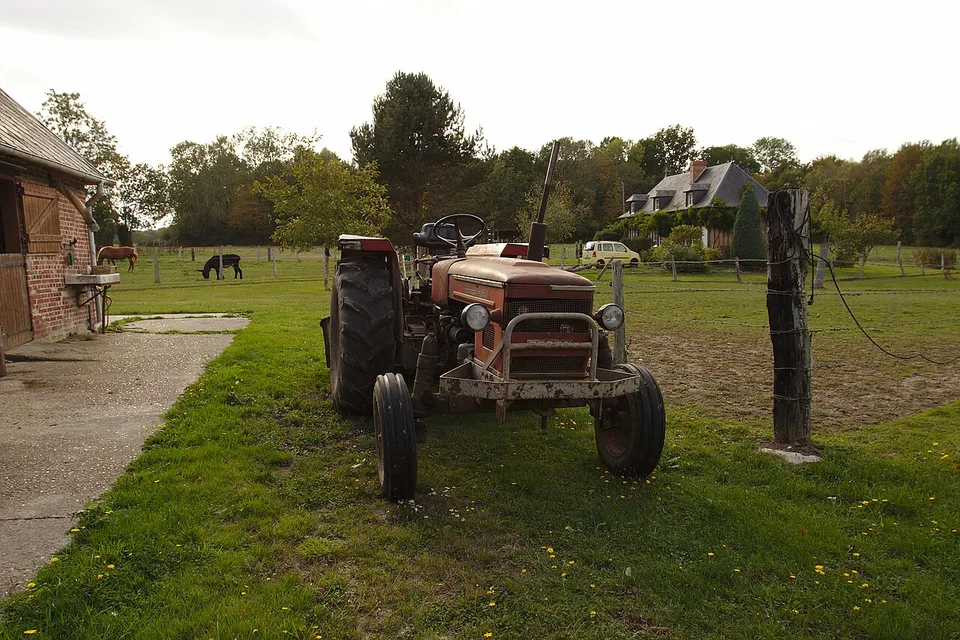

ZETOR 5711 specs: hp, weight, years
ZETOR Z-5501 four-cylinder diesel. The manufacturer claimed 54.3 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
54.3 hp
40.5 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Zetor 5711”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 5,622 lb
- 3-point lift
- 3,748 lb
- Hyd. flow
- 5.3 gpm
- Top speed
- 15.5 mph
ZETOR 5711 specs: key facts
The ZETOR 5711 was built from 1972 to 1977.
The ZETOR 5711 has a claimed engine power (gross or net not stated) of 40.5 kW (54.3 hp); it has no measured PTO figure.
The ZETOR 5711 was offered in two-wheel-drive and four-wheel-drive versions.
The ZETOR 5711 has a ZETOR Z-5501 engine, a 4-cylinder 3.12 L diesel unit.Source 1
The ZETOR 5711 weighs 2,550 kg (5,622 lb) unladen.
The ZETOR 5711 has an independent rear PTO running at 540 rpm.
The three-point hitch of the ZETOR 5711 lifts 1,700 kg (3,748 lb) at the lower-link ends.
The hydraulic pump of the ZETOR 5711 delivers 20.0 L/min (5.3 gpm).
Source · Traktorenlexikon, “Zetor 5711”
How does the 5711 compare with its class?
- Limitation:
A hydraulic pump flow of 20 L/min is low for its class — 38% below the median of 32.3 L/min across the 289 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 364 comparable records. How we work this out
How much horsepower does a 5711 have?
The only figure for the 5711 is 54.3 hp (40.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Zetor 5711”
What engine is in a 5711?
A 5711 has a ZETOR Z-5501, a 4-cylinder 3.12 L diesel engine.
| Make & model | ZETOR Z-5501Source 1 |
|---|---|
| Cylinders | 4, liquid-cooledSource 1 |
| Displacement | 190.3 ci · 3.12 LSource 1 |
| Max torque | 141 lb·ft · 191 N·m @ 1,500 rpm |
| Injection | direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Zetor 5711”
How much will a 5711 lift, and what is its hydraulic flow?
A 5711 lifts 3,748 lb (1,700 kg) at the lower-link ends.
| Pump flow | 5.3 gpm · 20.0 L/min |
|---|---|
| Lift at ends | 3,748 lb · 1,700 kg |
| Rear PTO | Independent, engine-driven, 540 rpm @ 1,993 engine rpmGround-speed PTO available |
| PTO shaft | 1 3/8"- 6 splines (29,0 x 34,9 x 8,7 mm) |
Source · Traktorenlexikon, “Zetor 5711”
What transmission does a 5711 have?
Transmission specifications for the 5711 are below.
| Clutch | Pedal-operated, dry two-stage ZETOR double clutch with mechanical clutch booster |
|---|---|
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Zetor 5711”
How much does a 5711 weigh?
A 5711 weighs 5,622 lb (2,550 kg) unladen.
| Unladen weight | 5,622 lb · 2,550 kgtwo-wheel-drive version |
|---|---|
| Wheelbase | 88.5 in · 2,247 mmtwo-wheel-drive version |
| Length | 138.6 in · 3,520 mm |
| Width | 70.5 in · 1,790 mm |
| Height | 64.2 in · 1,630 mmtwo-wheel-drive version |
| Ground clearance | 17.3 in · 440 mmtwo-wheel-drive version |
| Front track | 50.4–68.9 in · 1,280–1,750 mmtwo-wheel-drive version |
| Rear track | 56.1–70.9 in · 1,425–1,800 mm |
| Turning radius, braked | 11.5 ft · 3.50 m |
Source · Traktorenlexikon, “Zetor 5711”
What oil does a 5711 take, and how much?
A 5711 engine takes 12.7 qt (12.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 12.7 qt · 12.0 LSource: Traktorenlexikon, “Zetor 5711” · single source, not independently verified |
| Transmission & hydraulic | 26.4 qt · 25.0 LSource: Traktorenlexikon, “Zetor 5711” · single source, not independently verified |
| Front axle | 3.2 qt · 3.0 LSource: Traktorenlexikon, “Zetor 5711” · single source, not independently verified |
| Cooling system | 13.7 qt · 13.0 LSource: Traktorenlexikon, “Zetor 5711” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 5711?
Within 10% of its 54.3 hp of claimed engine power, the same type, and first built within 15 years of it.
- Renault 551/551.454.3 hp engine, claimed · 1972–1986Side by side with the 5711 →
- AGRIFULL 350-C (CL/Compact/S)54.3 hp engine, claimed · 1976–1977Side by side with the 5711 →
- Renault 551-4 (S)54.3 hp engine, claimed · 1976–1986Side by side with the 5711 →
- Renault 8054.3 hp engine, claimed · 1968–1977Side by side with the 5711 →
- ALLIS-CHALMERS One-Seventy54.3 hp engine, claimed · 1967–1973Side by side with the 5711 →
- SAME Centauro54.3 hp engine, claimed · 1965–1969Side by side with the 5711 →
Common questions about the ZETOR 5711
Is a 5711 two-wheel drive or four-wheel drive?
The ZETOR 5711 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a 5711 have?
A 5711 has a independent 540 rpm rear PTO on a 1 3/8"- 6 splines (29,0 x 34,9 x 8,7 mm) shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Zetor 5711”; and Traktorenlexikon, “Zetor 5511”.
