- Rigid chassis
- WhichTractor size: Compact
- No lab test on file
- 1960–1964
- 9,020 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

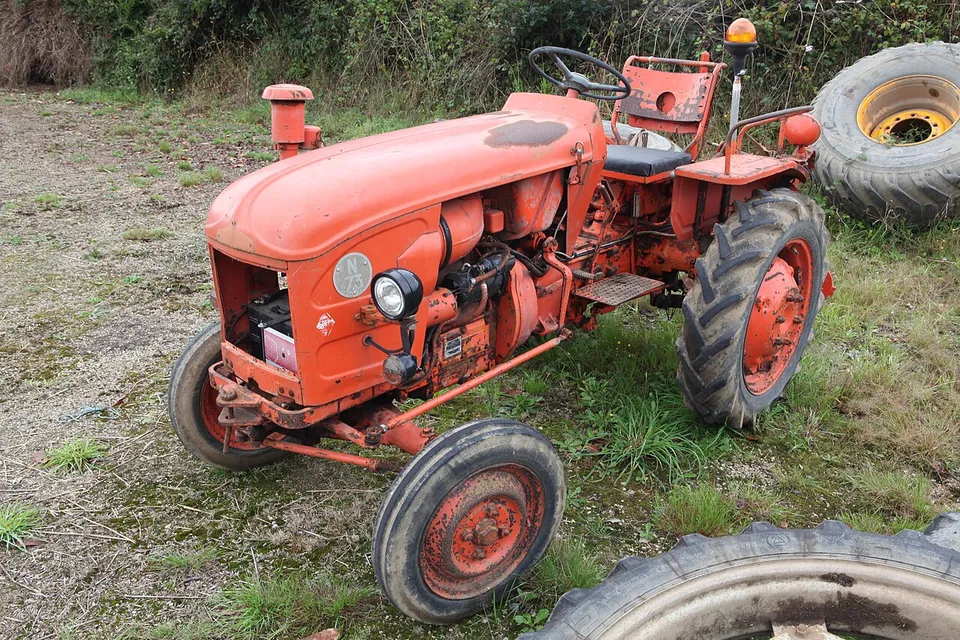

Renault N 73 specs: hp, weight, years
MWM AKD 311 Z two-cylinder diesel. The manufacturer claimed 15.8 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
15.8 hp
11.8 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Renault N73 Junior R7053”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,304 lb
- 3-point lift
- 2,646 lb
- Hyd. flow
- 1.6 gpm
- Top speed
- 12.4 mph
Renault N 73 specs: key facts
The Renault N 73 was built from 1960 to 1964.
The Renault N 73 has a claimed engine power (gross or net not stated) of 11.8 kW (15.8 hp); it has no measured PTO figure.
The Renault N 73 is two-wheel drive (2WD).
The Renault N 73 has a MWM AKD 311 Z engine, a 2-cylinder 1.40 L diesel unit.Source 1
The Renault N 73 weighs 1,045 kg (2,304 lb) unladen.
The Renault N 73 has a dependent rear PTO running at 540 rpm.
The three-point hitch of the Renault N 73 lifts 1,200 kg (2,646 lb) at the lower-link ends.
The hydraulic pump of the Renault N 73 delivers 6.0 L/min (1.6 gpm).
Source · Traktorenlexikon, “Renault N73 Junior R7053”
.jpg){kind=link}
How much horsepower does an N 73 have?
The only figure for the N 73 is 15.8 hp (11.8 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Renault N73 Junior R7053”
What engine is in an N 73?
An N 73 has an MWM AKD 311 Z, a 2-cylinder 1.40 L diesel engine.
| Make & model | MWM AKD 311 Z |
|---|---|
| Cylinders | 2, air-cooledSource 2 |
| Displacement | 85.4 ci · 1.40 L |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Fendt Dieselross F17”
How much will an N 73 lift, and what is its hydraulic flow?
An N 73 lifts 2,646 lb (1,200 kg) at the lower-link ends of its Category 1 three-point hitch.
| Pump flow | 1.6 gpm · 6.0 L/min |
|---|---|
| Hitch category | Category 1 |
| Lift at ends | 2,646 lb · 1,200 kg |
| Rear PTO | Dependent, transmission-driven, 540 rpm @ 1,582 engine rpm |
Source · Traktorenlexikon, “Renault N73 Junior R7053”
What transmission does an N 73 have?
Transmission specifications for the N 73 are below.
| Clutch | Pedal-operated dry FERODO single-disc clutch, type KZ-12 B |
|---|---|
| Steering | Mechanical GEMMER steering, type 50 |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Renault N73 Junior R7053”
How much does an N 73 weigh?
An N 73 weighs 2,304 lb (1,045 kg) unladen.
| Unladen weight | 2,304 lb · 1,045 kg |
|---|---|
| Wheelbase | 65.4 in · 1,660 mm |
| Length | 107.1 in · 2,720 mm |
| Width | 59.1–79.9 in · 1,500–2,030 mm |
| Height | 58.3 in · 1,480 mm |
| Ground clearance | 14.6 in · 370 mm |
| Front track | 39.4–62.2 in · 1,000–1,580 mm |
| Rear track | 43.3–70.9 in · 1,100–1,800 mm |
| Turning radius, braked | 9.5 ft · 2.90 m |
Source · Traktorenlexikon, “Renault N73 Junior R7053”
What oil does an N 73 take, and how much?
An N 73 engine takes 5.1 qt (4.8 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 5.1 qt · 4.8 LSource: Traktorenlexikon, “Renault N73 Junior R7053” · single source, not independently verified |
| Transmission | 21.1 qt · 20.0 LSource: Traktorenlexikon, “Renault N73 Junior R7053” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with an N 73?
Within 10% of its 15.8 hp of claimed engine power, the same type, and first built within 15 years of it.
- Renault D 1615.8 hp engine, claimed · 1958–1960Side by side with the N 73 →
- Eicher EKL 15/II16 hp engine, claimed · 1953–1958Side by side with the N 73 →
- Fendt Fix 1615.7 hp engine, claimed · 1961–1963Side by side with the N 73 →
- Güldner A 1515.7 hp engine, claimed · 1949–1950Side by side with the N 73 →
- Eicher ED 16/I15.7 hp engine, claimed · 1948–1950Side by side with the N 73 →
- MASSEY-HARRIS Pony 811/81215.6 hp engine, claimed · 1951–1957Side by side with the N 73 →
Common questions about the Renault N 73
Is an N 73 two-wheel drive or four-wheel drive?
The Renault N 73 is two-wheel drive (2WD).
What PTO does an N 73 have?
An N 73 has a dependent 540 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Renault N73 Junior R7053”; and Traktorenlexikon, “Fendt Dieselross F17”.
