- Rigid chassis
- WhichTractor size: Compact
- No lab test on file
- 1969–1972
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

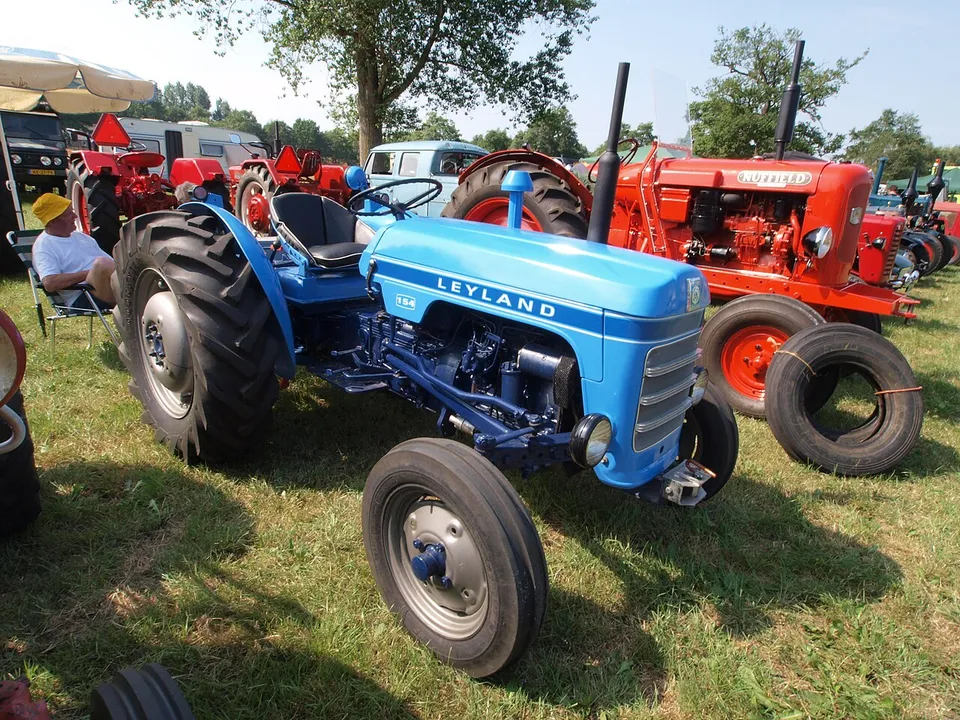

Leyland 154 specs: hp, weight, years
LEYLAND-MOTORS B 15 T four-cylinder. The manufacturer claimed 24.9 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
24.9 hp
18.6 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Leyland 154”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,220–2,275 lb
- 3-point lift
- 1,001 lb
- Hyd. flow
- 3.8 gpm
- Top speed
- 15.5 mph
Leyland 154 specs: key facts
The Leyland 154 was built from 1969 to 1972.
The Leyland 154 has a claimed engine power (gross or net not stated) of 18.6 kW (24.9 hp); it has no measured PTO figure.
The Leyland 154 is two-wheel drive (2WD).
The Leyland 154 has a LEYLAND-MOTORS B 15 T engine, a 4-cylinder unit.
The Leyland 154 weighs 1,007–1,032 kg (2,220–2,275 lb) unladen.
The Leyland 154 has a rear PTO running at 540 rpm.
The three-point hitch of the Leyland 154 lifts 454 kg (1,001 lb) at the lower-link ends.
The hydraulic pump of the Leyland 154 delivers 14.5 L/min (3.8 gpm).
Source · Traktorenlexikon, “Leyland 154”
How does the 154 compare with its class?
- Limitation:
A three-point lift at the lower links of 454 kg is low for its class — 43% below the median of 800 kg across the 35 machines within 10% of its power that hold this figure.
- Worth knowing:
An unladen mass of 1,007 kg is low for its class — 33% below the median of 1,503 kg across the 104 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 104 comparable records. How we work this out
How much horsepower does a 154 have?
The only figure for the 154 is 24.9 hp (18.6 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Leyland 154”
What engine is in a 154?
A 154 has a LEYLAND-MOTORS B 15 T, a 4-cylinder engine.
| Make & model | LEYLAND-MOTORS B 15 T |
|---|---|
| Cylinders | 4, liquid-cooled |
Source · Traktorenlexikon, “Leyland 154”
How much will a 154 lift, and what is its hydraulic flow?
A 154 lifts 1,001 lb (454 kg) at the lower-link ends of its Category 1 three-point hitch.
| Pump flow | 3.8 gpm · 14.5 L/min |
|---|---|
| Hitch category | Category 1 |
| Lift at ends | 1,001 lb · 454 kg |
| Rear PTO | transmission-driven, 540 rpm @ 2,258 engine rpm |
Source · Traktorenlexikon, “Leyland 154”
What transmission does a 154 have?
Transmission specifications for the 154 are below.
| Clutch | Pedal-operated dry Borg & Beck single-plate clutch |
|---|---|
| Steering | Mechanical Cam Gears steering |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Leyland 154”
How much does a 154 weigh?
A 154 weighs 2,220–2,275 lb (1,007–1,032 kg) unladen.
| Unladen weight | 2,220–2,275 lb · 1,007–1,032 kgthe article lists alternatives |
|---|---|
| Wheelbase | 67.0 in · 1,702 mm |
| Length | 109.4 in · 2,780 mm |
| Width | 60.5 in · 1,537 mm |
| Height | 74.5 in · 1,892 mm |
| Ground clearance | 12.8 in · 324 mm |
| Front track | 44.0–68.0 in · 1,118–1,727 mm |
| Rear track | 44.0–72.0 in · 1,118–1,829 mm |
| Turning radius, braked | 9.4 ft · 2.87 m |
Source · Traktorenlexikon, “Leyland 154”
What oil does a 154 take, and how much?
A 154 engine takes 4.6 qt (4.4 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 4.6 qt · 4.4 LSource: Traktorenlexikon, “Leyland 154” · single source, not independently verified |
| Transmission | 11.4 qt · 10.8 LSource: Traktorenlexikon, “Leyland 154” · single source, not independently verified |
| Hydraulic | 9.6 qt · 9.1 LSource: Traktorenlexikon, “Leyland 154” · single source, not independently verified |
| Cooling system | 5.1 qt · 4.8 LSource: Traktorenlexikon, “Leyland 154” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 154?
Within 10% of its 24.9 hp of claimed engine power, the same type, and first built within 15 years of it.
- Nuffield 4/25 (425)24.9 hp engine, claimed · 1968–1969Side by side with the 154 →
- Ford 100024.7 hp engine, claimed · 1973–1976Side by side with the 154 →
- Renault Super 324.7 hp engine, claimed · 1964–1965Side by side with the 154 →
- ALLIS-CHALMERS FD-324.7 hp engine, claimed · 1962–1965Side by side with the 154 →
- Ford 1600 (A)24.7 hp engine, claimed · 1976–1979Side by side with the 154 →
- SOMECA SOM-25 D/E24.7 hp engine, claimed · 1960–1963Side by side with the 154 →
Common questions about the Leyland 154
Is a 154 two-wheel drive or four-wheel drive?
The Leyland 154 is two-wheel drive (2WD).
What PTO does a 154 have?
A 154 has a 540 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Leyland 154”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Leyland 154 — CC BY-SA 4.0, WIKIBOOKS-TL-116097 · revision 993603. Wikibooks contributors (Traktorenlexikon). Original document
