  • Rigid chassis
  • WhichTractor size: Utility
  • Not independently tested
  • 2004–2007

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Lamborghini 874-95 N/DT Full specifications

SAME 1000.4 WT (Tier-II) four-cylinder diesel. The manufacturer claimed 89.7 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

89.7 hp

66.9 kW as stated by the source

Not independently tested

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Lamborghini 874-95 N”, claimed

Weight
7,011 lb
3-point lift
6,118 lb
Hyd. flow
11.7 gpm
Top speed
18.6–24.9 mph

Lamborghini 874-95 N/DT specs: key facts

  • The Lamborghini 874-95 N/DT was built from 2004 to 2007.

  • The Lamborghini 874-95 N/DT has a claimed engine power (gross or net not stated) of 66.9 kW (89.7 hp); it has no measured PTO figure.

  • The Lamborghini 874-95 N/DT is four-wheel drive (4WD).

  • The Lamborghini 874-95 N/DT has a SAME 1000.4 WT (Tier-II) engine, a 4-cylinder 4.00 L diesel unit.

  • The Lamborghini 874-95 N/DT weighs 3,180 kg (7,011 lb) unladen.

  • The Lamborghini 874-95 N/DT has an independent rear PTO running at 540/1000 rpm.

  • The three-point hitch of the Lamborghini 874-95 N/DT lifts 2,775 kg (6,118 lb) at the lower-link ends.

  • The hydraulic pump of the Lamborghini 874-95 N/DT delivers 44.2 L/min (11.7 gpm).

Source · Traktorenlexikon, “Lamborghini 874-95 N”

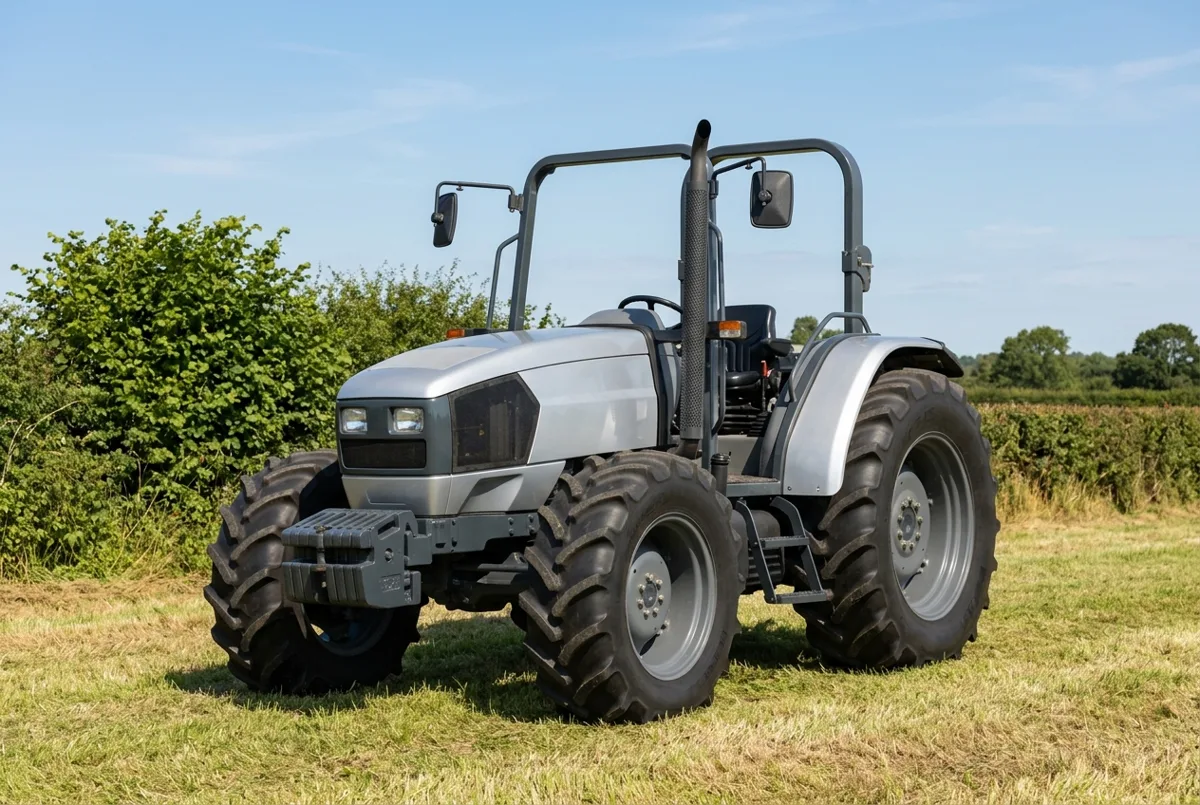

Illustration, not a photograph: Lamborghini 874-95 N/DT, drawn from the specification record
Illustration — not a photograph

How much horsepower does an 874-95 N/DT have?

The only figure for the 874-95 N/DT is 89.7 hp (66.9 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
89.7 hp

Source · Traktorenlexikon, “Lamborghini 874-95 N”

What engine is in an 874-95 N/DT?

An 874-95 N/DT has an SAME 1000.4 WT (Tier-II), a 4-cylinder 4.00 L diesel engine.

Engine — 874-95 N/DT engine specifications
Make & modelSAME 1000.4 WT (Tier-II)
Cylinders4, liquid-cooled
Displacement244.1 ci · 4.00 L
Max torque233 lb·ft · 316 N·m @ 1,400 rpm
InjectionDirect injection
Electrical system12 V

Source · Traktorenlexikon, “Lamborghini 874-95 N”

How much will an 874-95 N/DT lift, and what is its hydraulic flow?

An 874-95 N/DT lifts 6,118 lb (2,775 kg) at the lower-link ends.

Hydraulics & PTO — 874-95 N/DT hydraulics and PTO specifications
SystemLoad sensing
Pump flow11.7 gpm · 44.2 L/min
Lift at ends6,118 lb · 2,775 kg
Rear PTOIndependent, engine-driven, 540/1000 rpm @ 2,198 engine rpmEngages under load

Source · Traktorenlexikon, “Lamborghini 874-95 N”

What transmission does an 874-95 N/DT have?

Transmission specifications for the 874-95 N/DT are below.

Transmission — 874-95 N/DT transmission specifications
ClutchPedal operated dry AP Automotive Products Italy single disc clutch
BrakesPedal operated wet Same-Deutz-Fahr disc brake acting on differential side shafts
SteeringHydraulic Danfoss steering
Top speed18.6–24.9 mph · 30–40 km/hthe article lists alternatives

Source · Traktorenlexikon, “Lamborghini 874-95 N”

How much does an 874-95 N/DT weigh?

An 874-95 N/DT weighs 7,011 lb (3,180 kg) unladen.

Weights & dimensions — 874-95 N/DT weights and dimensions
Unladen weight7,011 lb · 3,180 kg
Wheelbase90.4 in · 2,297 mm
Length160.6 in · 4,080 mm
Width77.2 in · 1,960 mm
Height96.1 in · 2,440 mm
Ground clearance19.7 in · 500 mm
Front track59.1–78.7 in · 1,500–2,000 mmWikibooks gives one track for both axles
Rear track59.1–78.7 in · 1,500–2,000 mmWikibooks gives one track for both axles

Source · Traktorenlexikon, “Lamborghini 874-95 N”

Which tractors compare with an 874-95 N/DT?

Within 10% of its 78.6 hp at the PTO (claimed), the same type, and first built within 15 years of it.

Everything else people ask

Is an 874-95 N/DT two-wheel drive or four-wheel drive?

The Lamborghini 874-95 N/DT is four-wheel drive (4WD).

What PTO does an 874-95 N/DT have?

An 874-95 N/DT has a independent 540/1000 rpm rear PTO.

Where this page comes from

Compiled from Traktorenlexikon, “Lamborghini 874-95 N”.

Last verified

Not yet verified

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. Traktorenlexikon: Lamborghini 874-95 N — CC BY-SA 4.0, WIKIBOOKS-TL-114440 · revision 991494. Wikibooks contributors (Traktorenlexikon). Original document
