- Standard layout, Rigid chassis
- WhichTractor size: Compact
- No lab test on file
- 2000–2004
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

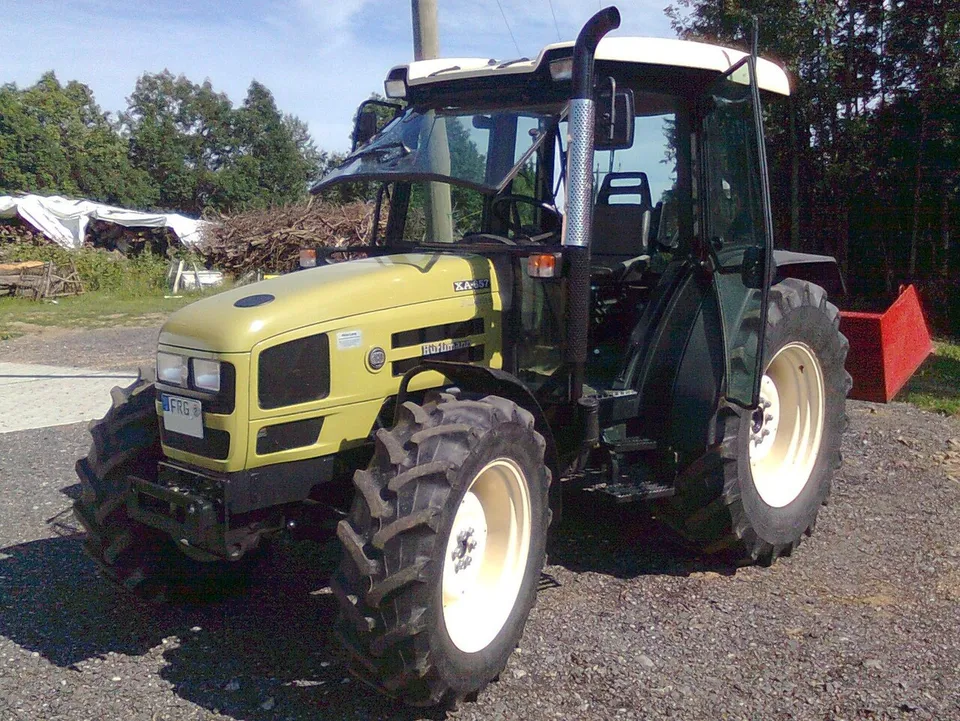

Hürlimann XA 657 specs: hp, weight, years
Hürlimann 1000.4 W-5 four-cylinder diesel. The manufacturer claimed 70.9 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
70.9 hp
52.9 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Hürlimann XA 657”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 5,864 lb
- Hyd. flow
- 9.0 gpm
- Top speed
- 24.9 mph
Hürlimann XA 657 specs: key facts
The Hürlimann XA 657 was built from 2000 to 2004.
The Hürlimann XA 657 has a claimed engine power (gross or net not stated) of 52.9 kW (70.9 hp); it has no measured PTO figure.
The Hürlimann XA 657 was offered in two-wheel-drive and four-wheel-drive versions.
The Hürlimann XA 657 has a Hürlimann 1000.4 W-5 engine, a 4-cylinder 4.00 L diesel unit.
The Hürlimann XA 657 weighs 2,660 kg (5,864 lb) unladen.
The Hürlimann XA 657 has a rear PTO running at 540/540E/1000 rpm.
The hydraulic pump of the Hürlimann XA 657 delivers 34.1 L/min (9.0 gpm).
Source · Traktorenlexikon, “Hürlimann XA 657”
How much horsepower does an XA 657 have?
The only figure for the XA 657 is 70.9 hp (52.9 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Hürlimann XA 657”
What engine is in an XA 657?
An XA 657 has a Hürlimann 1000.4 W-5, a 4-cylinder 4.00 L diesel engine.
| Make & model | Hürlimann 1000.4 W-5 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 244.1 ci · 4.00 L |
| Max torque | 170 lb·ft · 231 N·m @ 1,300 rpm |
| Injection | Direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Hürlimann XA 657”
How much will an XA 657 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the XA 657 are below.
| System | Load sensing |
|---|---|
| Pump flow | 9.0 gpm · 34.1 L/min |
| Pressure | 3,046 psi · 210 bar |
| Hitch category | Category 2 |
| Rear PTO | 540/540E/1000 rpm @ 2,083 engine rpm |
Source · Traktorenlexikon, “Hürlimann XA 657”
What transmission does an XA 657 have?
Transmission specifications for the XA 657 are below.
| Clutch | Pedal operated dry single plate clutch |
|---|---|
| Brakes | Hydraulically operated wet SLH disc brake acting on differential side shafts |
| Steering | Hydrostatic Danfoss steering |
| Top speed | 24.9 mph · 40 km/h |
Source · Traktorenlexikon, “Hürlimann XA 657”
How much does an XA 657 weigh?
An XA 657 weighs 5,864 lb (2,660 kg) unladen.
| Unladen weight | 5,864 lb · 2,660 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 11,023 lb · 5,000 kg |
| Wheelbase | 86.1 in · 2,186 mmtwo-wheel-drive version |
| Length | 153.5 in · 3,900 mm |
| Width | 76.0–91.7 in · 1,930–2,330 mm |
| Height | 92.7 in · 2,355 mm |
| Ground clearance | 15.7 in · 400 mmA |
| Front track | 59.1–70.9 in · 1,500–1,800 mm |
| Rear track | 59.1–75.2 in · 1,500–1,910 mm |
| Turning radius, braked | 12.5 ft · 3.80 m |
Source · Traktorenlexikon, “Hürlimann XA 657”
What oil does an XA 657 take, and how much?
An XA 657 engine takes 9.7 qt (9.2 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 9.7 qt · 9.2 LSource: Traktorenlexikon, “Hürlimann XA 657” · single source, not independently verified |
| Transmission & hydraulic | 43.3 qt · 41.0 LSource: Traktorenlexikon, “Hürlimann XA 657” · single source, not independently verified |
| Front axle | 6.3 qt · 6.0 LSource: Traktorenlexikon, “Hürlimann XA 657” · single source, not independently verified |
| Final drives | 1.6 qt · 1.5 LSource: Traktorenlexikon, “Hürlimann XA 657” · single source, not independently verified |
| Cooling system | 12.7 qt · 12.0 LSource: Traktorenlexikon, “Hürlimann XA 657” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with an XA 657?
Within 10% of its 70.9 hp of claimed engine power, the same type, and first built within 15 years of it.
- Eicher 307271 hp engine, claimed · 1985–1990Side by side with the XA 657 →
- Lamborghini 674-75 (DT)71 hp engine, claimed · 2000–2004Side by side with the XA 657 →
- SAME Dorado 75 (DT)71 hp engine, claimed · 2000–2004Side by side with the XA 657 →
- Fiat TN 75 D (DT)71 hp engine, claimed · 1999–2004Side by side with the XA 657 →
- New Holland TN-75 D/S (A)71 hp engine, claimed · 1999–2004Side by side with the XA 657 →
- Case-IH JX 1070C71 hp engine, claimed · 2003–2008Side by side with the XA 657 →
Common questions about the Hürlimann XA 657
Is an XA 657 two-wheel drive or four-wheel drive?
The Hürlimann XA 657 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does an XA 657 have?
An XA 657 has a 540/540E/1000 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Hürlimann XA 657”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Hürlimann XA 657 — CC BY-SA 4.0, WIKIBOOKS-TL-77819 · revision 864177. Wikibooks contributors (Traktorenlexikon). Original document
