- Rigid chassis
- WhichTractor size: Standard-size
- Not independently tested
- 1995–2004
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

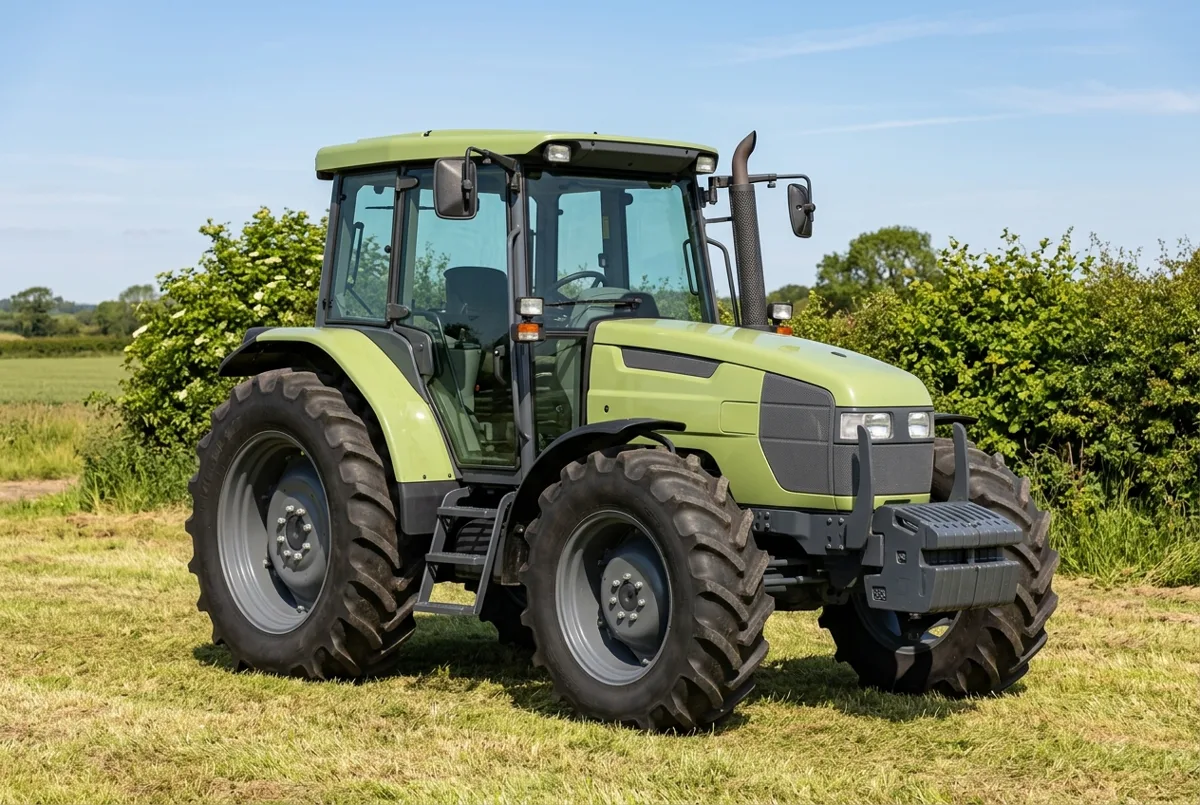

Hürlimann 909 XT Full specifications
Hürlimann H-1000.4 WT-2 four-cylinder diesel. The manufacturer claimed 93.6 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
93.6 hp
69.8 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Hürlimann XT 909”, claimed
- Weight
- 9,480 lb
- Hyd. flow
- 16.1 gpm
- Top speed
- 18.6–24.9 mph
Hürlimann 909 XT specs: key facts
The Hürlimann 909 XT was built from 1995 to 2004.
The Hürlimann 909 XT has a claimed engine power (gross or net not stated) of 69.8 kW (93.6 hp); it has no measured PTO figure.
The Hürlimann 909 XT is four-wheel drive (4WD).
The Hürlimann 909 XT has a Hürlimann H-1000.4 WT-2 engine, a 4-cylinder 4.00 L diesel unit.
The Hürlimann 909 XT weighs 4,300 kg (9,480 lb) unladen.
The Hürlimann 909 XT has a rear PTO running at 540/1000/540E/1000E rpm.
The hydraulic pump of the Hürlimann 909 XT delivers 61.0 L/min (16.1 gpm).
Source · Traktorenlexikon, “Hürlimann XT 909”
How much horsepower does a 909 XT have?
The only figure for the 909 XT is 93.6 hp (69.8 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Hürlimann XT 909”
What engine is in a 909 XT?
A 909 XT has a Hürlimann H-1000.4 WT-2, a 4-cylinder 4.00 L diesel engine.
| Make & model | Hürlimann H-1000.4 WT-2 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 244.1 ci · 4.00 L |
| Max torque | 243 lb·ft · 329 N·m @ 1,714 rpm |
| Injection | direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Hürlimann XT 909”
How much will a 909 XT lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the 909 XT are below.
| System | Load sensing |
|---|---|
| Pump flow | 16.1 gpm · 61.0 L/min |
| Hitch category | Category 2 |
| Rear PTO | 540/1000/540E/1000E rpm @ 2,198 engine rpm |
Source · Traktorenlexikon, “Hürlimann XT 909”
What transmission does a 909 XT have?
Transmission specifications for the 909 XT are below.
| Clutch | Pedal-operated dry SLH single-plate clutch as driving clutch |
|---|---|
| Steering | Hydrostatic DANFOSS steering |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Hürlimann XT 909”
How much does a 909 XT weigh?
A 909 XT weighs 9,480 lb (4,300 kg) unladen.
| Unladen weight | 9,480 lb · 4,300 kg |
|---|---|
| Wheelbase | 93.4 in · 2,373 mm |
| Length | 162.3 in · 4,123 mm |
| Width | 88.2 in · 2,240 mm |
| Height | 105.5 in · 2,680 mm |
| Ground clearance | 16.3 in · 415 mm |
| Front track | 60.2–83.9 in · 1,530–2,130 mm |
| Rear track | 59.1–82.7 in · 1,500–2,100 mm |
| Turning radius, braked | 13.4 ft · 4.07 m |
Source · Traktorenlexikon, “Hürlimann XT 909”
Which tractors compare with a 909 XT?
Within 10% of its 90.4 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- Lamborghini 950 DT90.4 hp PTO, claimed · 1995–2004Side by side with the 909 XT →
- Deutz-Fahr Agrotron 10590.1 hp PTO, claimed · 1997–2001Side by side with the 909 XT →
- Deutz-Fahr Agrotron 10090.6 hp PTO, claimed · 1997–2001Side by side with the 909 XT →
- Case-IH 5230 (DT)90.8 hp PTO, claimed · 1989–1997Side by side with the 909 XT →
- ZETOR 1064191.1 hp PTO, claimed · 1999–2002Side by side with the 909 XT →
- Deutz-Fahr DX 6.1091.2 hp PTO, claimed · 1983–1990Side by side with the 909 XT →
Everything else people ask
Is a 909 XT two-wheel drive or four-wheel drive?
The Hürlimann 909 XT is four-wheel drive (4WD).
What PTO does a 909 XT have?
A 909 XT has a 540/1000/540E/1000E rpm rear PTO.
Where this page comes from
Compiled from Traktorenlexikon, “Hürlimann XT 909”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Hürlimann XT 909 — CC BY-SA 4.0, WIKIBOOKS-TL-105128 · revision 896221. Wikibooks contributors (Traktorenlexikon). Original document
