- Rigid chassis
- WhichTractor size: Compact
- No lab test on file
- 1965
- 3,812 built
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

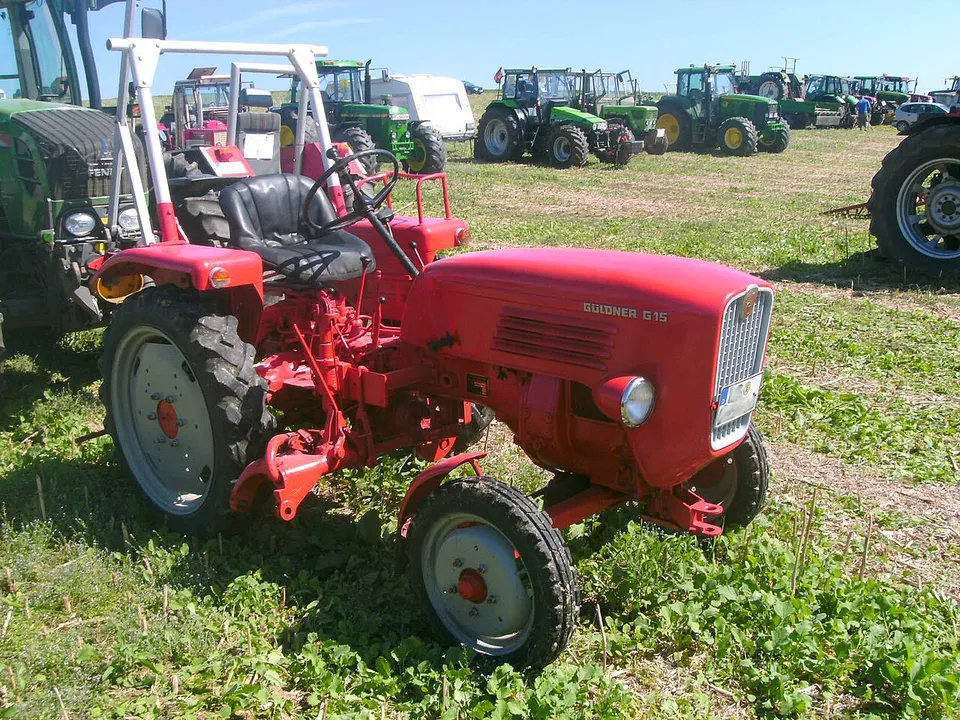

Güldner G 15 specs: hp, weight, years
Güldner 2 LKN two-cylinder diesel. The manufacturer claimed 15 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
15 hp
11 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Güldner G 15”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 1,962 lb
- 3-point lift
- 959 lb
- Top speed
- 12.4 mph
Güldner G 15 specs: key facts
The Güldner G 15 was built in 1965.
The Güldner G 15 has a claimed engine power (gross or net not stated) of 11 kW (15 hp); it has no measured PTO figure.
The Güldner G 15 is two-wheel drive (2WD).
The Güldner G 15 has a Güldner 2 LKN engine, a 2-cylinder 0.89 L diesel unit.Source 1
The Güldner G 15 weighs 890 kg (1,962 lb) unladen.
The Güldner G 15 has a dependent rear PTO running at 568 rpm.
The three-point hitch of the Güldner G 15 lifts 435 kg (959 lb) at the lower-link ends.
Source · Traktorenlexikon, “Güldner G 15”
How much horsepower does a G 15 have?
The only figure for the G 15 is 15 hp (11 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Güldner G 15”
What engine is in a G 15?
A G 15 has a Güldner 2 LKN, a 2-cylinder 0.89 L diesel engine.
| Make & model | Güldner 2 LKN |
|---|---|
| Cylinders | 2, air-cooledSource 2 |
| Displacement | 54.0 ci · 0.89 L |
| Max torque | 30 lb·ft · 41 N·m @ 1,800 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Güldner A 2 KS Spessart”
How much will a G 15 lift?
A G 15 lifts 959 lb (435 kg) at the lower-link ends.
| Pressure | 2,134 psi · 147 bar |
|---|---|
| Lift at ends | 959 lb · 435 kg |
| Rear PTO | Dependent, transmission-driven, 568 rpmGround-speed PTO available |
| PTO shaft | 29 x 34,9 x 8,7 mm |
Source · Traktorenlexikon, “Güldner G 15”
What transmission does a G 15 have?
Transmission specifications for the G 15 are below.
| Brakes | Pedal operated internal shoe brake acting on the side shafts |
|---|---|
| Steering | ZF steering type 80 |
| Top speed | 12.4 mph · 20.0 km/h |
Source · Traktorenlexikon, “Güldner G 15”
How much does a G 15 weigh?
A G 15 weighs 1,962 lb (890 kg) unladen.
| Unladen weight | 1,962 lb · 890 kg |
|---|---|
| Maximum permissible mass | 3,307 lb · 1,500 kg |
| Maximum front axle load | 1,102 lb · 500 kg |
| Maximum rear axle load | 2,205 lb · 1,000 kg |
| Wheelbase | 65.0 in · 1,650 mm |
| Length | 112.2 in · 2,850 mm |
| Width | 57.5 in · 1,460 mm |
| Height | 59.1 in · 1,500 mm |
| Ground clearance | 14.6 in · 370 mm |
| Front track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles; the article lists alternatives |
| Rear track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles; the article lists alternatives |
| Turning radius, braked | 8.7 ft · 2.65 m |
Source · Traktorenlexikon, “Güldner G 15”
What oil does a G 15 take, and how much?
A G 15 engine takes 4.2 qt (4.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 4.2 qt · 4.0 LSource: Traktorenlexikon, “Güldner G 15” · single source, not independently verified |
| Transmission | 0.2 qt · 0.2 LSource: Traktorenlexikon, “Güldner G 15” · single source, not independently verified |
| Hydraulic | 3.9 qt · 3.7 LSource: Traktorenlexikon, “Güldner G 15” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a G 15?
Within 10% of its 15.0 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Güldner A 2 KS Spessart15.0 hp PTO, claimed · 1958–1965Side by side with the G 15 →
- Fahr D 8815.0 hp PTO, claimed · 1956–1960Side by side with the G 15 →
- Güldner ADN15 hp PTO, claimed · 1953–1959Side by side with the G 15 →
- Steyr 8614.6 hp PTO, claimed · 1964–1968Side by side with the G 15 →
- Fahr D 1716 hp PTO, claimed · 1951–1953Side by side with the G 15 →
- Fahr D 17H16 hp PTO, claimed · 1951–1953Side by side with the G 15 →
Common questions about the Güldner G 15
Is a G 15 two-wheel drive or four-wheel drive?
The Güldner G 15 is two-wheel drive (2WD).
What PTO does a G 15 have?
A G 15 has a dependent 568 rpm rear PTO on a 29 x 34,9 x 8,7 mm shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Güldner A 2 KS Spessart”; and Traktorenlexikon, “Güldner G 15”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Güldner A 2 KS Spessart — CC BY-SA 4.0, WIKIBOOKS-TL-43380 · revision 1083383. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Güldner G 15 — CC BY-SA 4.0, WIKIBOOKS-TL-43400 · revision 1078740. Wikibooks contributors (Traktorenlexikon). Original document
