WhichTractor
  • Standard layout, Rigid chassis
  • WhichTractor size: Standard-size
  • Lab tested ×1
  • 2005–2010

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Fendt 922 Vario specs: hp, weight, years

Deutz TCD 2013 LO6 4V six-cylinder diesel or Deutz TCD 2013L06 4V. The manufacturer claimed 188 horsepower. The only laboratory test on record is of one version: OECD Test 2551 measured 204.4 hp at the PTO of the 922 Vario TMS, COM IIIa. Compared at the engine's rated speed, where the brochure figure is quoted, the shaft gave 178.4 hp — 5% below the claim.

Engine power, claimed · gross or net not stated

188 hp

140 kW as stated by the source

No lab test on file

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Fendt 922 Vario”, claimed

This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.

Weight
22,223 lb
Top speed
31.1–37.3 mph

Fendt 922 Vario specs: key facts

  • The Fendt 922 Vario was built from 2005 to 2010.

  • Only one version of the Fendt 922 Vario has a laboratory test on record: the 922 Vario TMS, COM IIIa produced 152.4 kW (204.4 hp) at the PTO, measured on OECD Test 2551.Source 2

  • The Fendt 922 Vario has a claimed engine power (gross or net not stated) of 140 kW (188 hp); it has no measured PTO figure.

  • The Fendt 922 Vario is four-wheel drive (4WD).Source 2

  • The Fendt 922 Vario has a Deutz TCD 2013 LO6 4V engine, a 6-cylinder 7.14 L diesel unit.

  • The Fendt 922 Vario weighs 10,080 kg (22,223 lb) unladen.

  • The Fendt 922 Vario has a rear PTO running at 540/1000 rpm.Source 2

Source · Traktorenlexikon, “Fendt 922 Vario”

How does the 922 Vario compare with its class?

  • Strength:

    A maximum engine torque of 913 N·m is high for its class — 18% above the median of 773 N·m across the 96 machines within 10% of its power that hold this figure.

  • Worth knowing:

    An unladen mass of 10,080 kg is high for its class — 34% above the median of 7,505 kg across the 122 machines within 10% of its power that hold this figure.

Derived by WhichTractor from 122 comparable records. How we work this out

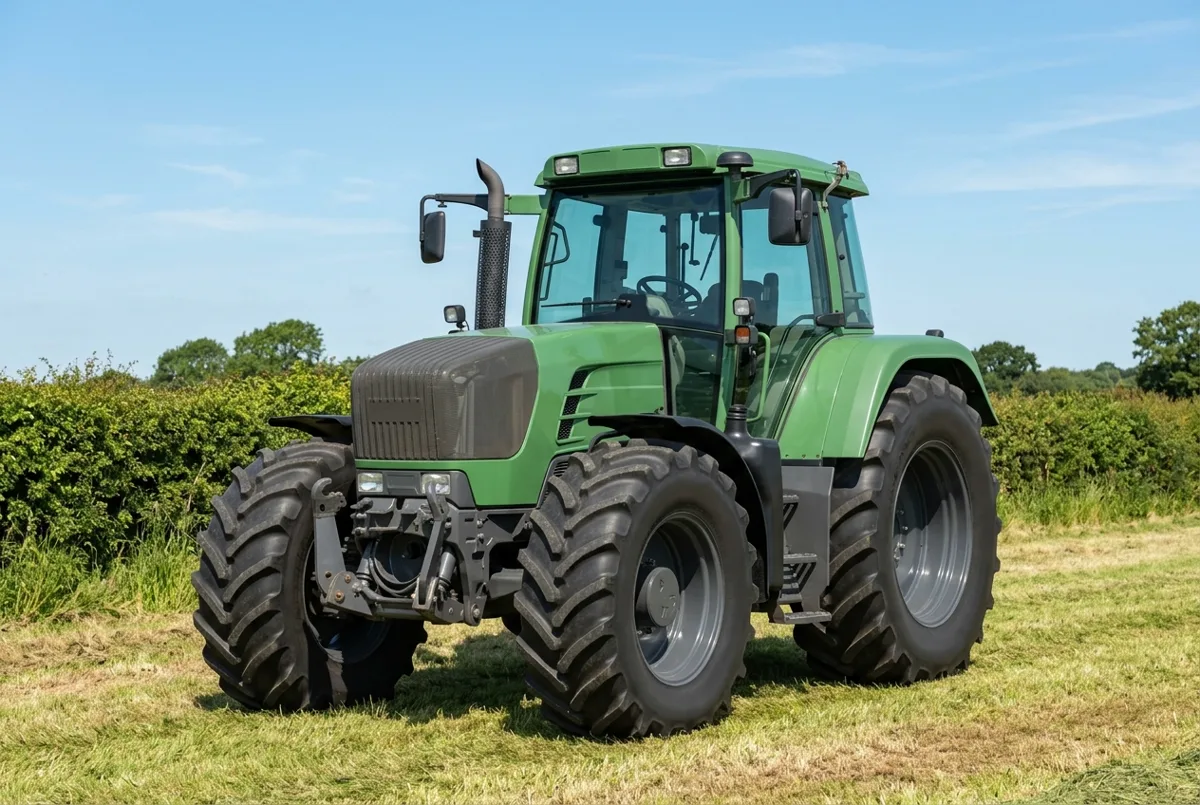

Illustration of the 2005–2010 Fendt 922 Vario, a 188 hp farm tractor, a drawing generated from its specification record
Illustration — not a photograph

How much horsepower does a 922 Vario have?

The only laboratory test on record is of one version. OECD Test 2551 measured 204.4 hp at the PTO of the 922 Vario TMS, COM IIIa. For the 922 Vario as a whole the figure is the 188 hp claimed for the engine, which is not power at the shaft.

Engine, claimed (gross/net not stated)
188 hp

Sources · Traktorenlexikon, “Fendt 922 Vario”; OECD test report 2551, 2010

What engine is in a 922 Vario?

A 922 Vario has a Deutz TCD 2013 LO6 4V, a 6-cylinder 7.14 L diesel engine. 922 Vario TMS, COM IIIa tractors have a Deutz TCD 2013L06 4V.

Engine — 922 Vario engine specifications
Make & modelDeutz TCD 2013 LO6 4V
Cylinders6, liquid-cooled
Displacement435.8 ci · 7.14 L
Max torque673 lb·ft · 913 N·m
InjectionCommon-Rail injection
Electrical system12 V

Source · Traktorenlexikon, “Fendt 922 Vario”

How much will a 922 Vario lift?

Hydraulic and PTO specifications for the 922 Vario are below.

Hydraulics & PTO — 922 Vario hydraulics and PTO specifications
SystemLoad sensing
Rear PTOengine-drivenEngages under load
PTO shaft44.45 mm, 6 splinesSource 2On record for 1 of 2 configurations

Source · Traktorenlexikon, “Fendt 922 Vario”

What transmission does a 922 Vario have?

Transmission specifications for the 922 Vario are below.

Transmission — 922 Vario transmission specifications
ClutchWet multi-disc clutch as PTO clutch
SteeringHydrostatic steering with reaction steering system
Top speed31.1–37.3 mph · 50–60 km/hthe article lists alternatives

Source · Traktorenlexikon, “Fendt 922 Vario”

How much does a 922 Vario weigh?

A 922 Vario weighs 22,223 lb (10,080 kg) unladen.

Weights & dimensions — 922 Vario weights and dimensions
Unladen weight22,223 lb · 10,080 kg
Wheelbase120.1 in · 3,050 mm
Length222.6 in · 5,655 mm
Width108.3 in · 2,750 mm
Height130.8 in · 3,322 mm
Ground clearance18.9 in · 480 mm
Front track82.7 in · 2,100 mm
Rear track80.7 in · 2,050 mm

Source · Traktorenlexikon, “Fendt 922 Vario”

What oil does a 922 Vario take, and how much?

A 922 Vario engine takes 25.4 qt (24 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.

922 Vario fluid capacities, grades and service intervals
SystemCapacity
Engine oil25.4 qt · 24 LSource: Traktorenlexikon, “Fendt 922 Vario” · single source, not independently verified
Cooling system28.5 qt · 27 LSource: Traktorenlexikon, “Fendt 922 Vario” · single source, not independently verified

Always confirm against the operator’s manual for your machine before service.

Which tractors compare with a 922 Vario?

Within 10% of its 188 hp of claimed engine power, the same type, and first built within 15 years of it.

Common questions about the Fendt 922 Vario

Is a 922 Vario two-wheel drive or four-wheel drive?

The Fendt 922 Vario is four-wheel drive (4WD).

Sources and how this page was built

Compiled from OECD tractor test report 2551; and Traktorenlexikon, “Fendt 922 Vario”.

Sources checked

14 SEP 2026

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. OECD Code 2 test report 2/2 542: Fendt 930 Vario TMS, COM IIIa — Licence not stated by the publisher; facts cited, OECD-2542 · published 2010-03-02 · retrieved 2026-09-14. OECD; testing station DLG e.V., Gross-Umstadt, Germany. Original document
  2. OECD Code 2 test report 2/2 551: Fendt 922 Vario TMS, COM IIIa — Licence not stated by the publisher; facts cited, OECD-2551 · published 2010-03-29 · retrieved 2026-09-14. OECD; testing station DLG e.V., Gross-Umstadt, Germany. Original document
  3. Traktorenlexikon: Fendt 922 Vario — CC BY-SA 4.0, WIKIBOOKS-TL-72488 · revision 990836. Wikibooks contributors (Traktorenlexikon). Original document
