- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Standard-size
- No lab test on file
- 1929–1932
- 333 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

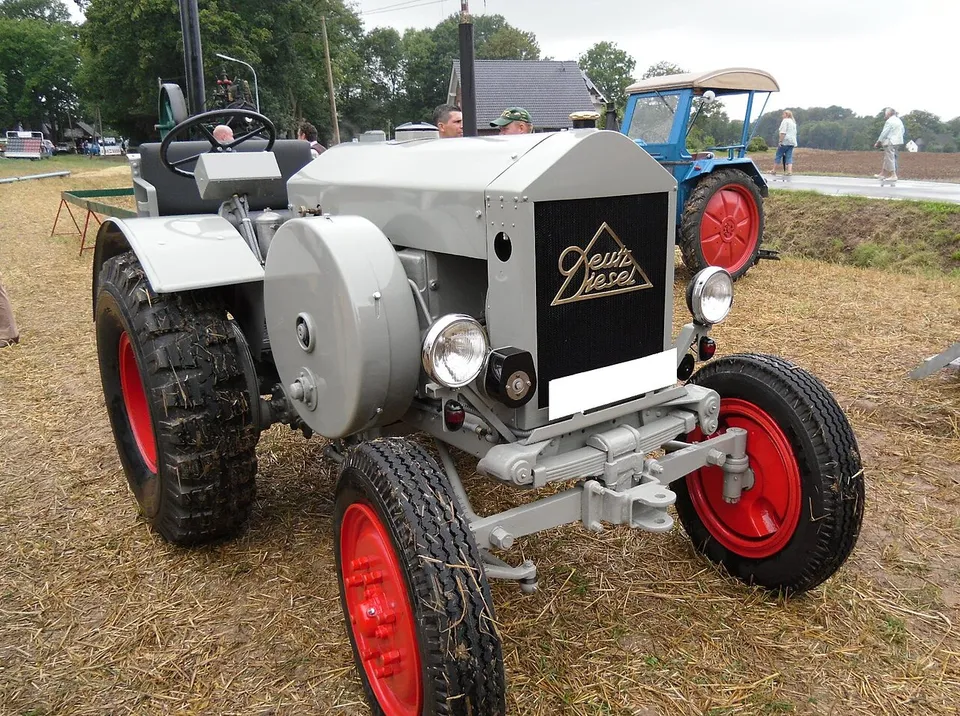

Deutz MTZ 220 specs: hp, weight, years
The manufacturer claimed 30 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
30 hp
22 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz MTZ 220”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 7,496 lb
- Top speed
- 10.9 mph
Deutz MTZ 220 specs: key facts
The Deutz MTZ 220 was built from 1929 to 1932.
The Deutz MTZ 220 has a claimed engine power (gross or net not stated) of 22 kW (30 hp); it has no measured PTO figure.
The Deutz MTZ 220 is two-wheel drive (2WD).
The Deutz MTZ 220 weighs 3,400 kg (7,496 lb) unladen.
Source · Traktorenlexikon, “Deutz MTZ 220”
How does the Deutz MTZ 220 compare with its class?
- Limitation:
Three forward gears is low for its class — 50% below the median of 6 across the 128 machines within 10% of its power that hold this figure.
- Worth knowing:
An unladen mass of 3,400 kg is high for its class — 100% above the median of 1,700 kg across the 129 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 129 comparable records. How we work this out
How much horsepower does a Deutz MTZ 220 have?
The only figure for the Deutz MTZ 220 is 30 hp (22 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz MTZ 220”
What transmission does a Deutz MTZ 220 have?
Transmission specifications for the Deutz MTZ 220 are below.
| Clutch | Pedal operated cone friction clutch |
|---|---|
| Steering | Mechanical worm steering in connection with worm segment |
| Top speed | 10.9 mph · 17.5 km/h |
Source · Traktorenlexikon, “Deutz MTZ 220”
How much does a Deutz MTZ 220 weigh?
A Deutz MTZ 220 weighs 7,496 lb (3,400 kg) unladen.
| Unladen weight | 7,496 lb · 3,400 kg |
|---|---|
| Wheelbase | 70.1 in · 1,780 mm |
| Length | 121.1 in · 3,075 mm |
| Width | 70.9 in · 1,800 mm |
| Height | 70.1 in · 1,780 mm |
| Ground clearance | 11.8 in · 300 mm |
| Front track | 53.1 in · 1,350 mm |
| Rear track | 59.1 in · 1,500 mm |
Source · Traktorenlexikon, “Deutz MTZ 220”
Which tractors compare with a Deutz MTZ 220?
Within 10% of its 30 hp of claimed engine power, the same type, and first built within 15 years of it.
- Lanz D 951129.5 hp engine, claimed · from 1934Side by side with the Deutz MTZ 220 →
- Lanz D 952129.5 hp engine, claimed · 1934–1936Side by side with the Deutz MTZ 220 →
- Lanz D 953129.5 hp engine, claimed · 1934–1944Side by side with the Deutz MTZ 220 →
- Lanz D 953929.5 hp engine, claimed · 1934–1944Side by side with the Deutz MTZ 220 →
- Lanz D 950629.5 hp engine, claimed · 1939–1944Side by side with the Deutz MTZ 220 →
- Kramer K 3030 hp engine, claimed · 1941–1942Side by side with the Deutz MTZ 220 →
Common questions about the Deutz MTZ 220
Is a Deutz MTZ 220 two-wheel drive or four-wheel drive?
The Deutz MTZ 220 is two-wheel drive (2WD).
Sources and how this page was built
Compiled from Traktorenlexikon, “Deutz MTZ 220”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Deutz MTZ 220 — CC BY-SA 4.0, WIKIBOOKS-TL-71496 · revision 810510. Wikibooks contributors (Traktorenlexikon). Original document
