- WhichTractor size: Utility
- No lab test on file
- 1959
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

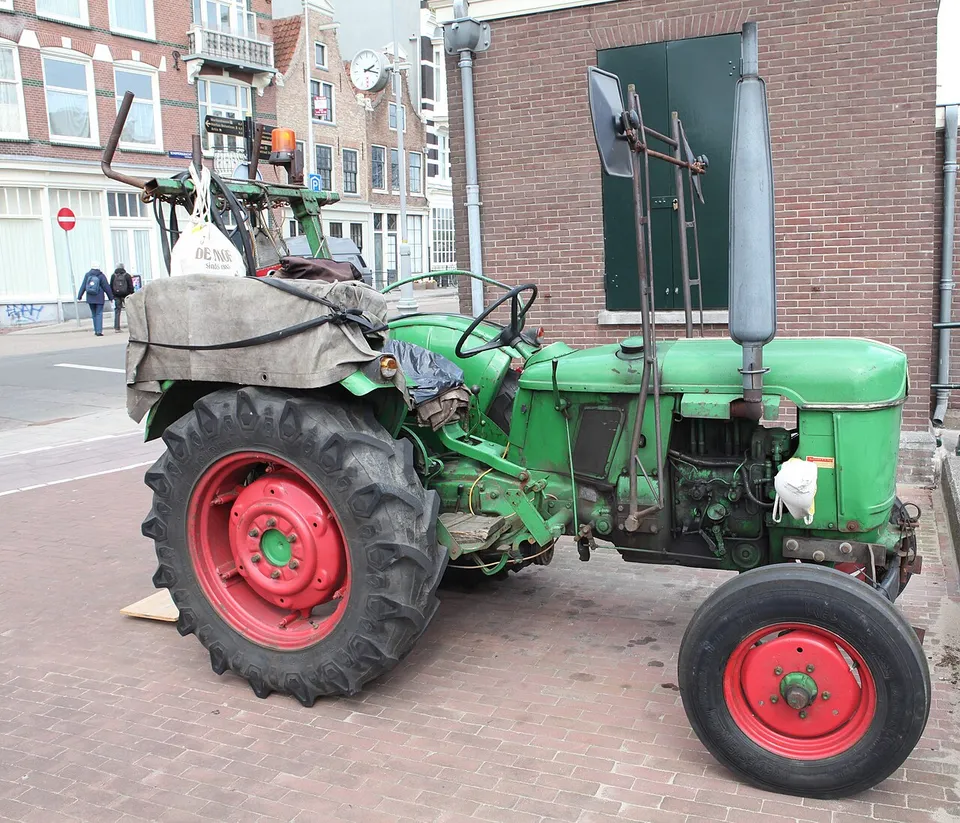

Deutz D 25 specs: hp, weight, years
KHD F2L 712 two-cylinder diesel. The manufacturer claimed 19.6 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
19.6 hp
14.6 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz D 25”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,921 lb
- Top speed
- 12.4 mph
Deutz D 25 specs: key facts
The Deutz D 25 was built in 1959.
The Deutz D 25 has a claimed engine power (gross or net not stated) of 14.6 kW (19.6 hp); it has no measured PTO figure.
The Deutz D 25 is two-wheel drive (2WD).Source 2
The Deutz D 25 has a KHD F2L 712 engine, a 2-cylinder 1.70 L diesel unit.Source 3
The Deutz D 25 weighs 1,325 kg (2,921 lb) unladen.
The Deutz D 25 has a dependent rear PTO running at 257/540 rpm.Source 2
The hydraulic pump of the Deutz D 25 delivers 16.0 L/min (4.2 gpm).Source 2
Source · Traktorenlexikon, “Deutz D 25”
How much horsepower does a Deutz D 25 have?
The only figure for the Deutz D 25 is 19.6 hp (14.6 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz D 25”
What engine is in a Deutz D 25?
A Deutz D 25 has a KHD F2L 712, a 2-cylinder 1.70 L diesel engine.
| Make & model | KHD F2L 712Source 3 |
|---|---|
| Cylinders | 2, air-cooledSource 3 |
| Displacement | 103.7 ci · 1.70 LSource 3 |
| Max torque | 64 lb·ft · 86 N·m @ 1,500 rpmSource 2 |
| Injection | L'Orange swirl chamber process and Deutz single injection pumpSource 2On record for 1 of 2 configurations |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Deutz D 25”
How much will a Deutz D 25 lift?
Hydraulic and PTO specifications for the Deutz D 25 are below.
| Pump flow | 4.2 gpm · 16.0 L/minSource 2On record for 1 of 2 configurations |
|---|---|
| Pressure | 1,707 psi · 118 bar |
| Hitch category | Category 1 |
| Rear PTO | Dependent, transmission-driven, 257/540 rpmSource 2 |
| PTO shaft | 29 x 34,9 x 8,7 mm (Form-A) |
Source · Traktorenlexikon, “Deutz D 25”
What transmission does a Deutz D 25 have?
Transmission specifications for the Deutz D 25 are below.
| Clutch | Pedal-operated dry single-disc clutch from Fichtel & Sachs |
|---|---|
| Brakes | Pedal operated internal expanding shoe brake acting on rear wheelsSource 2On record for 1 of 2 configurations |
| Steering | Mechanical ZF finger steering |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Deutz D 25”
How much does a Deutz D 25 weigh?
A Deutz D 25 weighs 2,921 lb (1,325 kg) unladen.
| Unladen weight | 2,921 lb · 1,325 kg |
|---|---|
| Maximum permissible mass | 4,850 lb · 2,200 kgSource 2On record for 1 of 2 configurations |
| Maximum front axle load | 1,543 lb · 700 kg |
| Maximum rear axle load | 3,527 lb · 1,600 kg |
| Wheelbase | 70.1 in · 1,780 mm |
| Length | 115.7 in · 2,940 mm |
| Width | 62.6 in · 1,590 mm |
| Height | 59.8 in · 1,520 mm |
| Ground clearance | 14.2 in · 360 mm |
| Front track | 50.8–56.5 in · 1,290–1,435 mmthe article lists alternatives |
| Rear track | 50.6–57.7 in · 1,285–1,465 mmthe article lists alternatives |
| Turning radius, braked | 8.7 ft · 2.65 m |
Source · Traktorenlexikon, “Deutz D 25”
What oil does a Deutz D 25 take, and how much?
A Deutz D 25 engine takes 6.3 qt (6 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 6.3 qt · 6 LSource: Traktorenlexikon, “Deutz D 25” · single source, not independently verified |
| Transmission | 12.7 qt · 12 LSource: Traktorenlexikon, “Deutz D 25” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a Deutz D 25?
Within 10% of its 19 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Güldner A 2 DL19 hp PTO, claimed · 1959–1961Side by side with the Deutz D 25 →
- Güldner A 2 L (Tessin)19 hp PTO, claimed · 1959–1962Side by side with the Deutz D 25 →
- Güldner A 2D19 hp PTO, claimed · 1959–1960Side by side with the Deutz D 25 →
- Deutz D 25.119 hp PTO, claimed · 1960Side by side with the Deutz D 25 →
- Güldner AL19 hp PTO, claimed · 1962Side by side with the Deutz D 25 →
- Güldner AW19 hp PTO, claimed · 1962Side by side with the Deutz D 25 →
Common questions about the Deutz D 25
Is a Deutz D 25 two-wheel drive or four-wheel drive?
The Deutz D 25 is two-wheel drive (2WD).
What PTO does a Deutz D 25 have?
A Deutz D 25 has a dependent 257/540 rpm rear PTO on a 29 x 34,9 x 8,7 mm (Form-A) shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Deutz D 25”; Traktorenlexikon, “Deutz D 25 S”; and Traktorenlexikon, “Deutz D 25.1”.
