- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1947–1952
- 6,400 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

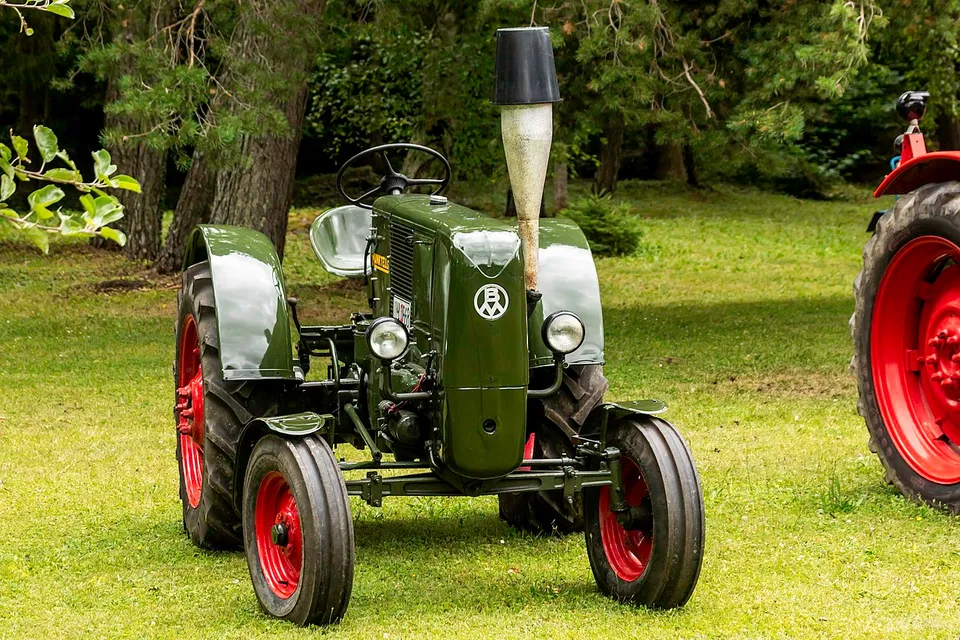

BOLINDER-MUNKTELL BM-10 specs: hp, weight, years
BOLINDER W-3 two-cylinder diesel. The manufacturer claimed 22.7 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
22.7 hp
16.9 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Bolinder-Munktell BM 10”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,701 lb
- Top speed
- 12.4 mph
BOLINDER-MUNKTELL BM-10 specs: key facts
The BOLINDER-MUNKTELL BM-10 was built from 1947 to 1952.
The BOLINDER-MUNKTELL BM-10 has a claimed engine power (gross or net not stated) of 16.9 kW (22.7 hp); it has no measured PTO figure.
The BOLINDER-MUNKTELL BM-10 is two-wheel drive (2WD).
The BOLINDER-MUNKTELL BM-10 has a BOLINDER W-3 engine, a 2-cylinder 2.71 L diesel unit.
The BOLINDER-MUNKTELL BM-10 weighs 1,225 kg (2,701 lb) unladen.
The BOLINDER-MUNKTELL BM-10 has a rear PTO running at 540 rpm.
Source · Traktorenlexikon, “Bolinder-Munktell BM 10”
How much horsepower does a BM-10 have?
The only figure for the BM-10 is 22.7 hp (16.9 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Bolinder-Munktell BM 10”
What engine is in a BM-10?
A BM-10 has a BOLINDER W-3, a 2-cylinder 2.71 L diesel engine.
| Make & model | BOLINDER W-3 |
|---|---|
| Cylinders | 2, liquid-cooled |
| Displacement | 165.6 ci · 2.71 L |
| Electrical system | 24 V |
Source · Traktorenlexikon, “Bolinder-Munktell BM 10”
How much will a BM-10 lift?
Hydraulic and PTO specifications for the BM-10 are below.
| Rear PTO | 540 rpm |
|---|
Source · Traktorenlexikon, “Bolinder-Munktell BM 10”
What transmission does a BM-10 have?
Transmission specifications for the BM-10 are below.
| Clutch | Pedal operated dry single-plate clutch |
|---|---|
| Brakes | Pedal-operated internal expanding brakes acting on the rear wheels |
| Steering | Mechanical steering |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Bolinder-Munktell BM 10”
How much does a BM-10 weigh?
A BM-10 weighs 2,701 lb (1,225 kg) unladen.
| Unladen weight | 2,701 lb · 1,225 kg |
|---|---|
| Wheelbase | 65.0 in · 1,650 mm |
| Length | 100.4 in · 2,550 mm |
| Width | 63.0 in · 1,600 mm |
| Height | 59.1 in · 1,500 mm |
| Ground clearance | 15.7 in · 400 mm |
| Front track | 47.2–54.0 in · 1,200–1,372 mm |
| Rear track | 47.2–63.0 in · 1,200–1,600 mm |
Source · Traktorenlexikon, “Bolinder-Munktell BM 10”
What oil does a BM-10 take, and how much?
A BM-10 engine takes 5.3 qt (5.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 5.3 qt · 5.0 LSource: Traktorenlexikon, “Bolinder-Munktell BM 10” · single source, not independently verified |
| Cooling system | 9.5 qt · 9.0 LSource: Traktorenlexikon, “Bolinder-Munktell BM 10” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a BM-10?
Within 10% of its 22.7 hp of claimed engine power, the same type, and first built within 15 years of it.
- MASSEY-HARRIS M-H 2222.9 hp engine, claimed · 1948–1953Side by side with the BM-10 →
- J.I. Case Modell-V22.1 hp engine, claimed · 1940–1942Side by side with the BM-10 →
- J.I. Case Modell-VC22.1 hp engine, claimed · 1940–1942Side by side with the BM-10 →
- Allgaier R2221.7 hp engine, claimed · 1949–1952Side by side with the BM-10 →
- Wolfenbütteler Traktoren GmbH 22 PS21.7 hp engine, claimed · 1949–1950Side by side with the BM-10 →
- International Harvester D-32221.7 hp engine, claimed · 1962–1965Side by side with the BM-10 →
Common questions about the BOLINDER-MUNKTELL BM-10
Is a BM-10 two-wheel drive or four-wheel drive?
The BOLINDER-MUNKTELL BM-10 is two-wheel drive (2WD).
What PTO does a BM-10 have?
A BM-10 has a 540 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Bolinder-Munktell BM 10”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Bolinder-Munktell BM 10 — CC BY-SA 4.0, WIKIBOOKS-TL-116147 · revision 1001559. Wikibooks contributors (Traktorenlexikon). Original document
