- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1972–1977
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

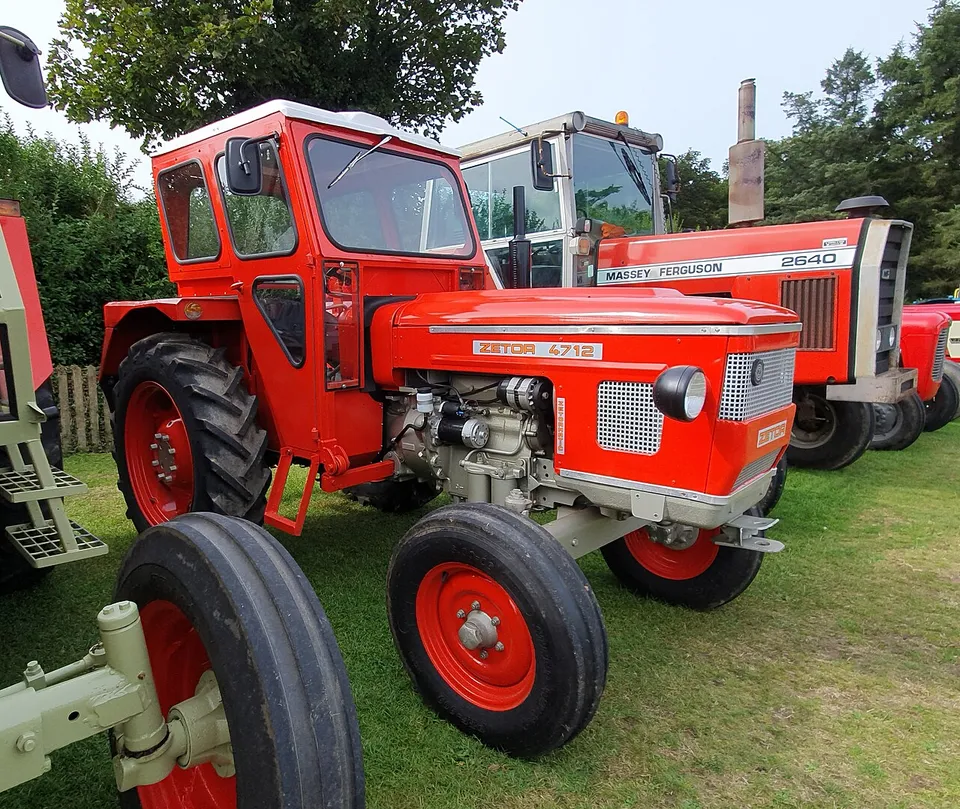

ZETOR 4712 specs: hp, weight, years
ZETOR Z-4701 three-cylinder diesel. The manufacturer claimed 44.4 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
44.4 hp
33.1 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Zetor 4712”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 4,519 lb
- Hyd. flow
- 5.3 gpm
- Top speed
- 15.5 mph
ZETOR 4712 specs: key facts
The ZETOR 4712 was built from 1972 to 1977.
The ZETOR 4712 has a claimed engine power (gross or net not stated) of 33.1 kW (44.4 hp); it has no measured PTO figure.
The ZETOR 4712 is two-wheel drive (2WD).
The ZETOR 4712 has a ZETOR Z-4701 engine, a 3-cylinder 2.59 L diesel unit.
The ZETOR 4712 weighs 2,050 kg (4,519 lb) unladen.
The ZETOR 4712 has an independent rear PTO running at 540 rpm.
The hydraulic pump of the ZETOR 4712 delivers 20.0 L/min (5.3 gpm).
Source · Traktorenlexikon, “Zetor 4712”
.jpg){kind=link}
How much horsepower does a 4712 have?
The only figure for the 4712 is 44.4 hp (33.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Zetor 4712”
What engine is in a 4712?
A 4712 has a ZETOR Z-4701, a 3-cylinder 2.59 L diesel engine.
| Make & model | ZETOR Z-4701 |
|---|---|
| Cylinders | 3, liquid-cooled |
| Displacement | 158.2 ci · 2.59 L |
| Max torque | 106 lb·ft · 144 N·m @ 1,500 rpm |
| Injection | Direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Zetor 4712”
How much will a 4712 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the 4712 are below.
| Pump flow | 5.3 gpm · 20.0 L/min |
|---|---|
| Hitch category | Category 1 |
| Rear PTO | Independent, engine-driven, 540 rpm @ 1,993 engine rpmGround-speed PTO available |
| PTO shaft | 1 3/8 inches with 6 splines 29,0 x 34,9 x 8,7 mm |
Source · Traktorenlexikon, “Zetor 4712”
What transmission does a 4712 have?
Transmission specifications for the 4712 are below.
| Clutch | Pedal-operated dry two-stage double clutch |
|---|---|
| Brakes | Pedal-operated hydraulic internal shoe brake acting on differential side shafts |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Zetor 4712”
How much does a 4712 weigh?
A 4712 weighs 4,519 lb (2,050 kg) unladen.
| Unladen weight | 4,519 lb · 2,050 kg |
|---|---|
| Wheelbase | 78.3 in · 1,988 mm |
| Length | 124.4 in · 3,160 mm |
| Width | 68.0 in · 1,727 mm |
| Height | 63.0 in · 1,600 mm |
| Ground clearance | 11.7 in · 298 mm |
| Front track | 50.4–68.9 in · 1,280–1,750 mm |
| Rear track | 53.1–70.9 in · 1,350–1,800 mm |
| Turning radius, braked | 11.2 ft · 3.40 m |
Source · Traktorenlexikon, “Zetor 4712”
What oil does a 4712 take, and how much?
A 4712 engine takes 8.5 qt (8.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 8.5 qt · 8.0 LSource: Traktorenlexikon, “Zetor 4712” · single source, not independently verified |
| Transmission & hydraulic | 26.4 qt · 25.0 LSource: Traktorenlexikon, “Zetor 4712” · single source, not independently verified |
| Cooling system | 13.7 qt · 13.0 LSource: Traktorenlexikon, “Zetor 4712” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 4712?
Within 10% of its 44.4 hp of claimed engine power, the same type, and first built within 15 years of it.
- Steyr 545 (a)44.4 hp engine, claimed · 1972–1977Side by side with the 4712 →
- International Harvester 45344.4 hp engine, claimed · 1971–1975Side by side with the 4712 →
- Fiat 450 S (DT)44.4 hp engine, claimed · 1975–1981Side by side with the 4712 →
- AGRIFULL 340-C (S)44.4 hp engine, claimed · 1976–1977Side by side with the 4712 →
- Fiat 450 (DT)44.4 hp engine, claimed · 1968–1975Side by side with the 4712 →
- Renault 5844.4 hp engine, claimed · 1968–1969Side by side with the 4712 →
Common questions about the ZETOR 4712
Is a 4712 two-wheel drive or four-wheel drive?
The ZETOR 4712 is two-wheel drive (2WD).
What PTO does a 4712 have?
A 4712 has a independent 540 rpm rear PTO on a 1 3/8 inches with 6 splines 29,0 x 34,9 x 8,7 mm shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Zetor 4712”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Zetor 4712 — CC BY-SA 4.0, WIKIBOOKS-TL-112190 · revision 1010196. Wikibooks contributors (Traktorenlexikon). Original document
