- WhichTractor size: Standard-size
- Not independently tested
- 1989–1995
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

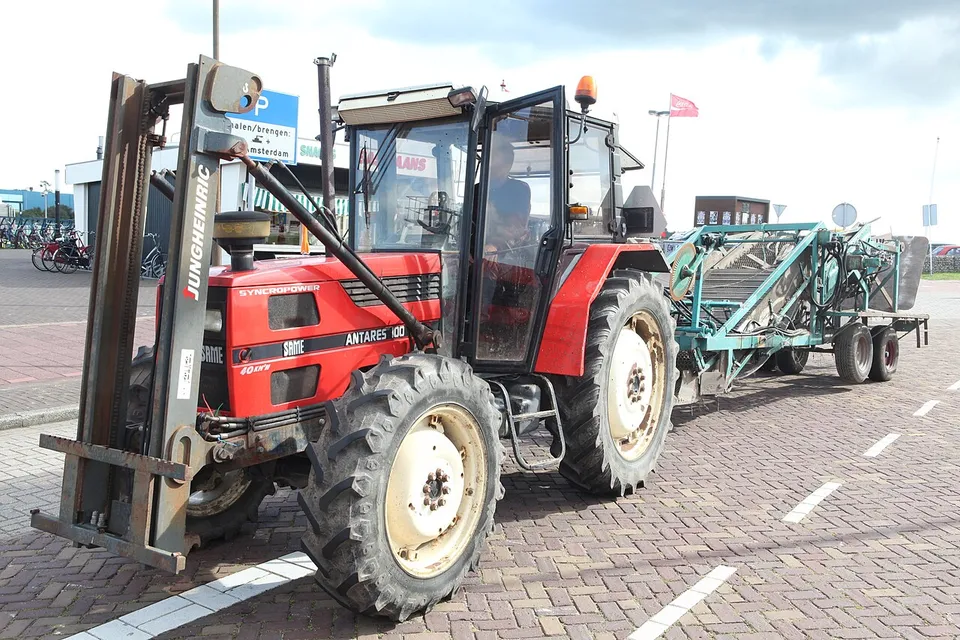

SAME Antares 100 Full specifications
SAME 1000.4 ATI four-cylinder diesel. The manufacturer claimed 98.6 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
98.6 hp
73.5 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “SAME Antares 100”, claimed
- Weight
- 7,496 lb
- 3-point lift
- 10,494 lb
- Hyd. flow
- 11.2 gpm
- Top speed
- 24.9 mph
SAME Antares 100 specs: key facts
The SAME Antares 100 was built from 1989 to 1995.
The SAME Antares 100 has a claimed engine power (gross or net not stated) of 73.5 kW (98.6 hp); it has no measured PTO figure.
The SAME Antares 100 is four-wheel drive (4WD).
The SAME Antares 100 has a SAME 1000.4 ATI engine, a 4-cylinder 4.00 L diesel unit.
The SAME Antares 100 weighs 3,400 kg (7,496 lb) unladen.
The SAME Antares 100 has an independent rear PTO running at 540/1000/540E/1000E rpm.
The three-point hitch of the SAME Antares 100 lifts 4,760 kg (10,494 lb) at the lower-link ends.
The hydraulic pump of the SAME Antares 100 delivers 42.5 L/min (11.2 gpm).
Source · Traktorenlexikon, “SAME Antares 100”
How much horsepower does an Antares 100 have?
The only figure for the Antares 100 is 98.6 hp (73.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “SAME Antares 100”
What engine is in an Antares 100?
An Antares 100 has an SAME 1000.4 ATI, a 4-cylinder 4.00 L diesel engine.
| Make & model | SAME 1000.4 ATI |
|---|---|
| Cylinders | 4, air-cooled |
| Displacement | 244.1 ci · 4.00 L |
| Max torque | 258 lb·ft · 350 N·m @ 1,400 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “SAME Antares 100”
How much will an Antares 100 lift, and what is its hydraulic flow?
An Antares 100 lifts 10,494 lb (4,760 kg) at the lower-link ends.
| Pump flow | 11.2 gpm · 42.5 L/min |
|---|---|
| Pressure | 2,176 psi · 150 bar |
| Lift at ends | 10,494 lb · 4,760 kg |
| Rear PTO | Independent, engine-driven, 540/1000/540E/1000E rpm @ 2,229 engine rpmEngages under loadGround-speed PTO available |
Source · Traktorenlexikon, “SAME Antares 100”
What transmission does an Antares 100 have?
Transmission specifications for the Antares 100 are below.
| Clutch | Pedal-operated dry S.L.H. single-disc clutch |
|---|---|
| Brakes | Pedal-operated hydraulic wet S.L.H. disc brake acting on differential side shafts |
| Top speed | 24.9 mph · 40 km/h |
Source · Traktorenlexikon, “SAME Antares 100”
How much does an Antares 100 weigh?
An Antares 100 weighs 7,496 lb (3,400 kg) unladen.
| Unladen weight | 7,496 lb · 3,400 kg |
|---|---|
| Maximum permissible mass | 11,905 lb · 5,400 kg |
| Maximum front axle load | 4,519 lb · 2,050 kg |
| Maximum rear axle load | 5,512 lb · 2,500 kg |
| Wheelbase | 91.3 in · 2,320 mm |
| Length | 152.0 in · 3,860 mm |
| Width | 74.8 in · 1,900 mm |
| Height | 103.1 in · 2,620 mm |
| Ground clearance | 18.5 in · 470 mm |
| Front track | 63.0–70.9 in · 1,600–1,800 mm |
| Rear track | 59.1–82.7 in · 1,500–2,100 mm |
| Turning radius, braked | 9.6 ft · 2.94 m |
Source · Traktorenlexikon, “SAME Antares 100”
Which tractors compare with an Antares 100?
Within 10% of its 98.6 hp of claimed engine power, the same type, and first built within 15 years of it.
- Hürlimann H-468 "Prestige"98.6 hp engine, claimed · 1989–1998Side by side with the Antares 100 →
- ZETOR 10111/1014598.6 hp engine, claimed · 1984–1990Side by side with the Antares 100 →
- SAME Silver 100.4 DT98.6 hp engine, claimed · 1995–2004Side by side with the Antares 100 →
- International Harvester 1055 XL98.6 hp engine, claimed · 1981–1982Side by side with the Antares 100 →
- VALMET 6550 HiTech98.6 hp engine, claimed · 1998–2006Side by side with the Antares 100 →
- Agco RT-10098.6 hp engine, claimed · 2004–2005Side by side with the Antares 100 →
Everything else people ask
Is an Antares 100 two-wheel drive or four-wheel drive?
The SAME Antares 100 is four-wheel drive (4WD).
What PTO does an Antares 100 have?
An Antares 100 has a independent 540/1000/540E/1000E rpm rear PTO.
