- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 2008–2012
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

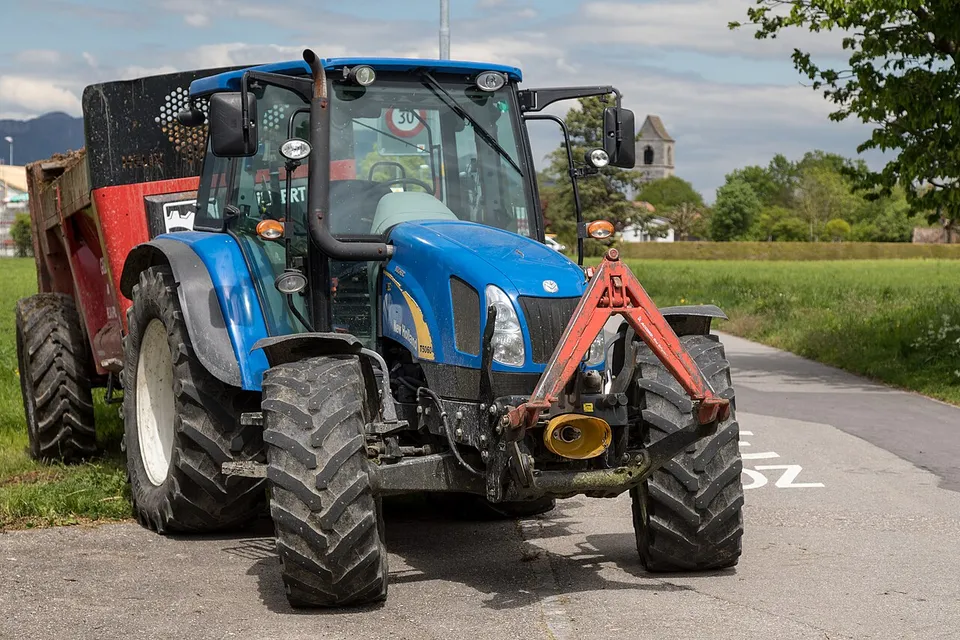

New Holland T 5060 specs: hp, weight, years
IVECO-NEF F4CE 9484 four-cylinder diesel. The manufacturer claimed 105 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
105 hp
78 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “New Holland T5060”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 8,455 lb
- 3-point lift
- 12,655 lb
- Hyd. flow
- 17.7 gpm
- Top speed
- 18.6–24.9 mph
New Holland T 5060 specs: key facts
The New Holland T 5060 was built from 2008 to 2012.
The New Holland T 5060 has a claimed engine power (gross or net not stated) of 78 kW (105 hp); it has no measured PTO figure.
The New Holland T 5060 was offered in two-wheel-drive and four-wheel-drive versions.
The New Holland T 5060 has a IVECO-NEF F4CE 9484 engine, a 4-cylinder 4.49 L diesel unit.
The New Holland T 5060 weighs 3,835 kg (8,455 lb) unladen.
The New Holland T 5060 has an independent rear PTO running at 540/540E/1000 rpm.
The three-point hitch of the New Holland T 5060 lifts 5,740 kg (12,655 lb) at the lower-link ends.
The hydraulic pump of the New Holland T 5060 delivers 67.1 L/min (17.7 gpm).
Source · Traktorenlexikon, “New Holland T5060”
How much horsepower does a T 5060 have?
The only figure for the T 5060 is 105 hp (78 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “New Holland T5060”
What engine is in a T 5060?
A T 5060 has an IVECO-NEF F4CE 9484, a 4-cylinder 4.49 L diesel engine.
| Make & model | IVECO-NEF F4CE 9484 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 273.7 ci · 4.49 L |
| Max torque | 317 lb·ft · 430 N·m @ 900 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “New Holland T5060”
How much will a T 5060 lift, and what is its hydraulic flow?
A T 5060 lifts 12,655 lb (5,740 kg) at the lower-link ends.
| Pump flow | 17.7 gpm · 67.1 L/min |
|---|---|
| Pressure | 3,336 psi · 230 bar |
| Lift at ends | 12,655 lb · 5,740 kg |
| Rear PTO | Independent, engine-driven, 540/540E/1000 rpm @ 2,199 engine rpmEngages under load |
Source · Traktorenlexikon, “New Holland T5060”
What transmission does a T 5060 have?
Transmission specifications for the T 5060 are below.
| Clutch | Electrohydraulically actuated wet multi-disc clutch |
|---|---|
| Steering | Hydrostatic Danfoss steering with two double-acting steering cylinders |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “New Holland T5060”
How much does a T 5060 weigh?
A T 5060 weighs 8,455 lb (3,835 kg) unladen.
| Unladen weight | 8,455 lb · 3,835 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 14,991 lb · 6,800 kg |
| Wheelbase | 92.2 in · 2,342 mmtwo-wheel-drive version |
| Length | 158.7 in · 4,030 mm |
| Width | 84.2 in · 2,138 mm |
| Height | 100.2 in · 2,546 mm |
| Ground clearance | 19.2 in · 488 mm |
| Front track | 58.8–82.4 in · 1,494–2,094 mmtwo-wheel-drive version |
| Rear track | 56.1–84.2 in · 1,425–2,138 mm |
Source · Traktorenlexikon, “New Holland T5060”
What oil does a T 5060 take, and how much?
Fluid capacities for the T 5060 are below.
| System | Capacity |
|---|---|
| Transmission & hydraulic | 51.8 qt · 49.0 LSource: Traktorenlexikon, “New Holland T5060” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a T 5060?
Within 10% of its 105 hp of claimed engine power, the same type, and first built within 15 years of it.
- Deutz-Fahr Agrotron 6.05105.0 hp engine, claimed · 1995–1997Side by side with the T 5060 →
- Massey Ferguson 5450A103.7 hp engine, claimed · 2011–2013Side by side with the T 5060 →
- Deutz-Fahr Agrotron 110 MK3103.7 hp engine, claimed · 2000–2003Side by side with the T 5060 →
- Massey Ferguson 6260 (A)103.7 hp engine, claimed · 1999–2003Side by side with the T 5060 →
- Massey Ferguson 6265 (A)103.7 hp engine, claimed · 1999–2003Side by side with the T 5060 →
- Deutz-Fahr Agrotron 110103.7 hp engine, claimed · 1997–2000Side by side with the T 5060 →
Common questions about the New Holland T 5060
Is a T 5060 two-wheel drive or four-wheel drive?
The New Holland T 5060 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a T 5060 have?
A T 5060 has a independent 540/540E/1000 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “New Holland T5060”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: New Holland T5060 — CC BY-SA 4.0, WIKIBOOKS-TL-98701 · revision 993215. Wikibooks contributors (Traktorenlexikon). Original document
