- Rigid chassis
- WhichTractor size: Compact
- No lab test on file
- 1961–1969
- 2,018 built
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

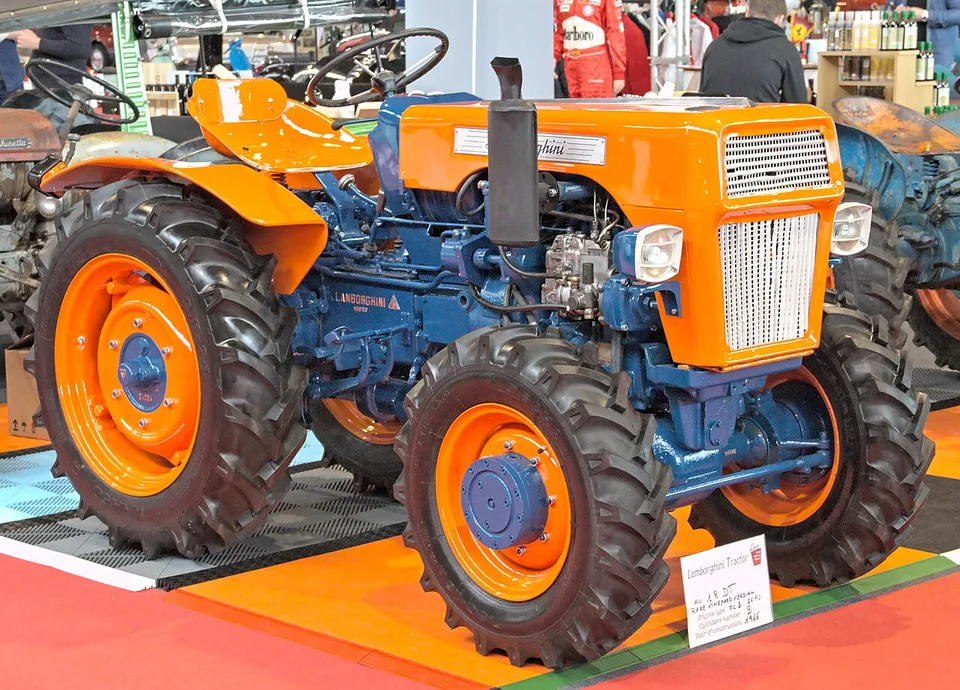

Lamborghini 1 R (DT) specs: hp, weight, years
LAMBORGHINI FL-2 two-cylinder diesel. The manufacturer claimed 25.6 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
25.6 hp
19.1 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Lamborghini 1 R (1961/1967)”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,535 lb
- Top speed
- 12.4 mph
Lamborghini 1 R (DT) specs: key facts
The Lamborghini 1 R (DT) was built from 1961 to 1969.
The Lamborghini 1 R (DT) has a claimed engine power (gross or net not stated) of 19.1 kW (25.6 hp); it has no measured PTO figure.
The Lamborghini 1 R (DT) was offered in two-wheel-drive and four-wheel-drive versions.
The Lamborghini 1 R (DT) has a LAMBORGHINI FL-2 engine, a 2-cylinder 1.46 L diesel unit.
The Lamborghini 1 R (DT) weighs 1,150 kg (2,535 lb) unladen.
The Lamborghini 1 R (DT) has a dependent rear PTO running at 540 rpm.
Source · Traktorenlexikon, “Lamborghini 1 R (1961/1967)”
_Retro_Classics_2020_IMG_0190.jpg){kind=link}
How much horsepower does a 1 R (DT) have?
The only figure for the 1 R (DT) is 25.6 hp (19.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Lamborghini 1 R (1961/1967)”
What engine is in a 1 R (DT)?
A 1 R (DT) has an LAMBORGHINI FL-2, a 2-cylinder 1.46 L diesel engine.
| Make & model | LAMBORGHINI FL-2 |
|---|---|
| Cylinders | 2, air-cooled |
| Displacement | 89.2 ci · 1.46 L |
Source · Traktorenlexikon, “Lamborghini 1 R (1961/1967)”
How much will a 1 R (DT) lift?
Hydraulic and PTO specifications for the 1 R (DT) are below.
| Rear PTO | Dependent, transmission-driven, 540 rpm @ 1,850 engine rpm |
|---|---|
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Lamborghini 1 R (1961/1967)”
What transmission does a 1 R (DT) have?
Transmission specifications for the 1 R (DT) are below.
| Clutch | Pedal operated dry single plate clutch |
|---|---|
| Brakes | Pedal operated internal expanding brake acting on rear wheels |
| Steering | Mechanical gear steering |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Lamborghini 1 R (1961/1967)”
How much does a 1 R (DT) weigh?
A 1 R (DT) weighs 2,535 lb (1,150 kg) unladen.
| Unladen weight | 2,535 lb · 1,150 kgDT: 1,350 |
|---|---|
| Wheelbase | 54.3 in · 1,380 mm |
| Length | 89.4 in · 2,270 mmDT: 2,350 |
| Width | 52.4 in · 1,330 mmDT: 1,450 |
| Height | 43.3 in · 1,100 mm |
| Ground clearance | 13.0 in · 330 mm |
| Front track | 45.7–60.6 in · 1,160–1,540 mm |
| Rear track | 45.3–59.1 in · 1,150–1,500 mm |
| Turning radius, braked | 8.9 ft · 2.72 m |
Source · Traktorenlexikon, “Lamborghini 1 R (1961/1967)”
Which tractors compare with a 1 R (DT)?
Within 10% of its 21.1 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Ford 8N21.1 hp PTO, claimed · 1947–1952Side by side with the 1 R (DT) →
- Güldner ALB21 hp PTO, claimed · 1955–1958Side by side with the 1 R (DT) →
- Fahr D 16021 hp PTO, claimed · 1954Side by side with the 1 R (DT) →
- Fahr D 160H21 hp PTO, claimed · 1954–1956Side by side with the 1 R (DT) →
- Fahr D 22 PH21 hp PTO, claimed · 1951–1953Side by side with the 1 R (DT) →
- Renault N 7220.6 hp PTO, claimed · 1960–1964Side by side with the 1 R (DT) →
Common questions about the Lamborghini 1 R (DT)
Is a 1 R (DT) two-wheel drive or four-wheel drive?
The Lamborghini 1 R (DT) was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a 1 R (DT) have?
A 1 R (DT) has a dependent 540 rpm rear PTO on a 1 3/8"- 6 splines shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Lamborghini 1 R (1961/1967)”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Lamborghini 1 R (1961/1967) — CC BY-SA 4.0, WIKIBOOKS-TL-113349 · revision 991458. Wikibooks contributors (Traktorenlexikon). Original document
