- Rigid chassis
- WhichTractor size: Standard-size
- Not independently tested
- 1976–1981
- 9,578 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

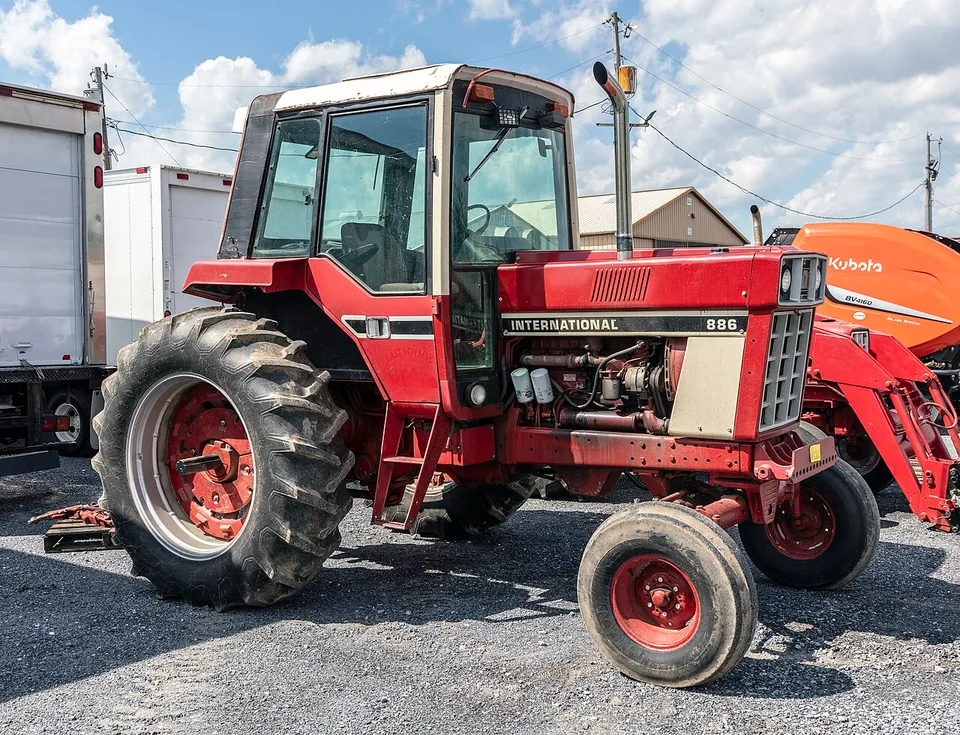

International Harvester 886 Full specifications
INTERNATIONAL HARVESTER D-360 six-cylinder diesel. The manufacturer claimed 86.8 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
86.8 hp
64.7 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “IHC 886”, claimed
- Weight
- 11,740 lb
- 3-point lift
- 7,055 lb
- Top speed
- 18.6 mph
International Harvester 886 specs: key facts
The International Harvester 886 was built from 1976 to 1981.
The International Harvester 886 has a claimed engine power (gross or net not stated) of 64.7 kW (86.8 hp); it has no measured PTO figure.
The International Harvester 886 was offered in two-wheel-drive and four-wheel-drive versions.
The International Harvester 886 has a INTERNATIONAL HARVESTER D-360 engine, a 6-cylinder diesel unit.
The International Harvester 886 weighs 5,325 kg (11,740 lb) unladen.
The International Harvester 886 has a rear PTO running at 540/1000 rpm.
The three-point hitch of the International Harvester 886 lifts 3,200 kg (7,055 lb) at the lower-link ends.
Source · Traktorenlexikon, “IHC 886”
How much horsepower does an 886 have?
The only figure for the 886 is 86.8 hp (64.7 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “IHC 886”
What engine is in an 886?
An 886 has an INTERNATIONAL HARVESTER D-360, a 6-cylinder diesel engine.
| Make & model | INTERNATIONAL HARVESTER D-360 |
|---|---|
| Cylinders | 6, liquid-cooled |
| Max torque | 261 lb·ft · 354 N·m @ 1,670 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “IHC 886”
How much will an 886 lift?
An 886 lifts 7,055 lb (3,200 kg) at the lower-link ends of its Category 2 three-point hitch.
| Hitch category | Category 2 |
|---|---|
| Lift at ends | 7,055 lb · 3,200 kg |
| Rear PTO | 540/1000 rpm @ 2,106 engine rpm |
Source · Traktorenlexikon, “IHC 886”
What transmission does an 886 have?
Transmission specifications for the 886 are below.
| Top speed | 18.6 mph · 30 km/h |
|---|
Source · Traktorenlexikon, “IHC 886”
How much does an 886 weigh?
An 886 weighs 11,740 lb (5,325 kg) unladen.
| Unladen weight | 11,740 lb · 5,325 kg |
|---|---|
| Wheelbase | 104.8 in · 2,662 mm |
| Length | 165.0 in · 4,191 mm |
| Width | 102.0 in · 2,591 mm |
| Height | 112.0 in · 2,845 mm |
| Ground clearance | 13.0 in · 330 mm |
| Front track | 60.0–84.0 in · 1,524–2,134 mm |
| Rear track | 66.0–113.5 in · 1,676–2,883 mm |
| Turning radius, braked | 11.5 ft · 3.51 m |
Source · Traktorenlexikon, “IHC 886”
Which tractors compare with an 886?
Within 10% of its 86.8 hp of claimed engine power, the same type, and first built within 15 years of it.
- AGRIFULL Rodeo 90 (DT)86.8 hp engine, claimed · 1977–1980Side by side with the 886 →
- SAME Laser 90 (DT)86.8 hp engine, claimed · 1985–1991Side by side with the 886 →
- SAME Explorer 90 II (DT)86.8 hp engine, claimed · 1989–1998Side by side with the 886 →
- Massey Ferguson MF 100486.9 hp engine, claimed · 1978–1990Side by side with the 886 →
- Massey Ferguson MF 1080 (A)86.9 hp engine, claimed · 1969–1974Side by side with the 886 →
- Massey Ferguson MF 69887 hp engine, claimed · 1982–1984Side by side with the 886 →
Everything else people ask
Is an 886 two-wheel drive or four-wheel drive?
The International Harvester 886 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does an 886 have?
An 886 has a 540/1000 rpm rear PTO.
