- Rigid chassis
- WhichTractor size: Utility
- Not independently tested
- 2012–2015
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

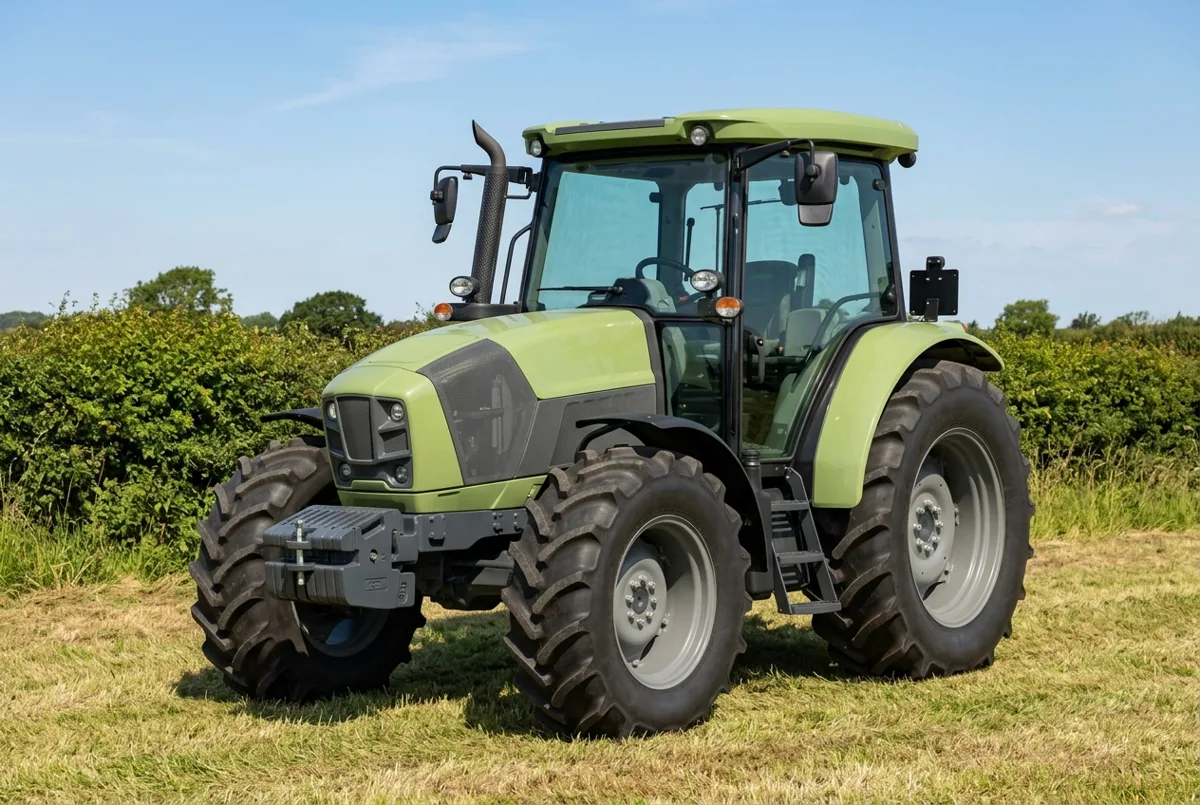

Hürlimann XB 110 MAX Full specifications
KHD TD 2012 L 04-2V (Tier-III) four-cylinder diesel. The manufacturer claimed 107.5 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
107.5 hp
80.2 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Hürlimann XB MAX 110”, claimed
- Weight
- 9,039 lb
- 3-point lift
- 11,684 lb
- Hyd. flow
- 15.2 gpm
- Top speed
- 24.9 mph
Hürlimann XB 110 MAX specs: key facts
The Hürlimann XB 110 MAX was built from 2012 to 2015.
The Hürlimann XB 110 MAX has a claimed engine power (gross or net not stated) of 80.2 kW (107.5 hp); it has no measured PTO figure.
The Hürlimann XB 110 MAX is four-wheel drive (4WD).
The Hürlimann XB 110 MAX has a KHD TD 2012 L 04-2V (Tier-III) engine, a 4-cylinder 4.04 L diesel unit.Source 2
The Hürlimann XB 110 MAX weighs 4,100 kg (9,039 lb) unladen.
The Hürlimann XB 110 MAX has a rear PTO running at 540/1000 rpm.
The three-point hitch of the Hürlimann XB 110 MAX lifts 5,300 kg (11,684 lb) at the lower-link ends.
The hydraulic pump of the Hürlimann XB 110 MAX delivers 57.6 L/min (15.2 gpm).
Source · Traktorenlexikon, “Hürlimann XB MAX 110”
How much horsepower does an XB 110 MAX have?
The only figure for the XB 110 MAX is 107.5 hp (80.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Hürlimann XB MAX 110”
What engine is in an XB 110 MAX?
An XB 110 MAX has a KHD TD 2012 L 04-2V (Tier-III), a 4-cylinder 4.04 L diesel engine.
| Make & model | KHD TD 2012 L 04-2V (Tier-III)Source 2 |
|---|---|
| Cylinders | 4, liquid-cooledSource 2 |
| Displacement | 246.4 ci · 4.04 LSource 2 |
| Max torque | 295 lb·ft · 400 N·m @ 1,400 rpm |
| Injection | common-rail injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Hürlimann XB MAX 110”
How much will an XB 110 MAX lift, and what is its hydraulic flow?
An XB 110 MAX lifts 11,684 lb (5,300 kg) at the lower-link ends of its Category 2 three-point hitch.
| System | Load sensing |
|---|---|
| Pump flow | 15.2 gpm · 57.6 L/min |
| Pressure | 3,046 psi · 210 bar |
| Hitch category | Category 2 |
| Lift at ends | 11,684 lb · 5,300 kg |
| Rear PTO | 540/1000 rpm @ 2,083 engine rpm |
Source · Traktorenlexikon, “Hürlimann XB MAX 110”
What transmission does an XB 110 MAX have?
Transmission specifications for the XB 110 MAX are below.
| Clutch | Electro-hydraulically operated under-load-shiftable wet SDF multi-disc clutch |
|---|---|
| Steering | Hydrostatic DANFOSS steering with separate oil supply |
| Top speed | 24.9 mph · 40 km/h |
Source · Traktorenlexikon, “Hürlimann XB MAX 110”
How much does an XB 110 MAX weigh?
An XB 110 MAX weighs 9,039 lb (4,100 kg) unladen.
| Unladen weight | 9,039 lb · 4,100 kg |
|---|---|
| Maximum permissible mass | 14,991 lb · 6,800 kg |
| Wheelbase | 92.1 in · 2,340 mm |
| Length | 157.1 in · 3,990 mm |
| Width | 80.7 in · 2,050 mm |
| Height | 101.6 in · 2,580 mm |
| Ground clearance | 19.7 in · 500 mm |
| Front track | 63.0–82.7 in · 1,600–2,100 mmWikibooks gives one track for both axles |
| Rear track | 63.0–82.7 in · 1,600–2,100 mmWikibooks gives one track for both axles |
Source · Traktorenlexikon, “Hürlimann XB MAX 110”
Which tractors compare with an XB 110 MAX?
Within 10% of its 107.5 hp of claimed engine power, the same type, and first built within 15 years of it.
- Renault Temis 610107.5 hp engine, claimed · 1999–2005Side by side with the XB 110 MAX →
- ZETOR 11441 (2007-2009)108.5 hp engine, claimed · 2007–2009Side by side with the XB 110 MAX →
- Claas Ares 617 ATZ108.5 hp engine, claimed · 2005–2007Side by side with the XB 110 MAX →
- Lamborghini R.1106 (DT)108.5 hp engine, claimed · from 2004Side by side with the XB 110 MAX →
- ZETOR 11441108.5 hp engine, claimed · 2002–2007Side by side with the XB 110 MAX →
- Hürlimann XT 911108.5 hp engine, claimed · 2000–2003Side by side with the XB 110 MAX →
Everything else people ask
Is an XB 110 MAX two-wheel drive or four-wheel drive?
The Hürlimann XB 110 MAX is four-wheel drive (4WD).
What PTO does an XB 110 MAX have?
An XB 110 MAX has a 540/1000 rpm rear PTO.
Where this page comes from
Compiled from Traktorenlexikon, “Hürlimann XB MAX 110”; and Traktorenlexikon, “Hürlimann XB MAX 85”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Hürlimann XB MAX 110 — CC BY-SA 4.0, WIKIBOOKS-TL-105432 · revision 896344. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Hürlimann XB MAX 85 — CC BY-SA 4.0, WIKIBOOKS-TL-74999 · revision 865602. Wikibooks contributors (Traktorenlexikon). Original document
