Fiat 411R specs: hp, weight, years

FIAT 615.000 diesel. Claimed engine power varies by configuration. No laboratory has tested one, so there is no measured figure at the shaft.

Weight
3,968–4,409 lb
Top speed
13.7–14.3 mph

Fiat 411R specs: key facts

  • The Fiat 411R was first built in 1958.Source 1

  • The claimed engine power (gross or net not stated) of the Fiat 411R is 29.4–29.4 kW (39.4–39.4 hp), depending on configuration.

  • The Fiat 411R was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.Source 1

  • The Fiat 411R weighs 1,800–2,000 kg (3,968–4,409 lb) unladen.Source 1

  • The Fiat 411R has a dependent rear PTO running at 540 rpm.

  • The hydraulic pump of the Fiat 411R delivers 16.5 L/min (4.4 gpm).

Source · Traktorenlexikon, “Fiat 411 R/45/441 R”

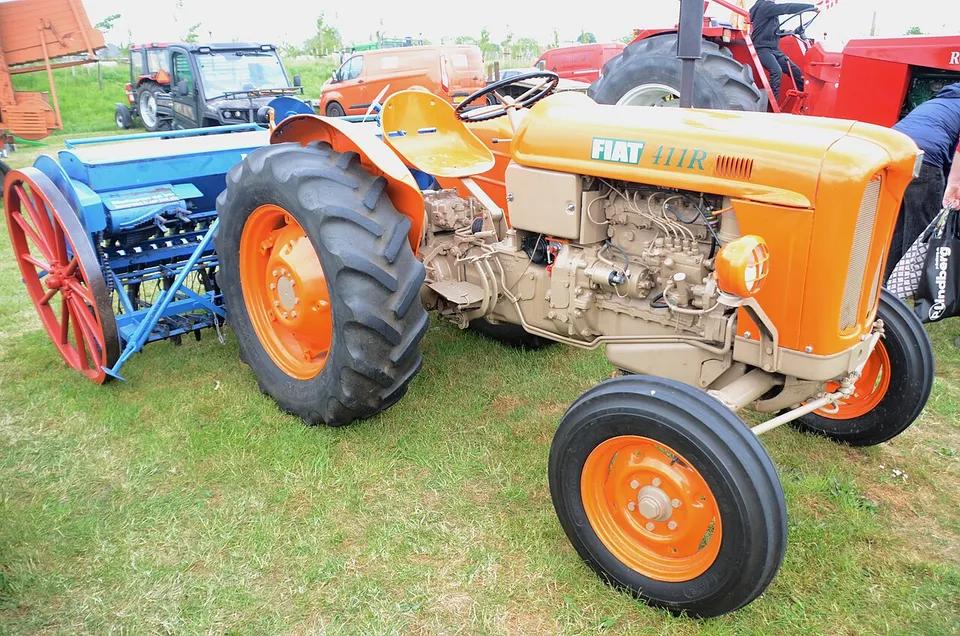

Fiat 411R tractor
Photo: Hjart, CC BY-SA 4.0 via Wikimedia Commons · Wrong photo?

How much horsepower does a 411R have?

No independent test of the 411R is on record. The only figures are claimed engine power of 39.4–39.4 hp (29.4–29.4 kW), varying by configuration, which is not power at the shaft.

Source · Traktorenlexikon, “Fiat 411 R/45/441 R”

How much will a 411R lift?

Hydraulic and PTO specifications for the 411R are below.

Hydraulics & PTO — 411R hydraulics and PTO specifications
Pump flow4.4 gpm · 16.5 L/minOn record for 1 of 3 configurations
Pressure2,843 psi · 196 barOn record for 1 of 3 configurations
Hitch categoryCategory 1On record for 1 of 3 configurations

Source · Traktorenlexikon, “Fiat 411 R/45/441 R”

What transmission does a 411R have?

Transmission specifications for the 411R are below.

Transmission — 411R transmission specifications
ClutchPedal-operated dry single-plate clutchOn record for 1 of 3 configurations
SteeringMechanical gear steeringOn record for 1 of 3 configurations
Top speed13.7–14.3 mph · 22–23 km/hSource 1

Source · Traktorenlexikon, “Fiat 411 R/45/441 R”

How much does a 411R weigh?

A 411R weighs 3,968–4,409 lb (1,800–2,000 kg) unladen.

Weights & dimensions — 411R weights and dimensions
Unladen weight3,968–4,409 lb · 1,800–2,000 kgSource 1
Wheelbase71.9–72.6 in · 1,825–1,845 mmVaries by configuration: 1,825 mm or 1,845 mmOn record for 2 of 3 configurationstwo-wheel-drive versionfour-wheel-drive version
Length116.1 in · 2,950 mmSource 1
Width61.0 in · 1,550 mmSource 1
Height57.1 in · 1,450 mmSource 1
Ground clearance18.9 in · 480 mmOn record for 1 of 3 configurations
Front track50.4–78.0 in · 1,280–1,980 mmOn record for 1 of 3 configurations
Rear track47.2–74.8 in · 1,200–1,900 mmOn record for 1 of 3 configurations
Turning radius, braked9.8 ft · 3.00 mOn record for 1 of 3 configurations

Source · Traktorenlexikon, “Fiat 411 R/45/441 R”

What oil does a 411R take, and how much?

A 411R engine takes 7.9 qt (7.5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.

411R fluid capacities, grades and service intervals
SystemCapacity
Engine oil7.9 qt · 7.5 LSource: Traktorenlexikon, “Fiat 411 R/45/441 R” · single source, not independently verified
Transmission13.2 qt · 12.5 LSource: Traktorenlexikon, “Fiat 411 R/45/441 R” · single source, not independently verified
Hydraulic3.4 qt · 3.2 LSource: Traktorenlexikon, “Fiat 411 R/45/441 R” · single source, not independently verified
Final drives2.1 qt · 2.0 LSource: Traktorenlexikon, “Fiat 411 R/45/441 R” · single source, not independently verified
Cooling system12.7 qt · 12.0 LSource: Traktorenlexikon, “Fiat 411 R/45/441 R” · single source, not independently verified

Always confirm against the operator’s manual for your machine before service.

Common questions about the Fiat 411R

Is a 411R two-wheel drive or four-wheel drive?

The Fiat 411R was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.

Sources and how this page was built

Compiled from Traktorenlexikon, “Fiat 411 R/45/441 R”; Traktorenlexikon, “Fiat 411 R”; and Traktorenlexikon, “Fiat 415/415 DT”.

Sources checked

14 SEP 2026

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. Traktorenlexikon: Fiat 411 R — CC BY-SA 4.0, WIKIBOOKS-TL-68241 · revision 563333. Wikibooks contributors (Traktorenlexikon). Original document
  2. Traktorenlexikon: Fiat 411 R/45/441 R — CC BY-SA 4.0, WIKIBOOKS-TL-108320 · revision 1072779. Wikibooks contributors (Traktorenlexikon). Original document
