WhichTractor
  • Crawler
  • WhichTractor size: Compact
  • Not independently tested
  • 1964–1965

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Fiat 331 C Full specifications

FIAT 605 D.000 four-cylinder diesel. The manufacturer claimed 29.6 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

29.6 hp

22.1 kW as stated by the source

Not independently tested

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Fiat 331-C”, claimed

Weight
3,858 lb
Hyd. flow
4.4 gpm
Top speed
6.8 mph

Fiat 331 C specs: key facts

  • The Fiat 331 C was built from 1964 to 1965.

  • The Fiat 331 C has a claimed engine power (gross or net not stated) of 22.1 kW (29.6 hp); it has no measured PTO figure.

  • The Fiat 331 C is a tracked machine.

  • The Fiat 331 C has a FIAT 605 D.000 engine, a 4-cylinder 1.90 L diesel unit.Source 1

  • The Fiat 331 C weighs 1,750 kg (3,858 lb) unladen.

  • The Fiat 331 C has a rear PTO running at 540 rpm.

  • The hydraulic pump of the Fiat 331 C delivers 16.5 L/min (4.4 gpm).

Source · Traktorenlexikon, “Fiat 331-C”

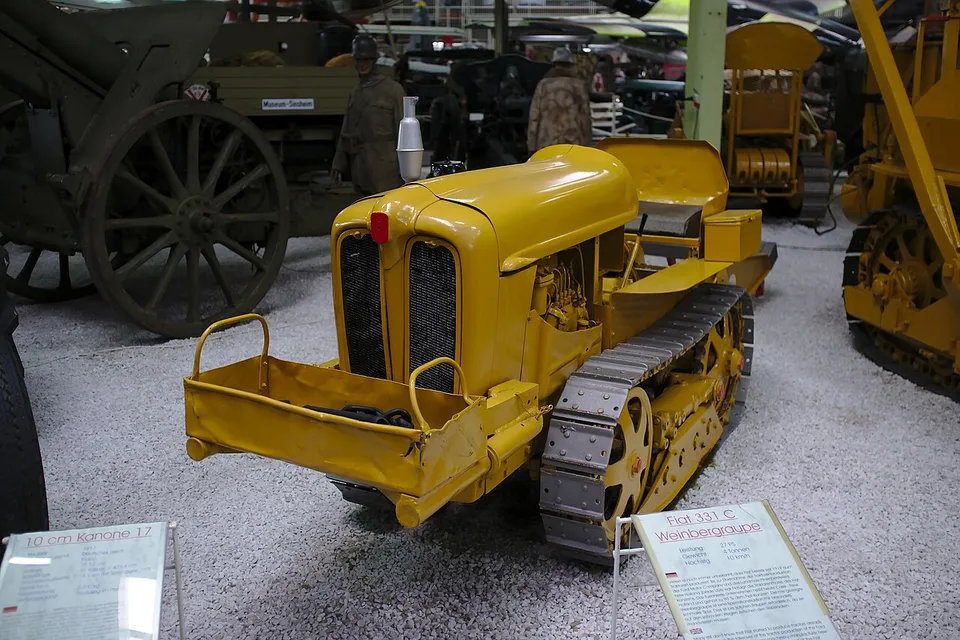

Fiat 331 C tractor
Photo: Triple-green, CC BY-SA 2.0 via Wikimedia Commons · Wrong photo?

How much horsepower does a 331 C have?

The only figure for the 331 C is 29.6 hp (22.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
29.6 hp

Source · Traktorenlexikon, “Fiat 331-C”

What engine is in a 331 C?

A 331 C has an FIAT 605 D.000, a 4-cylinder 1.90 L diesel engine.

Engine — 331 C engine specifications
Make & modelFIAT 605 D.000
Cylinders4, liquid-cooledSource 2
Displacement116.0 ci · 1.90 L
Max torque74 lb·ft · 101 N·m @ 1,600 rpmSource 2
Electrical system24 VSource 2

Source · Traktorenlexikon, “Fiat 311-C”

How much will a 331 C lift, and what is its hydraulic flow?

Hydraulic and PTO specifications for the 331 C are below.

Hydraulics & PTO — 331 C hydraulics and PTO specifications
Pump flow4.4 gpm · 16.5 L/min
Pressure2,843 psi · 196 bar
Hitch categoryCategory 2
Rear PTO540 rpm @ 1,845 engine rpm

Source · Traktorenlexikon, “Fiat 331-C”

What transmission does a 331 C have?

Transmission specifications for the 331 C are below.

Transmission — 331 C transmission specifications
ClutchHand lever operated dry single plate clutch with dead center engagement
Top speed6.8 mph · 11.0 km/h

Source · Traktorenlexikon, “Fiat 331-C”

How much does a 331 C weigh?

A 331 C weighs 3,858 lb (1,750 kg) unladen.

Weights & dimensions — 331 C weights and dimensions
Unladen weight3,858 lb · 1,750 kg
Wheelbase48.2 in · 1,225 mm
Length98.4 in · 2,500 mm
Width40.9 in · 1,040 mm
Height48.2 in · 1,225 mm
Ground clearance10.6 in · 270 mm
Front track31.5 in · 800 mmWikibooks gives one track for both axles
Rear track31.5 in · 800 mmWikibooks gives one track for both axles

Source · Traktorenlexikon, “Fiat 331-C”

Everything else people ask

Is a 331 C two-wheel drive or four-wheel drive?

The Fiat 331 C is a tracked machine.

What PTO does a 331 C have?

A 331 C has a 540 rpm rear PTO.

Where this page comes from

Compiled from Traktorenlexikon, “Fiat 311-C”; and Traktorenlexikon, “Fiat 331-C”.

Last verified

Not yet verified

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. Traktorenlexikon: Fiat 311-C — CC BY-SA 4.0, WIKIBOOKS-TL-121922 · revision 1076465. Wikibooks contributors (Traktorenlexikon). Original document
  2. Traktorenlexikon: Fiat 331-C — CC BY-SA 4.0, WIKIBOOKS-TL-121923 · revision 1076466. Wikibooks contributors (Traktorenlexikon). Original document
