- Rigid chassis
- WhichTractor size: High-power
- Not independently tested
- 1979–1984
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

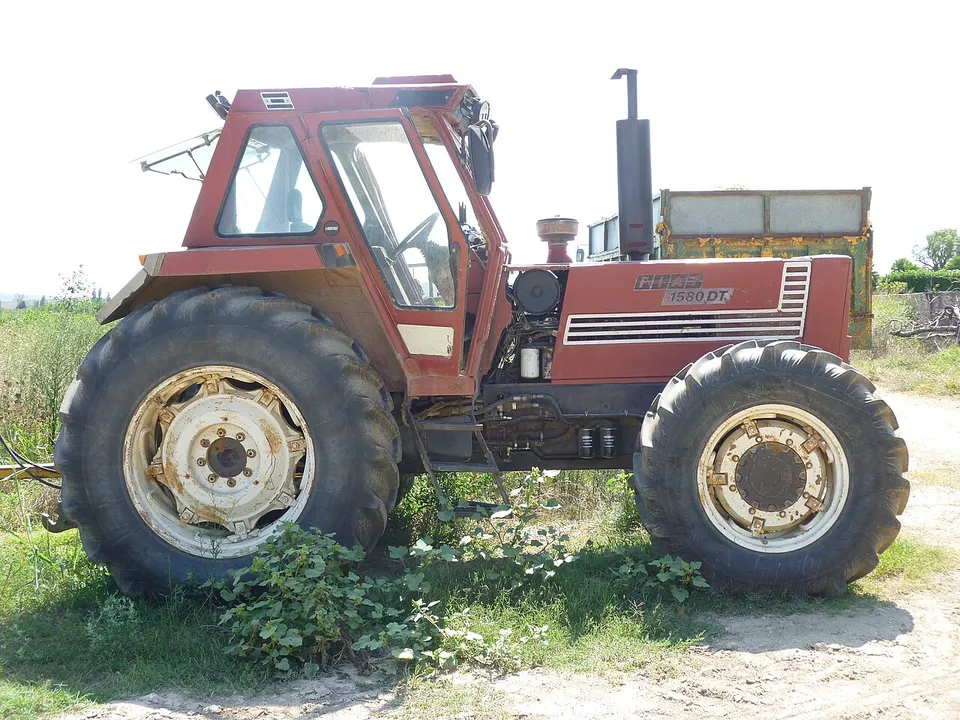

Fiat 1580 (DT) Full specifications
FIAT-IVECO 8365.25.500 or 8365.05.501 six-cylinder diesel. The manufacturer claimed 153.0 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
153.0 hp
114.1 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fiat 1580 DT”, claimed
- Weight
- 14,330 lb
- 3-point lift
- 10,878 lb
- Hyd. flow
- 14.7 gpm
- Top speed
- 15.5–18.6 mph
Fiat 1580 (DT) specs: key facts
The Fiat 1580 (DT) was built from 1979 to 1984.
The Fiat 1580 (DT) has a claimed engine power (gross or net not stated) of 114.1 kW (153.0 hp); it has no measured PTO figure.
The Fiat 1580 (DT) was offered in two-wheel-drive and four-wheel-drive versions.
The Fiat 1580 (DT) has a FIAT-IVECO 8365.25.500 or 8365.05.501 engine, a 6-cylinder 8.10 L diesel unit.
The Fiat 1580 (DT) weighs 6,500 kg (14,330 lb) unladen.
The Fiat 1580 (DT) has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Fiat 1580 (DT) lifts 4,934 kg (10,878 lb) at the lower-link ends.
The hydraulic pump of the Fiat 1580 (DT) delivers 55.8 L/min (14.7 gpm).
Source · Traktorenlexikon, “Fiat 1580 DT”
How much horsepower does a 1580 (DT) have?
The only figure for the 1580 (DT) is 153.0 hp (114.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fiat 1580 DT”
What engine is in a 1580 (DT)?
A 1580 (DT) has a FIAT-IVECO 8365.25.500 or 8365.05.501, a 6-cylinder 8.10 L diesel engine.
| Make & model | FIAT-IVECO 8365.25.500 or 8365.05.501 |
|---|---|
| Cylinders | 6, liquid-cooled |
| Displacement | 494.4 ci · 8.10 L |
| Max torque | 423–456 lb·ft · 573–618 N·m @ 1,400 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Fiat 1580 DT”
How much will a 1580 (DT) lift, and what is its hydraulic flow?
A 1580 (DT) lifts 10,878 lb (4,934 kg) at the lower-link ends.
| Pump flow | 14.7 gpm · 55.8 L/min |
|---|---|
| Pressure | 3,336–3,481 psi · 230–240 bar |
| Lift at ends | 10,878 lb · 4,934 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 1,952 engine rpmEngages under load |
Source · Traktorenlexikon, “Fiat 1580 DT”
What transmission does a 1580 (DT) have?
Transmission specifications for the 1580 (DT) are below.
| Clutch | Pedal-operated Ferodo or LuK single-plate clutch |
|---|---|
| Steering | Hydrostatic Danfoss steering |
| Top speed | 15.5–18.6 mph · 25–30 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Fiat 1580 DT”
How much does a 1580 (DT) weigh?
A 1580 (DT) weighs 14,330 lb (6,500 kg) unladen.
| Unladen weight | 14,330 lb · 6,500 kgDT: 7,100 |
|---|---|
| Maximum permissible mass | 22,046 lb · 10,000 kg |
| Maximum front axle load | 8,598 lb · 3,900 kg |
| Maximum rear axle load | 14,551 lb · 6,600 kg |
| Wheelbase | 116.7 in · 2,963 mmDT: 2,885 |
| Length | 170.3 in · 4,325 mm |
| Width | 92.9 in · 2,360 mm |
| Height | 109.6 in · 2,785 mm |
| Ground clearance | 27.4 in · 695 mmDT: 495 |
| Front track | 63.0–82.7 in · 1,600–2,100 mmDT: 1,800-2,200 |
| Rear track | 59.8–87.4 in · 1,520–2,220 mm |
| Turning radius, braked | 15.1 ft · 4.60 mDT: 5,720 |
Source · Traktorenlexikon, “Fiat 1580 DT”
Which tractors compare with a 1580 (DT)?
Within 10% of its 133.3 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- Ford 8730133.0 hp PTO, claimed · 1989–1994Side by side with the 1580 (DT) →
- International Harvester 1086133.6 hp PTO, claimed · 1976–1979Side by side with the 1580 (DT) →
- Steyr 8170 a134.5 hp PTO, claimed · 1980–1986Side by side with the 1580 (DT) →
- Hürlimann H-6160 A134.6 hp PTO, claimed · 1979–1983Side by side with the 1580 (DT) →
- Case-IH Magnum 7110132.0 hp PTO, claimed · 1988–1993Side by side with the 1580 (DT) →
- Case-IH Magnum 7210132.0 hp PTO, claimed · 1994–1997Side by side with the 1580 (DT) →
Everything else people ask
Is a 1580 (DT) two-wheel drive or four-wheel drive?
The Fiat 1580 (DT) was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a 1580 (DT) have?
A 1580 (DT) has a independent 540/1000 rpm rear PTO.
Where this page comes from
Compiled from Traktorenlexikon, “Fiat 1580 DT”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Fiat 1580 DT — CC BY-SA 4.0, WIKIBOOKS-TL-108516 · revision 1075145. Wikibooks contributors (Traktorenlexikon). Original document
