- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1938–1948
- 2,258 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

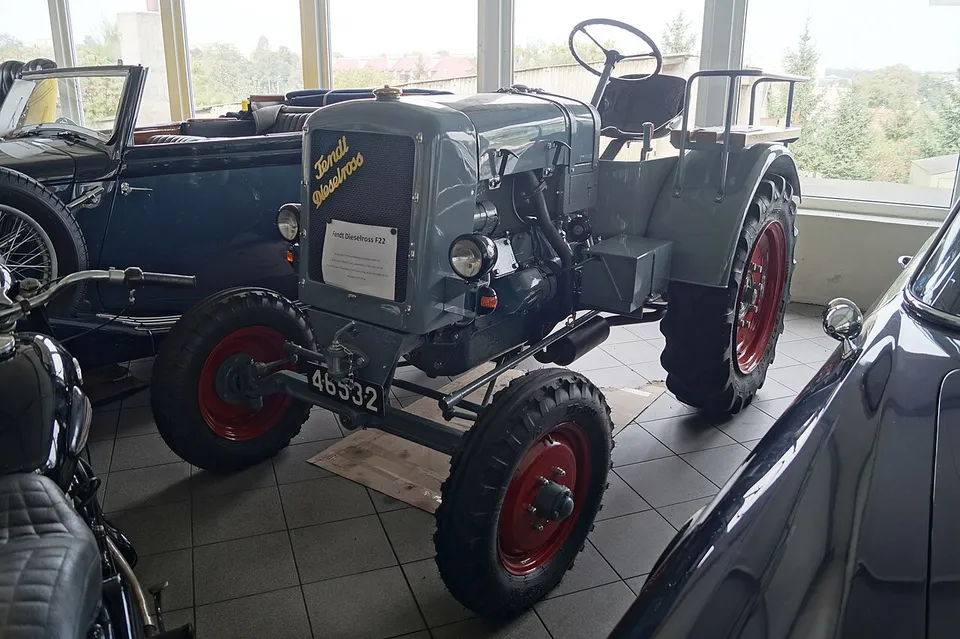

Fendt Dieselross F22 specs: hp, weight, years
Deutz F2M 414 two-cylinder diesel. The manufacturer claimed 21 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
21 hp
16 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fendt Dieselross F22”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 3,428 lb
- Top speed
- 11.2 mph
Fendt Dieselross F22 specs: key facts
The Fendt Dieselross F22 was built from 1938 to 1948.
The Fendt Dieselross F22 has a claimed engine power (gross or net not stated) of 16 kW (21 hp); it has no measured PTO figure.
The Fendt Dieselross F22 is two-wheel drive (2WD).
The Fendt Dieselross F22 has a Deutz F2M 414 engine, a 2-cylinder 2.20 L diesel unit.Source 1
The Fendt Dieselross F22 weighs 1,555 kg (3,428 lb) unladen.
The Fendt Dieselross F22 has an independent rear PTO running at 540 rpm.
Source · Traktorenlexikon, “Fendt Dieselross F22”
How much horsepower does a Dieselross F22 have?
The only figure for the Dieselross F22 is 21 hp (16 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fendt Dieselross F22”
What engine is in a Dieselross F22?
A Dieselross F22 has a Deutz F2M 414, a 2-cylinder 2.20 L diesel engine.
| Make & model | Deutz F2M 414 |
|---|---|
| Cylinders | 2, liquid-cooledSource 2 |
| Displacement | 134.1 ci · 2.20 L |
Source · Traktorenlexikon, “Fahr F 22”
How much will a Dieselross F22 lift?
Hydraulic and PTO specifications for the Dieselross F22 are below.
| Rear PTO | Independent, 540 rpmEngages under load |
|---|
Source · Traktorenlexikon, “Fendt Dieselross F22”
What transmission does a Dieselross F22 have?
Transmission specifications for the Dieselross F22 are below.
| Clutch | Single-plate clutch from Fichtel & Sachs type K 16 Z |
|---|---|
| Brakes | Foot-operated internal shoe drum brake acting on rear wheels |
| Top speed | 11.2 mph · 18 km/h |
Source · Traktorenlexikon, “Fendt Dieselross F22”
How much does a Dieselross F22 weigh?
A Dieselross F22 weighs 3,428 lb (1,555 kg) unladen.
| Unladen weight | 3,428 lb · 1,555 kg |
|---|---|
| Wheelbase | 66.9 in · 1,700 mm |
| Length | 103.9 in · 2,640 mm |
| Width | 61.0 in · 1,550 mm |
| Height | 65.4 in · 1,660 mm |
| Ground clearance | 13.8 in · 350 mm |
| Front track | 50.0–57.6 in · 1,270–1,462 mm |
| Rear track | 50.0–57.6 in · 1,270–1,462 mm |
Source · Traktorenlexikon, “Fendt Dieselross F22”
Which tractors compare with a Dieselross F22?
Within 10% of its 21 hp of claimed engine power, the same type, and first built within 15 years of it.
- HELA D 3821.6 hp engine, claimed · 1938Side by side with the Dieselross F22 →
- Josef Krümpel K 2221.6 hp engine, claimed · 1938–1950Side by side with the Dieselross F22 →
- HELA D 3921.6 hp engine, claimed · 1939Side by side with the Dieselross F22 →
- HELA D 4021.6 hp engine, claimed · 1939–1943Side by side with the Dieselross F22 →
- J.I. Case Modell-S21.6 hp engine, claimed · 1941–1952Side by side with the Dieselross F22 →
- Lanz D 651121.6 hp engine, claimed · 1931–1935Side by side with the Dieselross F22 →
Common questions about the Fendt Dieselross F22
Is a Dieselross F22 two-wheel drive or four-wheel drive?
The Fendt Dieselross F22 is two-wheel drive (2WD).
What PTO does a Dieselross F22 have?
A Dieselross F22 has a independent 540 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Fahr F 22”; and Traktorenlexikon, “Fendt Dieselross F22”.
