- Rigid chassis
- WhichTractor size: Standard-size
- Not independently tested
- 1992–1997
- 15,091 built
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

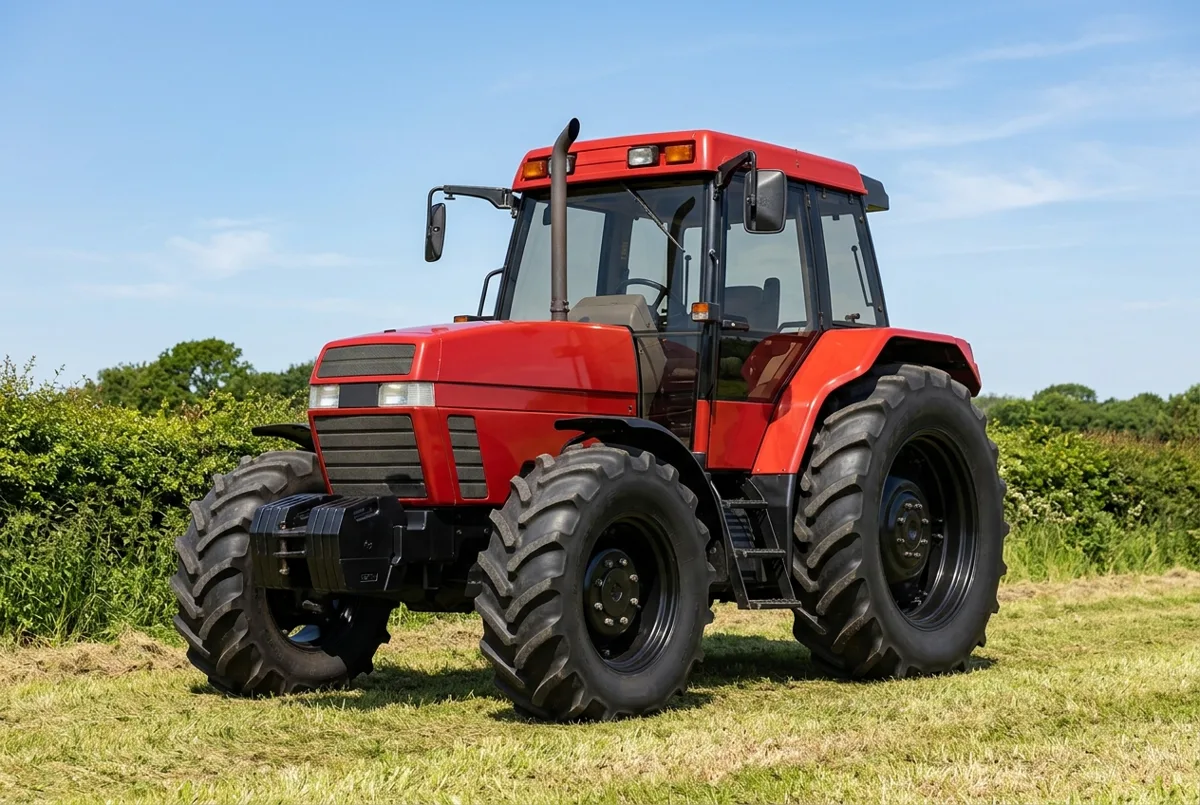

Case-IH 5150 Maxxum Full specifications
CUMMINS NCE 6 T-590 six-cylinder diesel. The manufacturer claimed 123.2 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
123.2 hp
91.9 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Case-IH 5150”, claimed
- Weight
- 11,817 lb
- 3-point lift
- 10,141 lb
- Hyd. flow
- 19.8 gpm
- Top speed
- 18.6–24.9 mph
Case-IH 5150 Maxxum specs: key facts
The Case-IH 5150 Maxxum was built from 1992 to 1997.
The Case-IH 5150 Maxxum has a claimed engine power (gross or net not stated) of 91.9 kW (123.2 hp); it has no measured PTO figure.
The Case-IH 5150 Maxxum is four-wheel drive (4WD).
The Case-IH 5150 Maxxum has a CUMMINS NCE 6 T-590 engine, a 6-cylinder 5.88 L diesel unit.Source 1
The Case-IH 5150 Maxxum weighs 5,360 kg (11,817 lb) unladen.
The Case-IH 5150 Maxxum has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Case-IH 5150 Maxxum lifts 4,600 kg (10,141 lb) at the lower-link ends.
The hydraulic pump of the Case-IH 5150 Maxxum delivers 75.0 L/min (19.8 gpm).
Source · Traktorenlexikon, “Case-IH 5150”
How much horsepower does a 5150 Maxxum have?
The only figure for the 5150 Maxxum is 123.2 hp (91.9 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Case-IH 5150”
What engine is in a 5150 Maxxum?
A 5150 Maxxum has a CUMMINS NCE 6 T-590, a 6-cylinder 5.88 L diesel engine.
| Make & model | CUMMINS NCE 6 T-590Source 1 |
|---|---|
| Cylinders | 6, liquid-cooledSource 1 |
| Displacement | 359.0 ci · 5.88 LSource 1 |
| Max torque | 369 lb·ft · 500 N·m @ 1,207 rpm |
| Injection | direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Case-IH 5150”
How much will a 5150 Maxxum lift, and what is its hydraulic flow?
A 5150 Maxxum lifts 10,141 lb (4,600 kg) at the lower-link ends of its Category 2 three-point hitch.
| Pump flow | 19.8 gpm · 75.0 L/min |
|---|---|
| Pressure | 3,191 psi · 220 bar |
| Hitch category | Category 2 |
| Lift at ends | 10,141 lb · 4,600 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 1,874 engine rpmEngages under load |
Source · Traktorenlexikon, “Case-IH 5150”
What transmission does a 5150 Maxxum have?
Transmission specifications for the 5150 Maxxum are below.
| Clutch | running in oil bath multi-plate clutch |
|---|---|
| Brakes | pedal-operated hydraulic full disc brake, designed as single wheel brake |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Case-IH 5150”
How much does a 5150 Maxxum weigh?
A 5150 Maxxum weighs 11,817 lb (5,360 kg) unladen.
| Unladen weight | 11,817 lb · 5,360 kg |
|---|---|
| Maximum permissible mass | 17,196 lb · 7,800 kg |
| Maximum front axle load | 6,834 lb · 3,100 kg |
| Maximum rear axle load | 13,228 lb · 6,000 kg |
| Wheelbase | 101.8 in · 2,585 mm |
| Length | 175.3 in · 4,453 mm |
| Width | 86.8 in · 2,204 mm |
| Height | 108.9 in · 2,765 mm |
| Ground clearance | 17.0 in · 431 mm |
| Front track | 60.2–87.8 in · 1,530–2,230 mm |
| Rear track | 64.2–87.8 in · 1,630–2,230 mm |
| Turning radius, braked | 14.8 ft · 4.50 m |
Source · Traktorenlexikon, “Case-IH 5150”
Which tractors compare with a 5150 Maxxum?
Within 10% of its 111.6 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- Massey Ferguson MF 3125 (A)111.3 hp PTO, claimed · 1990–1995Side by side with the 5150 Maxxum →
- VALMET Mega 8150 HiTech111.8 hp PTO, claimed · 1998–2004Side by side with the 5150 Maxxum →
- Fiat 1280 (DT)111.3 hp PTO, claimed · 1979–1984Side by side with the 5150 Maxxum →
- Fiat M 115112.1 hp PTO, claimed · 1996–1999Side by side with the 5150 Maxxum →
- Massey Ferguson MF 1114111.0 hp PTO, claimed · 1978–1990Side by side with the 5150 Maxxum →
- Massey Ferguson MF 6190 (A)112.4 hp PTO, claimed · 1996–1999Side by side with the 5150 Maxxum →
Everything else people ask
Is a 5150 Maxxum two-wheel drive or four-wheel drive?
The Case-IH 5150 Maxxum is four-wheel drive (4WD).
What PTO does a 5150 Maxxum have?
A 5150 Maxxum has a independent 540/1000 rpm rear PTO.
Where this page comes from
Compiled from Traktorenlexikon, “Case-IH 5140”; and Traktorenlexikon, “Case-IH 5150”.
