- Rigid chassis
- WhichTractor size: Compact
- Not independently tested
- 1990–1997
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

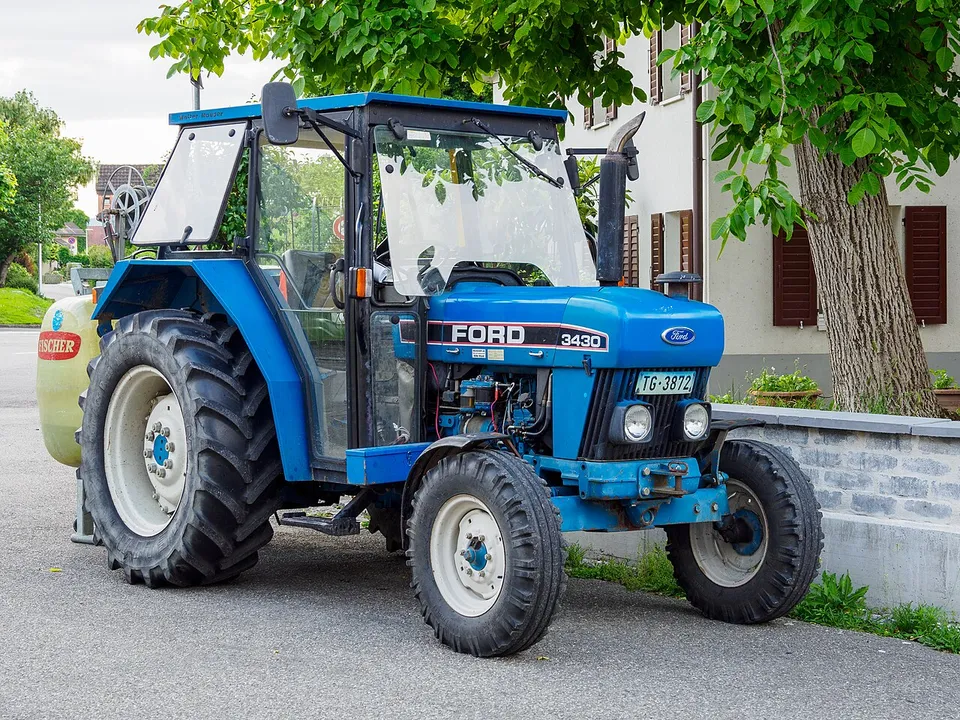

Ford 3430 Full specifications
Ford B 192 three-cylinder diesel.
- Weight
- 6,045 lb
- 3-point lift
- 3,748 lb
- Hyd. flow
- 8.2 gpm
- Top speed
- 18.6 mph
Ford 3430 specs: key facts
The Ford 3430 was built from 1990 to 1997.
The Ford 3430 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
The Ford 3430 has a Ford B 192 engine, a 3-cylinder 3.14 L diesel unit.
The Ford 3430 weighs 2,742 kg (6,045 lb) unladen.
The Ford 3430 has an independent rear PTO running at 540 rpm.
The three-point hitch of the Ford 3430 lifts 1,700 kg (3,748 lb) at the lower-link ends.
The hydraulic pump of the Ford 3430 delivers 31.0 L/min (8.2 gpm).
Source · Traktorenlexikon, “Ford 3430”
How much horsepower does a 3430 have?
No sourced power figure for the 3430 is on record yet.
What engine is in a 3430?
A 3430 has a Ford B 192, a 3-cylinder 3.14 L diesel engine.
| Make & model | Ford B 192 |
|---|---|
| Cylinders | 3, liquid-cooled |
| Displacement | 191.7 ci · 3.14 L |
| Max torque | 125 lb·ft · 170 N·m @ 1,200 rpm |
Source · Traktorenlexikon, “Ford 3430”
How much will a 3430 lift, and what is its hydraulic flow?
A 3430 lifts 3,748 lb (1,700 kg) at the lower-link ends.
| System | Open centre |
|---|---|
| Pump flow | 8.2 gpm · 31.0 L/min |
| Pressure | 1,378–1,450 psi · 95–100 bar |
| Lift at ends | 3,748 lb · 1,700 kg |
| Rear PTO | Independent, engine-driven, 540 rpm @ 1,756 engine rpmEngages under load |
| PTO shaft | 1 3/8"- 6 splines (Form-1) |
Source · Traktorenlexikon, “Ford 3430”
What transmission does a 3430 have?
Transmission specifications for the 3430 are below.
| Clutch | Pedal-operated dry AP single-plate clutch |
|---|---|
| Brakes | Pedal-operated wet GIRLING multi-disc brake acting on rear wheels |
| Steering | Hydrostatic FORD-NEW HOLLAND steering with double-acting steering cylinder |
| Top speed | 18.6 mph · 30 km/h |
Source · Traktorenlexikon, “Ford 3430”
How much does a 3430 weigh?
A 3430 weighs 6,045 lb (2,742 kg) unladen.
| Unladen weight | 6,045 lb · 2,742 kgtwo-wheel-drive version |
|---|---|
| Wheelbase | 84.5 in · 2,146 mmtwo-wheel-drive version |
| Length | 138.8 in · 3,525 mmtwo-wheel-drive version |
| Width | 69.7 in · 1,771 mm |
| Height | 96.5 in · 2,451 mm |
| Ground clearance | 11.8 in · 300 mm |
| Front track | 50.9–79.0 in · 1,293–2,007 mmtwo-wheel-drive version |
| Rear track | 55.8–79.8 in · 1,418–2,026 mm |
Source · Traktorenlexikon, “Ford 3430”
Which tractors compare with a 3430?
Within 10% of its 37.7 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- Fiat 45-66 (DT)37.5 hp PTO, claimed · 1992–1996Side by side with the 3430 →
- Fiat 45-66 V (DT/V)37.5 hp PTO, claimed · 1985–1992Side by side with the 3430 →
- New Holland 3435 (A)37.5 hp PTO, claimed · 1996–1999Side by side with the 3430 →
- Massey Ferguson MF 340 (A)37.51 hp PTO, claimed · 1988–1994Side by side with the 3430 →
- Massey Ferguson MF 24037.2 hp PTO, claimed · 1982–1985Side by side with the 3430 →
- IMR-RAKOVICA R-4737.0 hp PTO, claimed · 1984–1994Side by side with the 3430 →
Everything else people ask
Is a 3430 two-wheel drive or four-wheel drive?
The Ford 3430 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
What PTO does a 3430 have?
A 3430 has a independent 540 rpm rear PTO on a 1 3/8"- 6 splines (Form-1) shaft.
